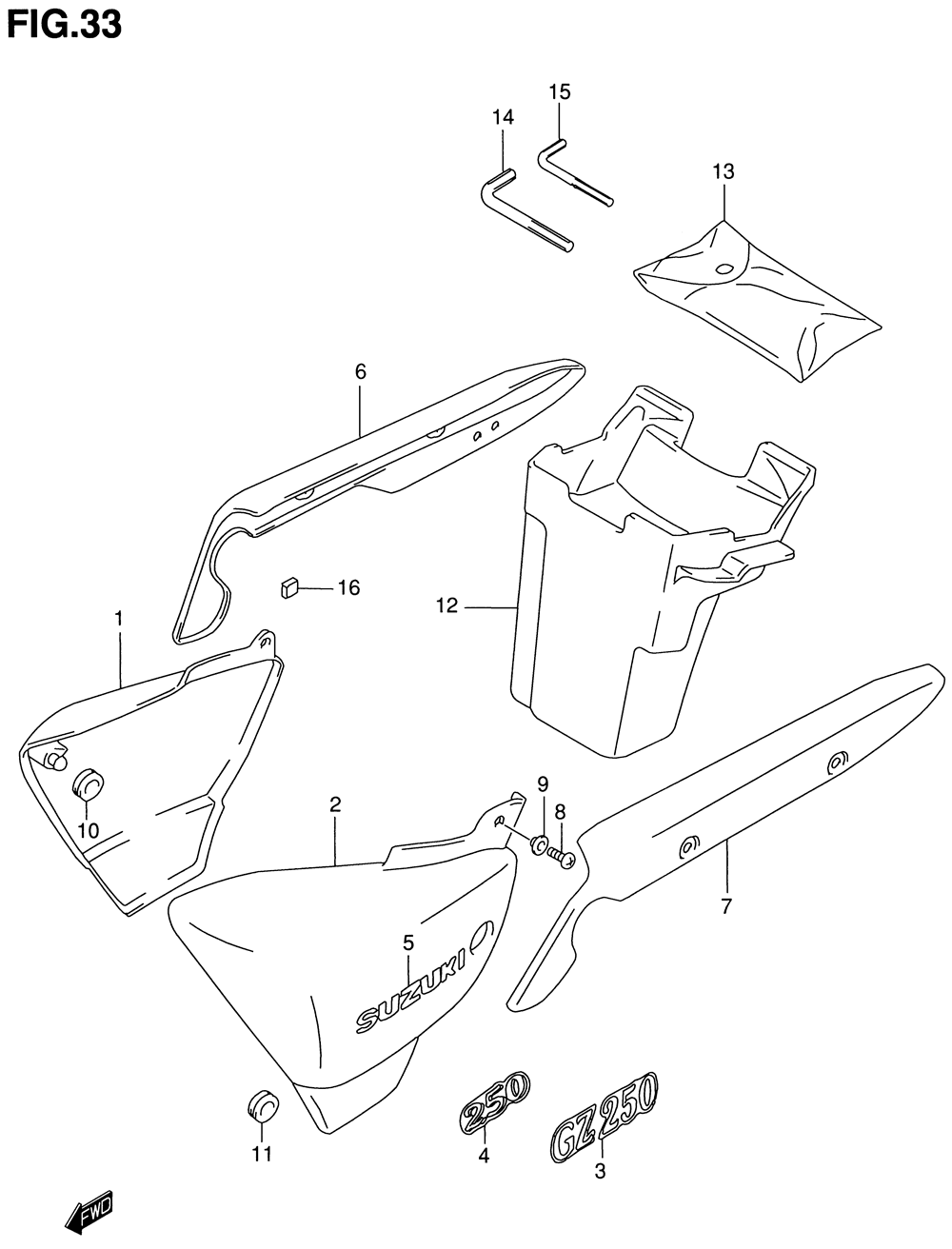

Frame cover (model x)

Suzuki GZ250

Frame cover (model x)

#

oem код

название

цена

1-1

47111-12F00-Y98

Cover, Frame Rh (green)

Cover, Frame Rh (green)

1-2

47111-12F00-Y0W

Cover, Frame Rh (orange)

Cover, Frame Rh (orange)

2-1

47211-12F00-Y98

Cover, Frame Lh (green)

Cover, Frame Lh (green)

2-2

47211-12F00-Y0W

Cover, Frame Lh (orange)

Cover, Frame Lh (orange)

3-1

68131-12F20-M7F

Emblem, Frame Cover

Emblem, Frame Cover

3-2

68131-12F20-M7E

Emblem, Frame Cover

Emblem, Frame Cover

6

Cover, Frame Rear Rh

Cover, Frame Rear Rh

7

Cover, Frame Rear Lh

Cover, Frame Rear Lh

8

Винт

Винт

9

Шайба

Шайба

10

Cushion, Brace

Cushion, Brace

11

Подушка

Подушка

12

92211C12F01J000

Body, Luggage Box

Body, Luggage Box

13

Комплект инструмента

Комплект инструмента

14

Hexagon Spanner, 6

Hexagon Spanner, 6

15

Hexagon Spanner, 4

Hexagon Spanner, 4

16

Cushion (80x20x10)

Cushion (80x20x10)
