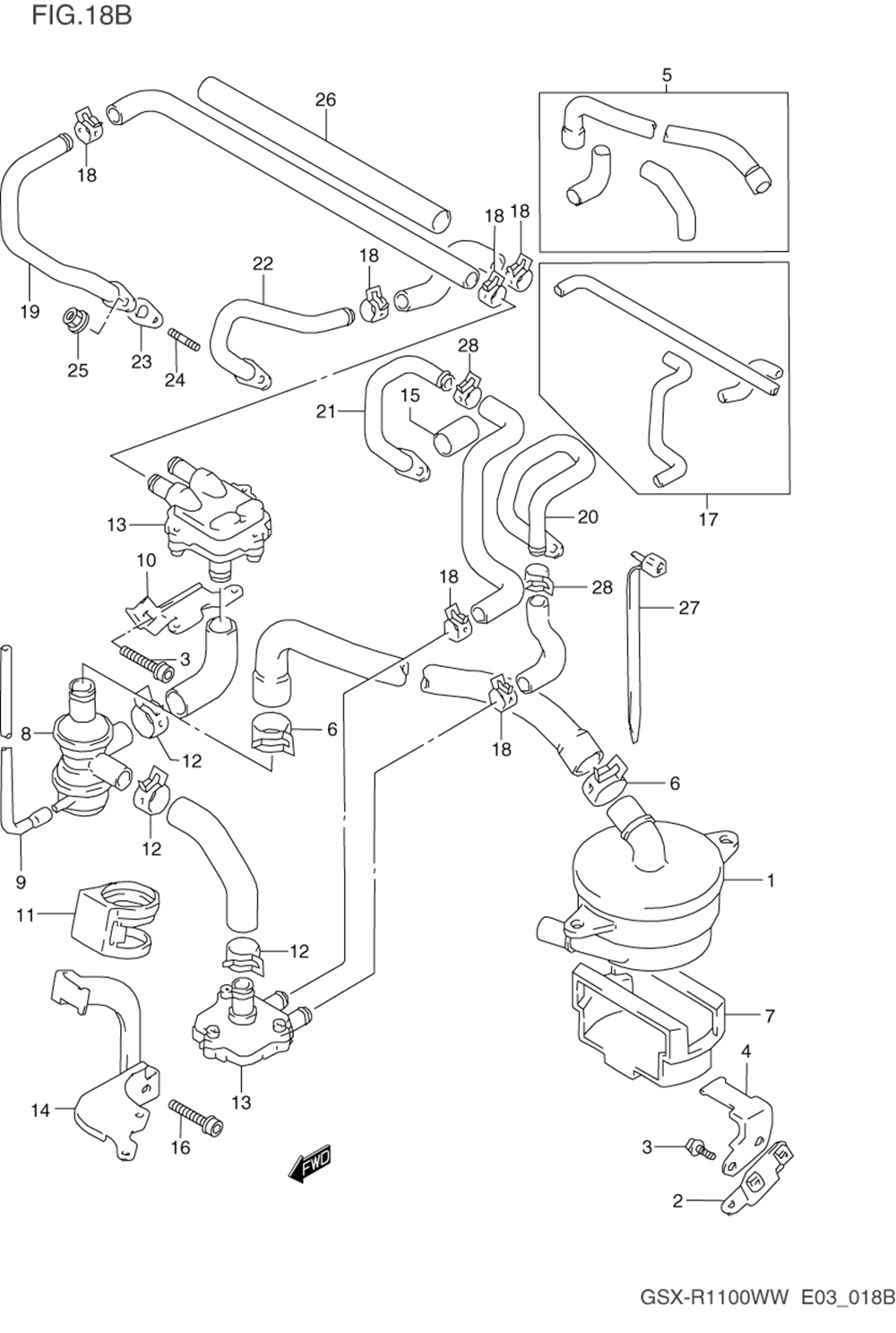

Second air (california only)

Suzuki GSX-R1100W

Second air (california only)

#

oem код

название

цена

1-1

Cleaner Assy, 2nd Air

Cleaner Assy, 2nd Air

2

3-1

Болт

Болт

4

5-1

5-2

Hose Set, 2nd Air No.2

Hose Set, 2nd Air No.2

6-1

6-2

Зажим

Зажим

7

8

Valve Assy, Air Switching

Valve Assy, Air Switching

9

09359-45852-600

10

Bracket, 2nd Air Valve

Bracket, 2nd Air Valve

11

12-1

12-2

Зажим

Зажим

12-3

Clip, Tank

Clip, Tank

13

14-1

Bracket, Reed Valve Lh

Bracket, Reed Valve Lh

15-1

Protector, Reed Valve

Protector, Reed Valve

15-2

16-1

Болт

Болт

17

18-1

Зажим

Зажим

19-1

19-2

Pipe, 2nd Air No.4

Pipe, 2nd Air No.4

20

Pipe, 2nd Air No.1

Pipe, 2nd Air No.1

21

Pipe, 2nd Air No.2

Pipe, 2nd Air No.2

22

Pipe, 2nd Air No.3

Pipe, 2nd Air No.3

23

Gasket, 2nd Air Pipe

Gasket, 2nd Air Pipe

24-1

Шпилька

Шпилька

25-1

Гайка

Гайка

26-1

Protector, Reed Valve Hose

Protector, Reed Valve Hose

26-2

27

Стяжка L-165

Стяжка L-165
