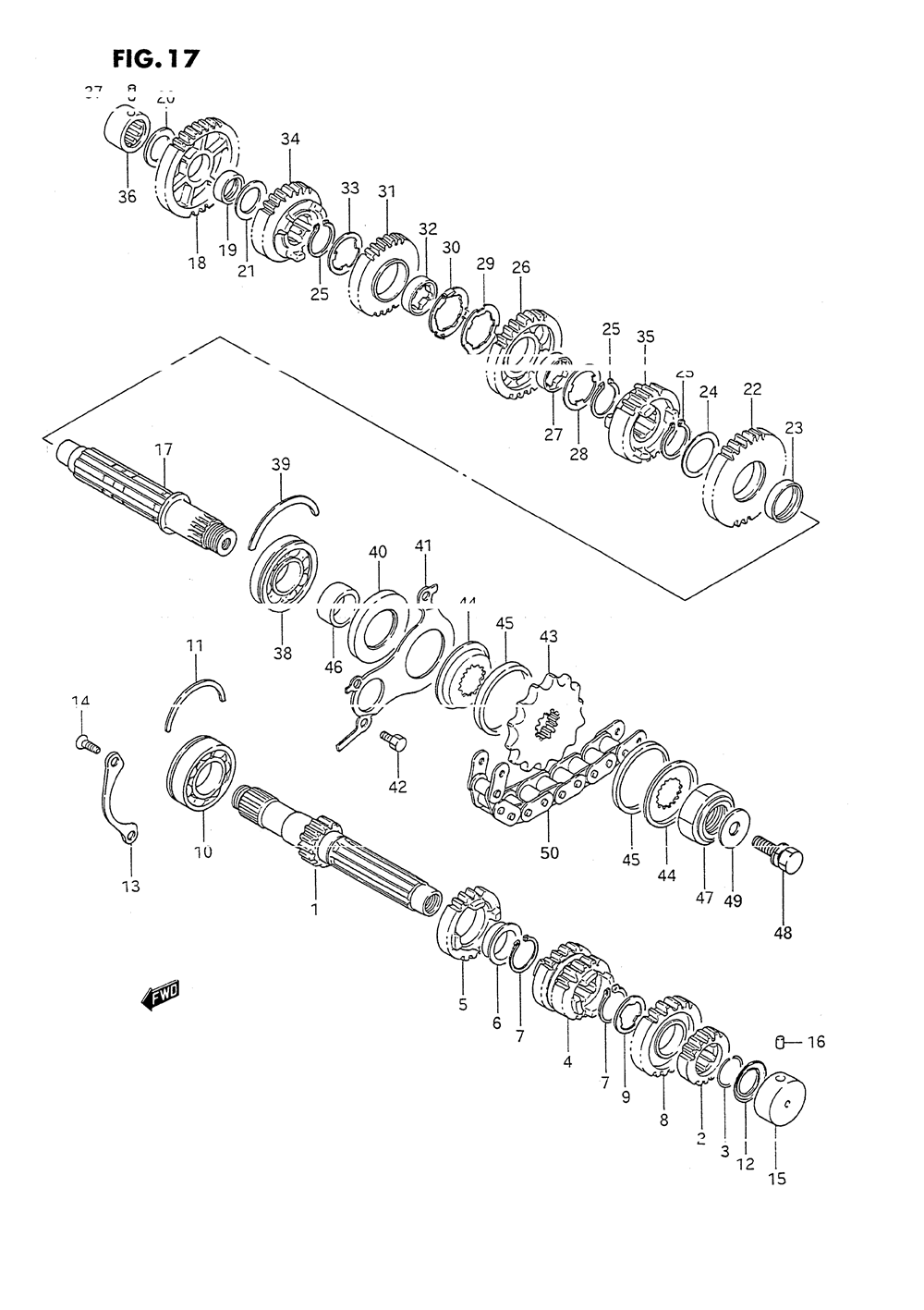

ТРАНСМИССИЯ

Suzuki GSX600F KATANA

ТРАНСМИССИЯ

#

oem код

название

цена

1-1

Shaft, Cntr (nt:12)

Shaft, Cntr (nt:12)

1-2

Countershaft (nt:12)

Countershaft (nt:12)

2-1

Gear, 2nd Drive (nt:16)

Gear, 2nd Drive (nt:16)

3-1

Ring, 2nd Drive

Ring, 2nd Drive

3-2

Circlip, 2nd Drive

Circlip, 2nd Drive

4-1

Gear, 3/4th Drive (nt:17/20)

Gear, 3/4th Drive (nt:17/20)

5

Gear, 5th Drive (nt:22)

Gear, 5th Drive (nt:22)

6

Bush, 2nd Driven

Bush, 2nd Driven

7

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

8-1

Gear, 6th Drive (nt:21)

Gear, 6th Drive (nt:21)

9

Шайба

Шайба

10-1

Bearing, Lh (25x62x17)

Bearing, Lh (25x62x17)

10-2

Bearing, Lh

Bearing, Lh

11-1

C Ring, Cntr Shaft Brg Rh

C Ring, Cntr Shaft Brg Rh

12

Сальник

Сальник

13

Retainer, Cntr Shaft

Retainer, Cntr Shaft

14-1

Винт

Винт

14-2

Винт

Винт

15

Bearing, Cntr Shaft, Lh

Bearing, Cntr Shaft, Lh

16

Штифт

Штифт

17-1

Driveshaft

Driveshaft

17-2

Driveshaft

Driveshaft

18-1

Gear, 1st Driven (nt:37)

Gear, 1st Driven (nt:37)

19

Bush (22x27x0.5)

Bush (22x27x0.5)

20

Шайба

Шайба

21

Washer, Lh

Washer, Lh

22-1

Gear, 2nd Driven (nt:33)

Gear, 2nd Driven (nt:33)

22-2

Gear, 2nd Driven (nt:33)

Gear, 2nd Driven (nt:33)

23-1

Втулка

Втулка

23-2

Bush, 2nd Driven Gear

Bush, 2nd Driven Gear

24

.washer, Rr Final Dr Gr

.washer, Rr Final Dr Gr

25

Circlip Idle Drive Gear

Circlip Idle Drive Gear

26-1

Gear, 3rd Driven (nt:28)

Gear, 3rd Driven (nt:28)

26-2

Gear, 3re Driven (nt:28)

Gear, 3re Driven (nt:28)

27

Bush, 3dr Driven Gear

Bush, 3dr Driven Gear

28

Washer (28.1x38x1.0)

Washer (28.1x38x1.0)

29

Lock Washer, Lh

Lock Washer, Lh

30

Lock Washer, Rh

Lock Washer, Rh

31-1

Gear, 4th Driven (nt:28)

Gear, 4th Driven (nt:28)

34

Gear, 5th Driven (nt:27)

Gear, 5th Driven (nt:27)

35-1

Gear, 6th Driven (nt:23)

Gear, 6th Driven (nt:23)

35-2

Gear, 6th Driven (nt:23)

Gear, 6th Driven (nt:23)

35-3

Gear, 6th Driven (nt:23)

Gear, 6th Driven (nt:23)

36

Bearing, Drive Shaft Rh

Bearing, Drive Shaft Rh

37

Pin, Drive Shaft Brg Rh

Pin, Drive Shaft Brg Rh

40

Seal, Drive Shaft Oil

Seal, Drive Shaft Oil

41

Пластина

Пластина

42-1

Болт

Болт

42-2

Болт

Болт

43

Sprocket, Engine (nt:14)

Sprocket, Engine (nt:14)

44

Держатель

Держатель

45

Damper, Engine Sprocket

Damper, Engine Sprocket

46

Spacer (25x34x16.1)

Spacer (25x34x16.1)

47

Nut, Engine Sprocket

Nut, Engine Sprocket

48-1

Болт

Болт

48-2

Болт

Болт

49

Шайба

Шайба

50

27600-19C00-112

Chain, Drive (did50va2)

Chain, Drive (did50va2)
