Carburetor (model p/r/s/t) Оригинальные запчасти для мотоциклов Suzuki RMX250 (1995)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

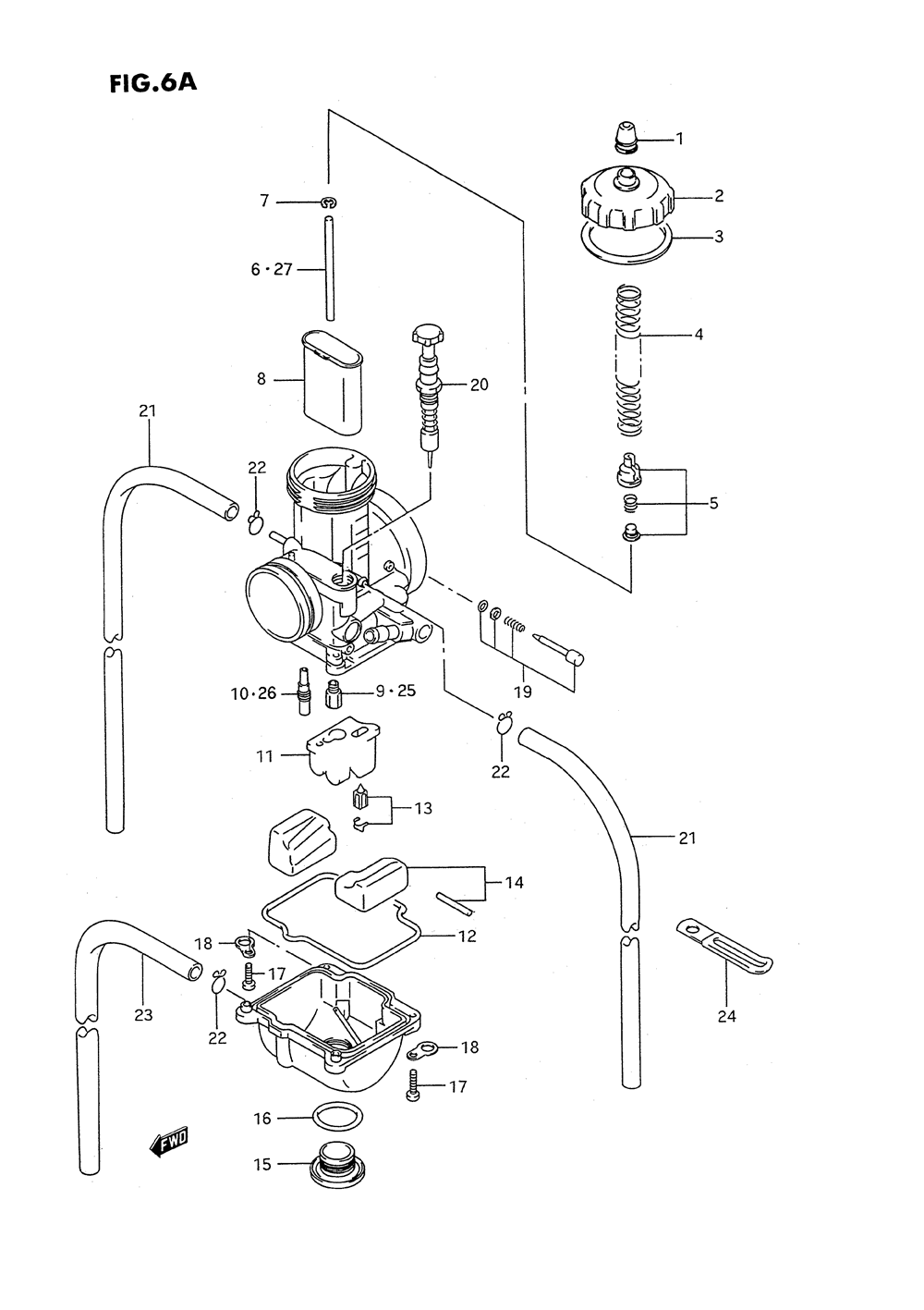

Carburetor (model p/r/s/t)

Suzuki RMX250

Carburetor (model p/r/s/t)

#

oem код

название

цена

Карбюратор

Карбюратор

1

Колпачек

Колпачек

2

.cap, Top

.cap, Top

3

.gasket, Top Cap

.gasket, Top Cap

4

Пружина

Пружина

5

.holder Set, Cable

.holder Set, Cable

6

.needle, Jet

.needle, Jet

7

.clip, Needle

.clip, Needle

8

.valve, Piston

.valve, Piston

9-1

Jet, Main (150)

Jet, Main (150)

9-2

Jet, Main (165)

Jet, Main (165)

10

Jet, Pilot (60)

Jet, Pilot (60)

11

.holder

.holder

12

.gasket, Float Chamber

.gasket, Float Chamber

13

.valve Set, Float

.valve Set, Float

14

.float Set

.float Set

15

.bolt, Drain

.bolt, Drain

16

Кольцо

Кольцо

17

Винт

Винт

18

.binder

.binder

19

.screw Set, Air

.screw Set, Air

20

.plunger Assy

.plunger Assy

21

.hose, 4x7x620

.hose, 4x7x620

22

Зажим

Зажим

23

09351-35653-600

.hose (3.5x6.5x600)

.hose (3.5x6.5x600)

24-1

Зажим

Зажим

25-1

Jet, Main (145)

Jet, Main (145)

25-2

Jet, Main (148)

Jet, Main (148)

25-4

Jet, Main (152)

Jet, Main (152)

25-5

Jet, Main (155)

Jet, Main (155)

25-6

Jet, Main (170)

Jet, Main (170)

25-7

Jet, Main (172)

Jet, Main (172)

25-8

Jet, Main (175)

Jet, Main (175)

25-9

Jet, Main (178)

Jet, Main (178)

25-10

Jet, Main (180)

Jet, Main (180)

25-11

Jet, Main (185)

Jet, Main (185)

25-12

Jet, Main (190)

Jet, Main (190)

25-13

Jet, Main (195)

Jet, Main (195)

25-14

Jet, Main (200)

Jet, Main (200)

26-1

Jet, Pilot (50)

Jet, Pilot (50)

26-2

Jet, Pilot (55)

Jet, Pilot (55)

26-4

Jet, Slow (65)

Jet, Slow (65)

26-5

Jet, Slow (70)

Jet, Slow (70)

27-1

Jet Needle Set

Jet Needle Set

27-2

Jet Needle Set

Jet Needle Set
