ТРАНСМИССИЯ Оригинальные запчасти для мотоциклов Suzuki GSX-R750W (1994)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

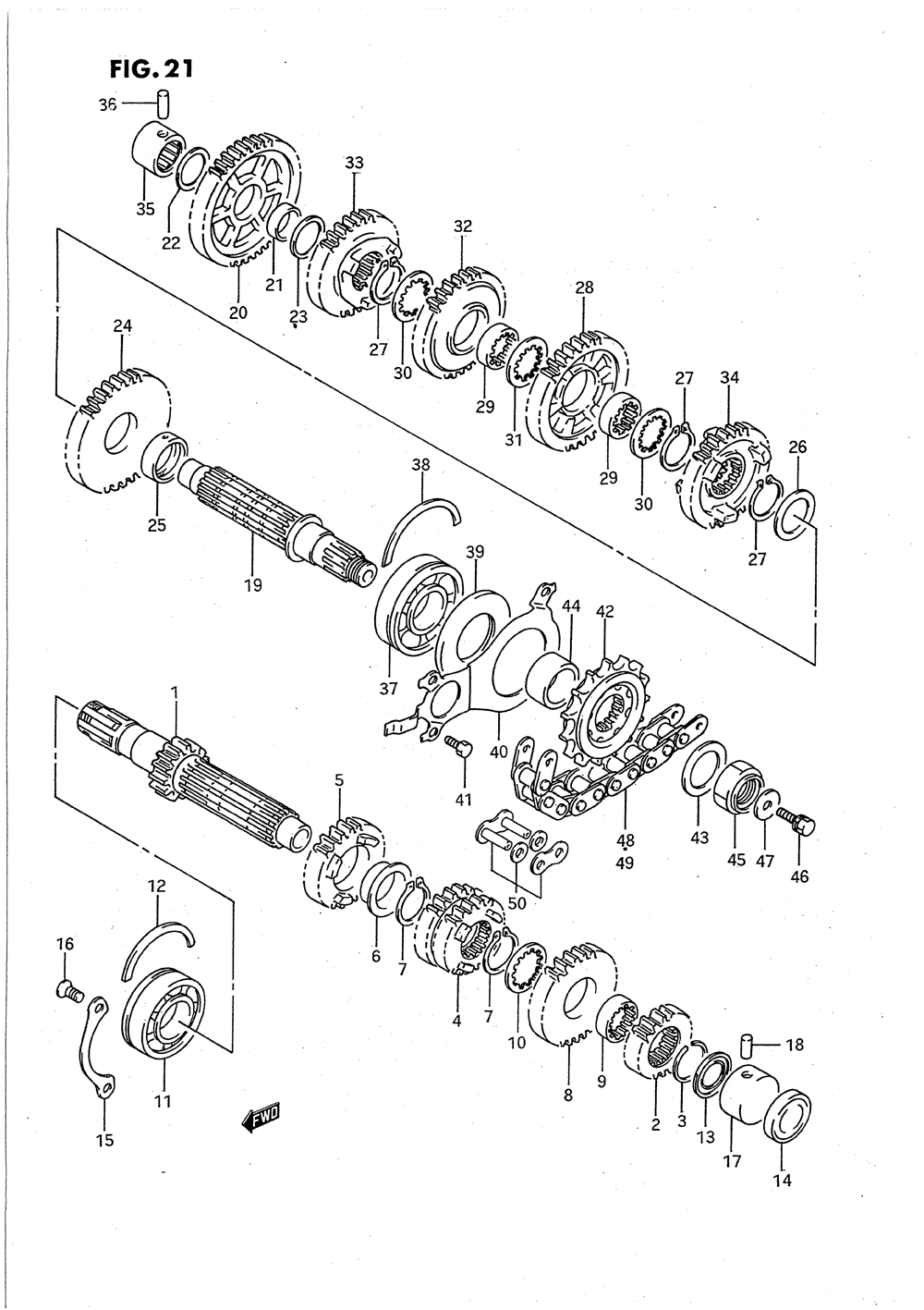

ТРАНСМИССИЯ

Suzuki GSX-R750W

ТРАНСМИССИЯ

#

oem код

название

цена

1-1

Countershaft (nt:15)

Countershaft (nt:15)

2

Gear, 2nd Drive (nt:17)

Gear, 2nd Drive (nt:17)

3

Circlip, 2nd Drive

Circlip, 2nd Drive

4

Gear, 3/4th Drive (nt:20/21)

Gear, 3/4th Drive (nt:20/21)

5-1

Gear, 5th Drive

Gear, 5th Drive

6

Bush, 3rd Drive Gear

Bush, 3rd Drive Gear

7

Circlip, 2nd Driven

Circlip, 2nd Driven

8-1

Gear, 6th Drive (nt:25)

Gear, 6th Drive (nt:25)

9

Bush, 4th Driven Gear

Bush, 4th Driven Gear

10

Washer, 6th Drive

Washer, 6th Drive

11-1

Bearing, Lh (25x62x17)

Bearing, Lh (25x62x17)

12

C Ring, Cntr Shaft Brg Rh

C Ring, Cntr Shaft Brg Rh

13

Сальник

Сальник

14

Cap, Counter Shaft

Cap, Counter Shaft

15

Retainer, Cntr Shaft

Retainer, Cntr Shaft

16-1

Винт

Винт

16-2

Винт

Винт

17

Bearing, Lh

Bearing, Lh

18

Штифт

Штифт

19-1

Вал ведущий

Вал ведущий

20

Gear, 1st Driven (nt:43)

Gear, 1st Driven (nt:43)

21

Bush (22x27x0.5)

Bush (22x27x0.5)

22

Шайба

Шайба

23

Washer, Lh

Washer, Lh

24-1

Gear, 2nd Driven

Gear, 2nd Driven

24-2

Gear, 2nd Driven (nt:35)

Gear, 2nd Driven (nt:35)

25-1

Bush, 2nd Driven Gear

Bush, 2nd Driven Gear

26

.washer, Rr Final Dr Gr

.washer, Rr Final Dr Gr

28

Gear, 3rd Driven (nt:33)

Gear, 3rd Driven (nt:33)

29

Втулка

Втулка

31

Washer, 3rd & 4th Driven

Washer, 3rd & 4th Driven

32

Gear, 4th Driven

Gear, 4th Driven

33

Gear, 5th Driven (nt:29)

Gear, 5th Driven (nt:29)

34-1

Gear, 6th Driven (nt:28)

Gear, 6th Driven (nt:28)

34-2

Gear, 6th Driven (nt:28)

Gear, 6th Driven (nt:28)

35

Bearing, Drive Shaft Rh

Bearing, Drive Shaft Rh

36

Pin, Drive Shaft Brg Rh

Pin, Drive Shaft Brg Rh

37

Bearing, Drive Shaft, L

Bearing, Drive Shaft, L

38

C-ring, Drive Shaft Brg, L

C-ring, Drive Shaft Brg, L

39

Seal, Drive Shaft Oil

Seal, Drive Shaft Oil

40

Plate, Oil Seal

Plate, Oil Seal

41-1

Болт

Болт

41-2

Болт

Болт

42

Sprocket, Engine (nt:15)

Sprocket, Engine (nt:15)

43

Shim (25x36x1.5)

Shim (25x36x1.5)

44

Spacer (25x36x17.7)

Spacer (25x36x17.7)

45

Nut, Engine Sprocket

Nut, Engine Sprocket

46

Болт

Болт

47

Шайба

Шайба

48

27600-24F20-108

Chain Assy (rk50gsvz3, 108l)

Chain Assy (rk50gsvz3, 108l)

50

Joint Set, Chain

Joint Set, Chain
