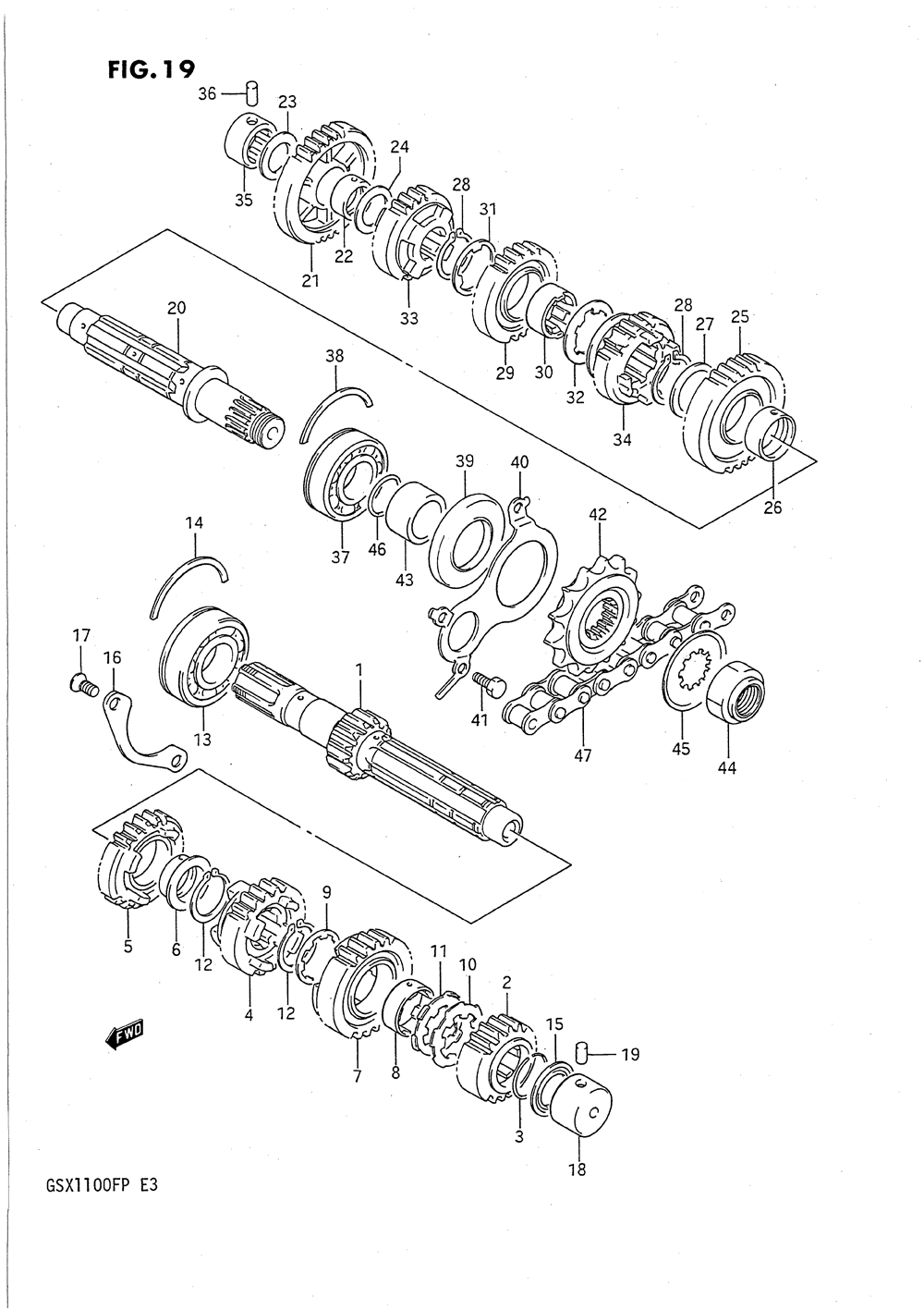

ТРАНСМИССИЯ Оригинальные запчасти для мотоциклов Suzuki GSX1100F (1993)

ТРАНСМИССИЯ

Suzuki GSX1100F

oem код

название

цена

1-1

24121-48B10

Countershaft (nt:13)

2-1

24221-48B10

Gear, 2nd Drive (nt:19)

Ring, 2nd Drive

Gear, 3rd Drive,

Gear, 4th Drive,

Bush, 2nd Driven

Gear, 5th Drive

Втулка

Washer, 3rd Driven

Lock Washer, 3rd Driven

09169-25001

Washer, 3rd Driven Lock

09380-25003

СТОПОРНОЕ КОЛЬЦО

09262-25105

Bearing, Lh (25x62x17)

09390-62012

C Ring, Cntr Shaft Brg Rh

Сальник

Retainer, Cntr Shaft

Винт

Bearing, Cntr Shaft, Lh

04221-07129

Штифт

24131-48B00

Driveshaft

21-1

24311-48B20

Gear, 1st Driven (nt:31)

24312-02F00

Bush, 1st Driven

08211-20341

Шайба

08211-22341

Washer, Lh

25-1

24321-48B10

Gear, 2nd Driven (nt:31) (~e.no.107046->24321-48b02w/24351-48b03)

09300-28002

Bush, 2nd Driven

08211-28361

Шайба

08331-3128A

Circlip Idle Drive Gear

29-1

Gear, 3rd Driven

Втулка

Washer (28.1x38x1.0)

Washer, Lh (t:2)

Gear, 4th Driven

34-1

24351-48B06

Gear, 5th Driven (nt:21) (~e.no.107046->24351-48b03w/24321-48b02)

09263-20040

Bearing, Drive Shaft Rh

04221-07209

Pin, Drive Shaft Brg Rh

09262-25103

Bearing, Lh

09283-34005

Seal, Drive Shaft Oil

24751-27A01

Пластина

01500-06107

Болт

27510-48B00

Sprocket, Engine (nt:15)

Spacer (25x34x19.7)

Nut, Engine Sprocket

Washer (25x40x1.4)

.o Ring (d:1.0, Id:24.5)

47-1

27600-40C20-118

Chain, Drive (rk532gsv2x118le

47-2

27600-48B10-122

Chain, Drive (did532zlvx122le
