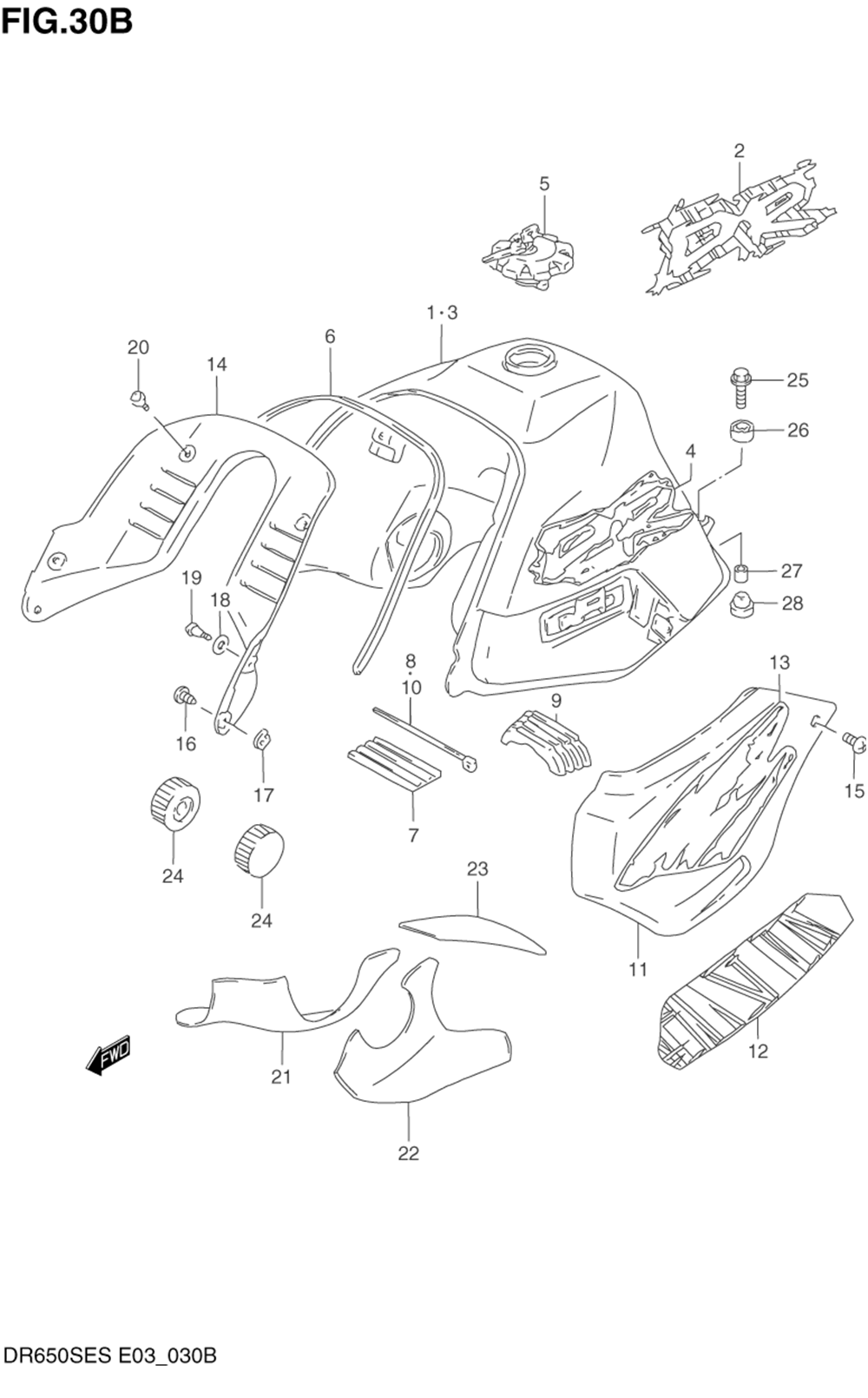

Fuel tank (model r/s)

Suzuki DR650SE

Fuel tank (model r/s)

#

oem код

название

цена

1-1

44100-12E90-30H

Tank Assy, Fuel

Tank Assy, Fuel

1-2

44100-12EA0-30H

Tank Assy, Fuel (white)

Tank Assy, Fuel (white)

2

68120-12E00-1WN

3-1

44100-12EE0-30H

Tank Assy, Fuel

Tank Assy, Fuel

3-2

44100-12EF0-30H

Tank Assy, Fuel (white)

Tank Assy, Fuel (white)

4

68120-14E00-D1R

.emblem Set

.emblem Set

5-1

Cap Set, Fuel Tank

Cap Set, Fuel Tank

5-2

Cap Set, Fuel Tank

Cap Set, Fuel Tank

6

.molding

.molding

7

Cushion, Fuel Tank Upper

Cushion, Fuel Tank Upper

8

.clamp

.clamp

9

Cushion, Upper Rear

Cushion, Upper Rear

10

Зажим

Зажим

11-1

44171-12E10-30H

Cover, Fuel Tank Rh (white)

Cover, Fuel Tank Rh (white)

11-2

44181-12E10-30H

Cover, Fuel Tank Lh (white)

Cover, Fuel Tank Lh (white)

12-1

68121-12E20-C5T

Tape, Tank Cover Rh

Tape, Tank Cover Rh

12-2

68122-12E20-C5T

Tape, Tank Cover Lh

Tape, Tank Cover Lh

13-1

68121-12E30-D1R

Tape, Tank Cover Rh

Tape, Tank Cover Rh

13-2

68122-12E30-D1R

Tape, Tank Cover Lh

Tape, Tank Cover Lh

14

Крышка

Крышка

15

Винт

Винт

16

Screw, Inner Cover

Screw, Inner Cover

17

Гайка

Гайка

18

Шайба

Шайба

19

Screw, Front Center

Screw, Front Center

20

Винт

Винт

21

22

23

24

Подушка, передняя

Подушка, передняя

25-1

Болт

Болт

25-2

Болт

Болт

26

Cushion, Upper

Cushion, Upper

27

Проставка

Проставка

28

Cushion, Lower

Cushion, Lower
