ТРАНСМИССИЯ Оригинальные запчасти для мотоциклов Suzuki DR650SE (1992)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

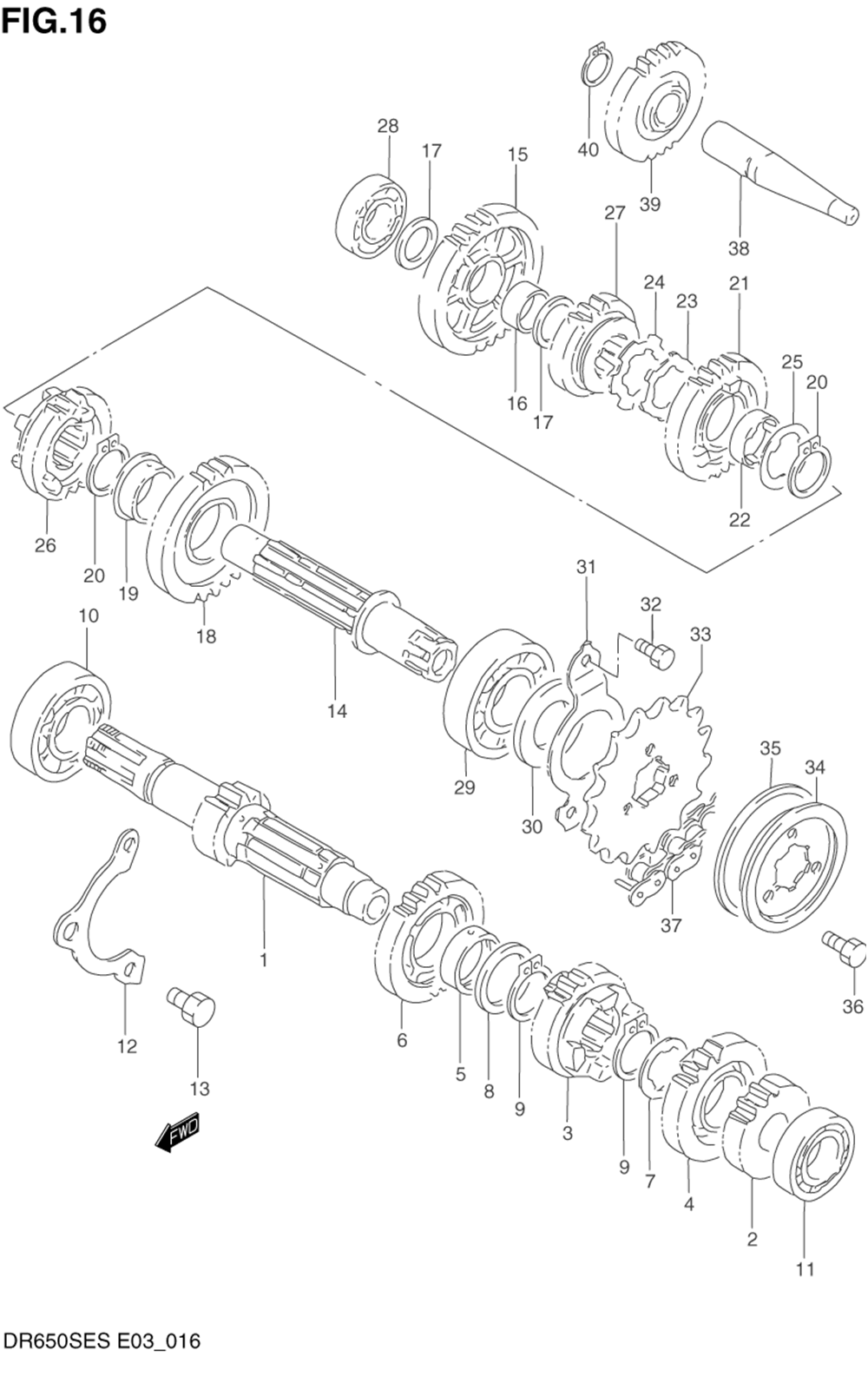

ТРАНСМИССИЯ

Suzuki DR650SE

ТРАНСМИССИЯ

#

oem код

название

цена

1

.countershaft (nt:12)

.countershaft (nt:12)

2

Gear, 2nd Drive (nt:16)

Gear, 2nd Drive (nt:16)

3

Gear, 3rd Drive (nt:19)

Gear, 3rd Drive (nt:19)

4

Gear, 4th Drive (nt:21)

Gear, 4th Drive (nt:21)

5

Bush, 5th Drive

Bush, 5th Drive

6

.gear, 5th Drive (nt:23)

.gear, 5th Drive (nt:23)

7

Шайба

Шайба

8

Washer, 5th Drive

Washer, 5th Drive

9

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

10

Bearing, Rh (22x56x16)

Bearing, Rh (22x56x16)

11-1

Bearing, Cntr Shaft Lh

Bearing, Cntr Shaft Lh

12

Обойма подшипника

Обойма подшипника

13-1

Болт

Болт

14

Driveshaft

Driveshaft

15

Gear, 1st Driven (nt:29)

Gear, 1st Driven (nt:29)

16

Bush, 1st Driven

Bush, 1st Driven

17

Washer, Dr No.2 Rh/lh

Washer, Dr No.2 Rh/lh

18

Gear, 2nd Driven (nt:26)

Gear, 2nd Driven (nt:26)

19

Втулка

Втулка

21

Gear, 3rd Driven (nt:24)

Gear, 3rd Driven (nt:24)

22

Bush, 3rd, Driven

Bush, 3rd, Driven

23

Washer, 3rd Driven Lock

Washer, 3rd Driven Lock

24

Lock Washer, 3rd Driven

Lock Washer, 3rd Driven

25

Шайба

Шайба

26

Gear, 4th Driven (nt:21)

Gear, 4th Driven (nt:21)

27

Gear, 5th Driven (nt:19)

Gear, 5th Driven (nt:19)

28

Bearing, Rh (20x42x12)

Bearing, Rh (20x42x12)

29

Bearing, Rh (25x62x17)

Bearing, Rh (25x62x17)

30

Сальник

Сальник

31

Holder, Oil Seal

Holder, Oil Seal

32-1

Болт

Болт

33

Sprocket (nt:16)

Sprocket (nt:16)

34-1

Plate (yellow)

Plate (yellow)

35

Демпфер

Демпфер

36

Болт

Болт

37-1

27600-14A10-114

Цепь

Цепь

38

Shaft, Idle

Shaft, Idle

39

Gear (nt: 24)

Gear (nt: 24)

40

Circlip, Lh

Circlip, Lh
