ТРАНСМИССИЯ Оригинальные запчасти для мотоциклов Suzuki GSX750F KATANA (1992)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

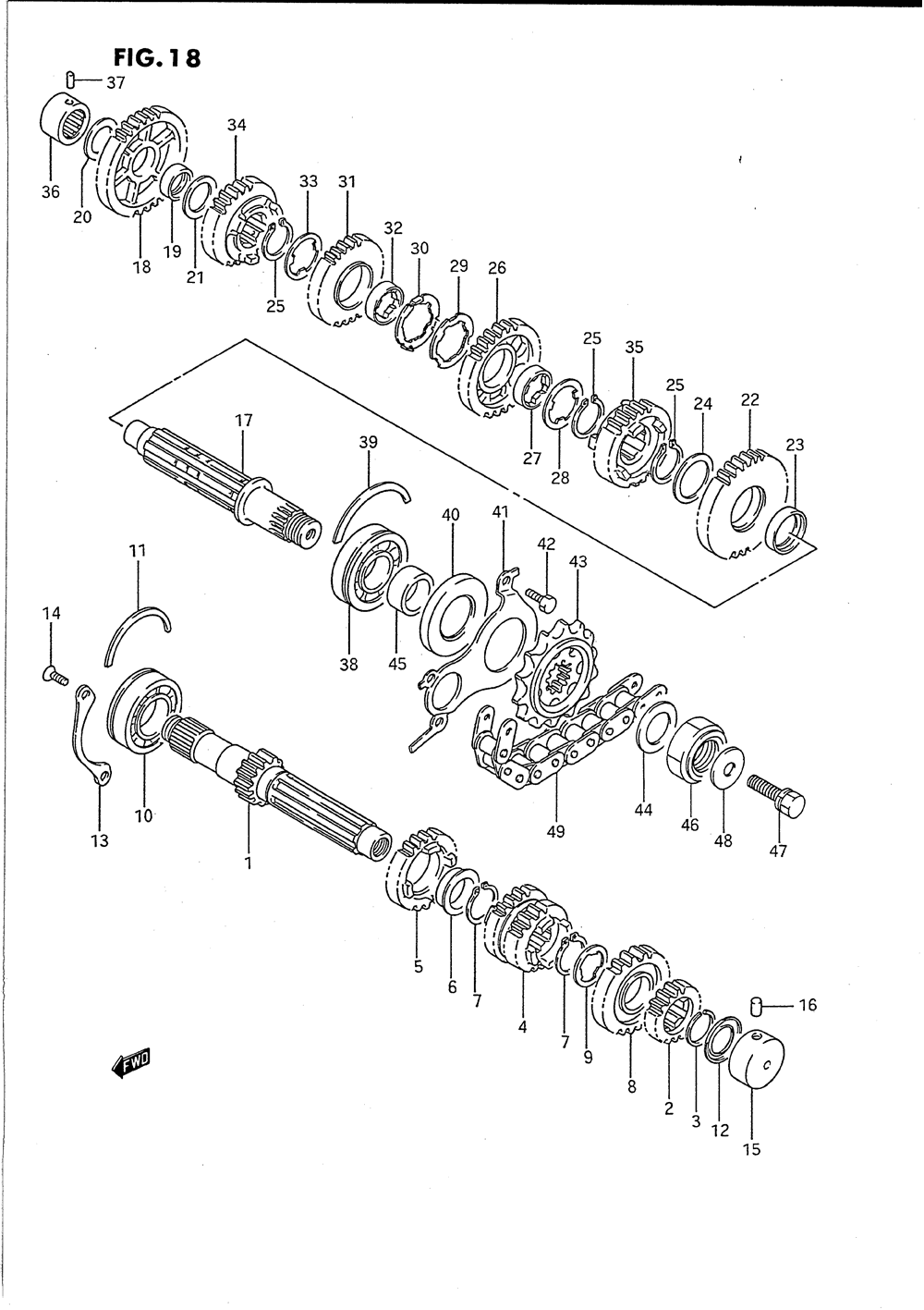

ТРАНСМИССИЯ

Suzuki GSX750F KATANA

ТРАНСМИССИЯ

#

oem код

название

цена

1-1

Countershaft (nt:12)

Countershaft (nt:12)

2-1

Gear, 2nd Drive (nt:16)

Gear, 2nd Drive (nt:16)

3

Circlip, 2nd Drive

Circlip, 2nd Drive

4-1

Gear, 3/4th Drive (nt:17/20)

Gear, 3/4th Drive (nt:17/20)

5

Gear, 5th Drive (nt:22)

Gear, 5th Drive (nt:22)

6

Bush, 2nd Driven

Bush, 2nd Driven

7

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

8-1

Gear, 6th Drive (nt:21)

Gear, 6th Drive (nt:21)

9

Шайба

Шайба

10-1

Bearing, Lh (25x62x17)

Bearing, Lh (25x62x17)

10-2

Bearing, Lh

Bearing, Lh

11-1

C Ring, Cntr Shaft Brg Rh

C Ring, Cntr Shaft Brg Rh

12

Сальник

Сальник

13

Retainer, Cntr Shaft

Retainer, Cntr Shaft

14-1

Винт

Винт

14-2

Винт

Винт

15

Bearing, Cntr Shaft, Lh

Bearing, Cntr Shaft, Lh

16

Штифт

Штифт

17

Driveshaft

Driveshaft

18-1

Gear, 1st Driven (nt:37)

Gear, 1st Driven (nt:37)

19

Bush (22x27x0.5)

Bush (22x27x0.5)

20

Шайба

Шайба

21

Washer, Lh

Washer, Lh

22-1

Gear, 2nd Driven (nt:33)

Gear, 2nd Driven (nt:33)

23

Bush, 2nd Driven Gear

Bush, 2nd Driven Gear

24

.washer, Rr Final Dr Gr

.washer, Rr Final Dr Gr

25-1

Circlip Idle Drive Gear

Circlip Idle Drive Gear

26-1

Gear, 3rd Driven (nt:28)

Gear, 3rd Driven (nt:28)

27

Bush, 3dr Driven Gear

Bush, 3dr Driven Gear

28

Washer (28.1x38x1.0)

Washer (28.1x38x1.0)

29

Lock Washer, Lh

Lock Washer, Lh

30

Lock Washer, Rh

Lock Washer, Rh

31-1

Gear, 4th Driven (nt:28)

Gear, 4th Driven (nt:28)

34

Gear, 5th Driven (nt:27)

Gear, 5th Driven (nt:27)

35

Gear, 6th Driven (nt:23)

Gear, 6th Driven (nt:23)

36

Bearing, Drive Shaft Rh

Bearing, Drive Shaft Rh

37

Pin, Drive Shaft Brg Rh

Pin, Drive Shaft Brg Rh

40

Seal, Drive Shaft Oil

Seal, Drive Shaft Oil

41

Пластина

Пластина

42-1

Болт

Болт

42-2

Болт

Болт

43

Sprocket, Engine (nt:15)

Sprocket, Engine (nt:15)

44

Shim (25x36x1.5)

Shim (25x36x1.5)

45

Spacer, Engine Sprocket

Spacer, Engine Sprocket

46

Nut, Engine Sprocket

Nut, Engine Sprocket

47-1

Болт

Болт

47-2

Болт

Болт

48

Шайба

Шайба

49-1

27600-24F20-120

Chain Assy (rk50gsvz3m, 120le)

Chain Assy (rk50gsvz3m, 120le)
