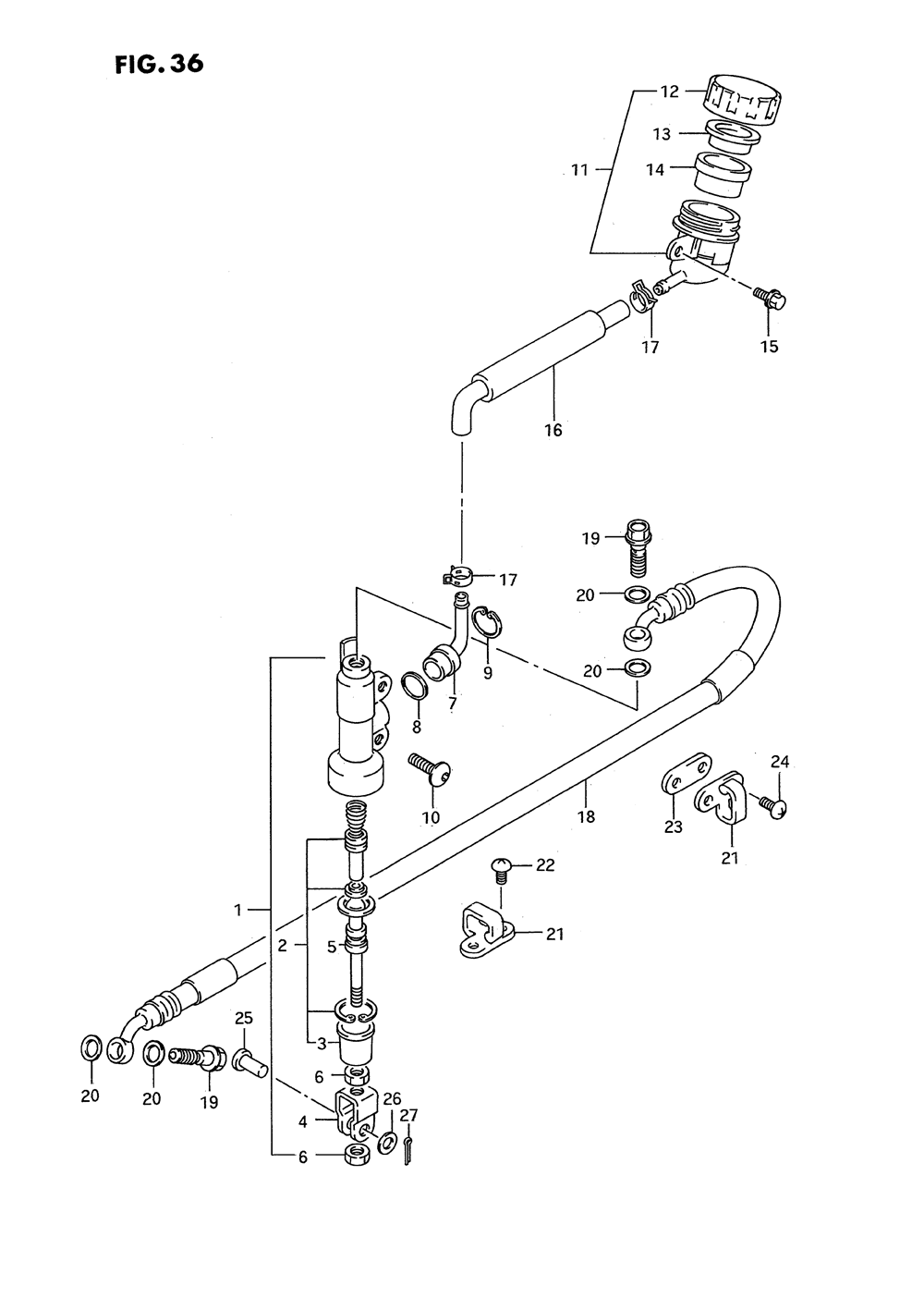

Rear master cylinder (model n)

Suzuki RM125

Rear master cylinder (model n)

#

oem код

название

цена

1

Cylinder Assy, Rear Master

Cylinder Assy, Rear Master

2

.piston / Cap Set

.piston / Cap Set

3

..boot

..boot

4

.yoke

.yoke

5

.rod, Push

.rod, Push

6

Гайка

Гайка

7

.connector

.connector

8

Кольцо

Кольцо

9

.circlip

.circlip

10

Винт (6x16)

Винт (6x16)

11

Tank Assy, Reservoir

Tank Assy, Reservoir

12

Колпачек

Колпачек

13

.plate

.plate

14

.diaphragm

.diaphragm

15

Bolt, Under Oil Seal Plate

Bolt, Under Oil Seal Plate

16

Hose, Reservoir Tank

Hose, Reservoir Tank

17

Clamp, Reservoir Hose

Clamp, Reservoir Hose

18

Hose, Rear Brake

Hose, Rear Brake

19

Bolt, Fr Macter Cylinder

Bolt, Fr Macter Cylinder

20

Washer (10x15x1.5)

Washer (10x15x1.5)

21

Guide, Brake Hose, Front

Guide, Brake Hose, Front

22

.screw (5x10)

.screw (5x10)

23

24

.screw, Air Intk Guide No.2

.screw, Air Intk Guide No.2

25

Штифт

Штифт

26

Шайба

Шайба

27

Шплинт

Шплинт
