Cylinder head (model j/k) Оригинальные запчасти для мотоциклов Suzuki GSX-R750 (1990)

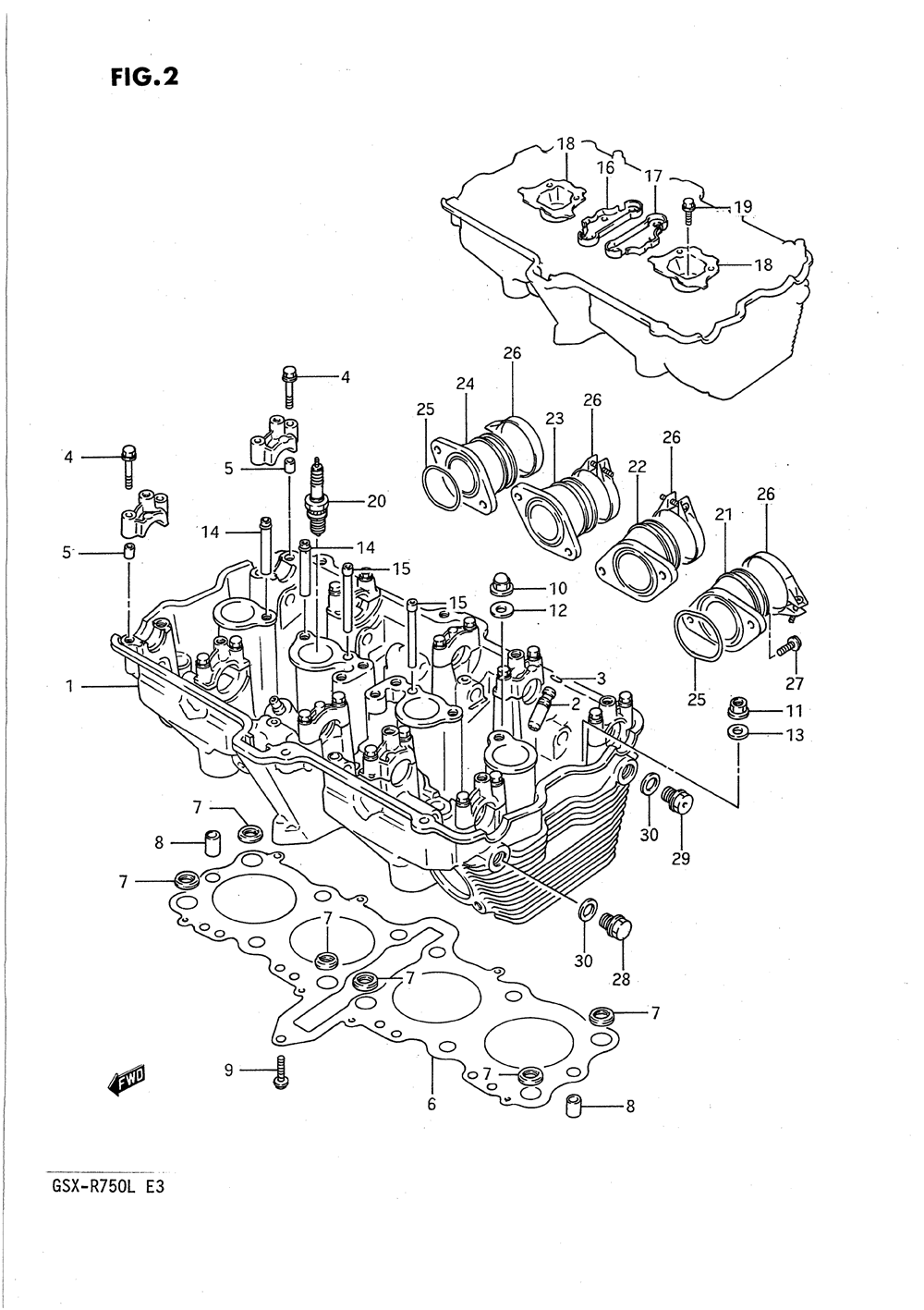

Cylinder head (model j/k)

Suzuki GSX-R750

oem код

название

цена

1-1

11100-17C03

1-3

11100-17C13

11116-06B70

Guide, Valve (os:0.3)

.snap Ring

.bolt (6x39)

Штифт

Прокладка цилиндра

O Ring, Cylinder Head

Штифт

Болт

Гайка

Гайка

.gasket, Crankcase Bolt

Washer (10.5x22x2.3)

Pipe, Oil No.1, 2

Pipe, Oil No.3

Plate, Oil Pipe No.1

Plate, Oil Pipe,no.2

Bolt, Under Oil Seal Plate

20-1

09482-00397

Spark Plug (ngk, Jr9c)

20-2

09482-00401

Spark Plug (ngk, Jr8c)

Pipe, Intake, Lh

Pipe, Intake, Ml

Pipe, Intake, Mr

Pipe, Intake, Rh

.o Ring, Intake Pipe

Clamp, Carb

Винт

28-1

09247-14034

Plug, Cylinder Head Ex

28-2

09247-14032

Plug, Cylinder Head Ex

09168-14004

.gasket (14.1x18x1.5)
