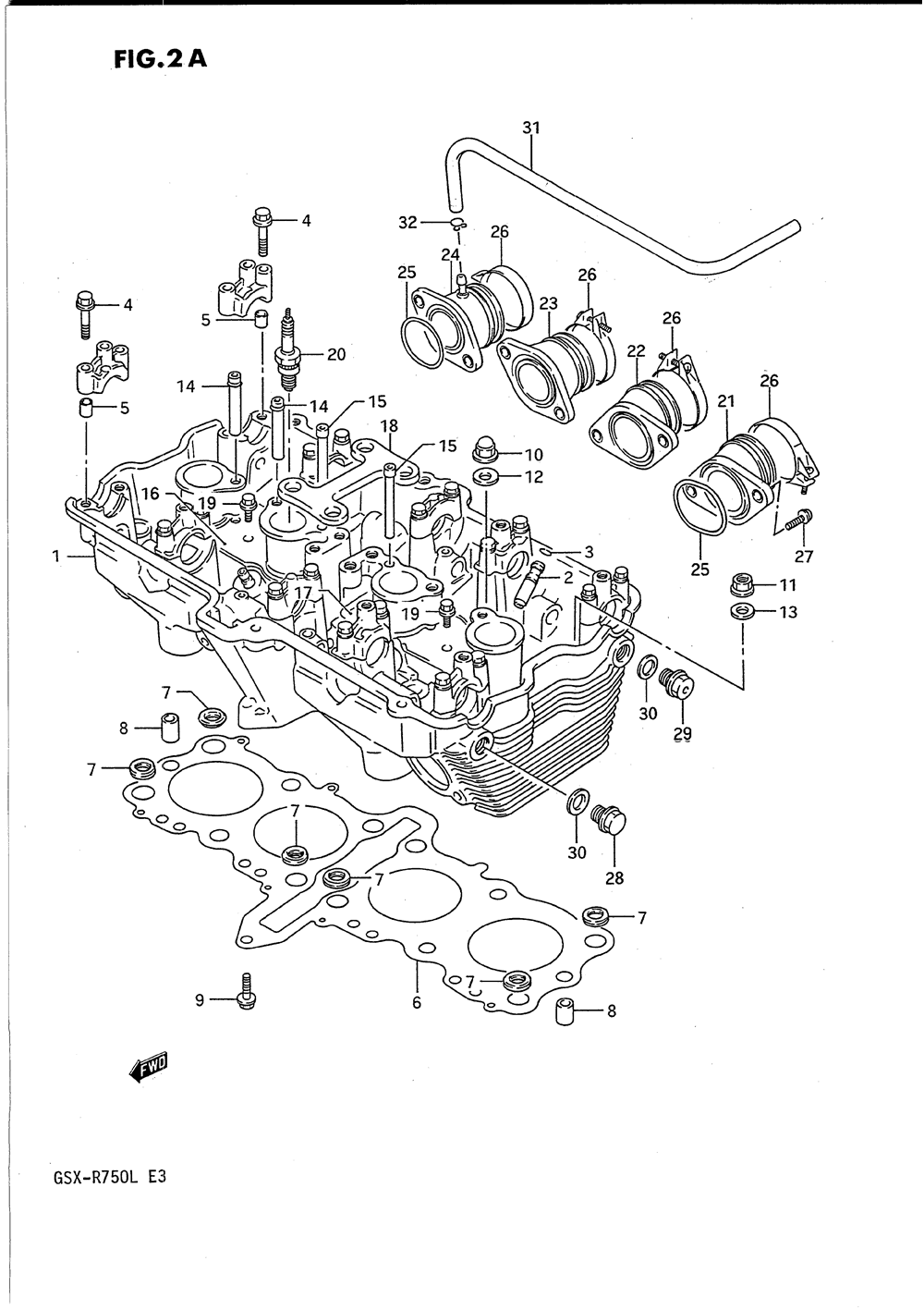

Cylinder head (model l) Оригинальные запчасти для мотоциклов Suzuki GSX-R750 (1990)

Cylinder head (model l)

Suzuki GSX-R750

oem код

название

цена

1-1

11100-17D00

1-2

11100-17D10

11116-06B70

Guide, Valve (os:0.3)

09381-10004

.snap Ring

09103-06026

.bolt (6x39)

09206-08001

Штифт

6-1

11141-17D10

Прокладка

11143-06B00

O Ring, Cylinder Head

Штифт

Болт

Гайка

Гайка

.gasket, Crankcase Bolt

Washer (10.5x22x2.3)

Pipe, Oil No.1, 2

Pipe, Oil No.3

Plate, Oil Pipe Rh

Plate, Oil Pipe Lh

Plate, Head Reinforcement

01550-06127

Болт

20-1

09482-00462

Spark Plug (ngk, Cr10ek)

20-2

09482-00463

Spark Plug (denso, U31etr)

20-3

09482-00410

Spark Plug (ngk, Cr9ek)

20-4

09482-00459

Spark Plug (nd, U27esr-n)

21-1

13101-17D00

Pipe, Intake #1

21-2

13101-17D10

Pipe, Intake #1

22-1

13102-17D00

Pipe, Intake #2

22-2

13102-17D10

Pipe, Intake #2

23-1

13103-17D00

Pipe, Intake #3

23-2

13103-17D10

Pipe, Intake #3

24-1

13104-17D00

Pipe, Intake #4

24-2

Pipe, Intake #4

Кольцо

Зажим

Винт

28-1

09247-14034

Plug, Cylinder Head Ex

28-2

09247-14032

Plug, Cylinder Head Ex

09168-14004

.gasket (14.1x18x1.5)

09352-50823-600

Шланг

09401-08401

Зажим
