ТРАНСМИССИЯ Оригинальные запчасти для мотоциклов Suzuki GSX-R750 (1990)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

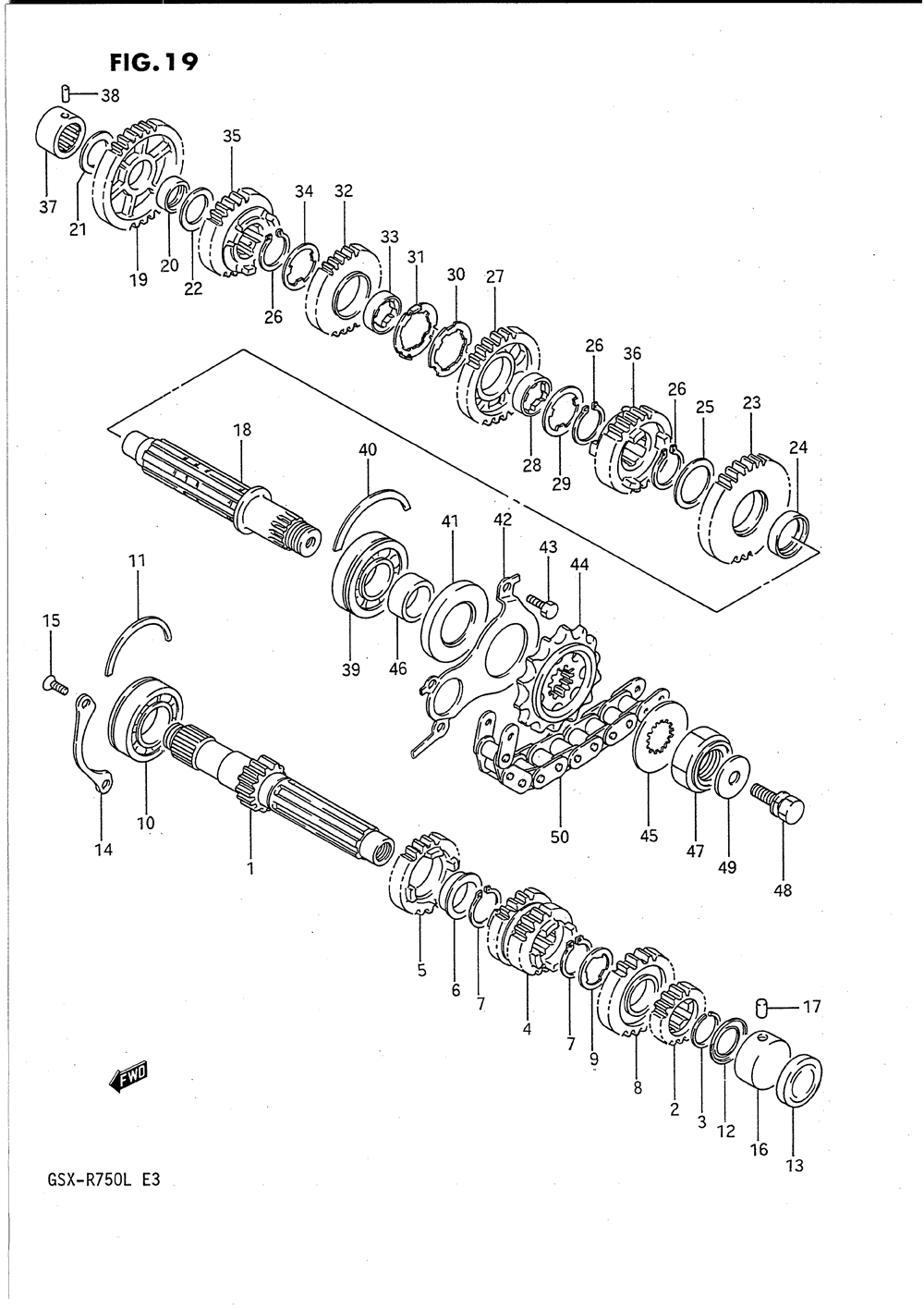

ТРАНСМИССИЯ

Suzuki GSX-R750

ТРАНСМИССИЯ

#

oem код

название

цена

1

Countershaft (nt:13)

Countershaft (nt:13)

2

Gear, 2nd Drive (nt:16)

Gear, 2nd Drive (nt:16)

3

Circlip, 2nd Drive

Circlip, 2nd Drive

4

Gear, 3/4th Drive (nt:17/20)

Gear, 3/4th Drive (nt:17/20)

5

Gear, 5th Drive (nt:22)

Gear, 5th Drive (nt:22)

6

Bush, 2nd Driven

Bush, 2nd Driven

7

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

8

Gear, 6th Drive (nt:21)

Gear, 6th Drive (nt:21)

9

Шайба

Шайба

10

Bearing, Lh (25x62x17)

Bearing, Lh (25x62x17)

11

C Ring, Cntr Shaft Brg Rh

C Ring, Cntr Shaft Brg Rh

12

Сальник

Сальник

13

Cap, Counter Shaft

Cap, Counter Shaft

14

Retainer, Cntr Shaft

Retainer, Cntr Shaft

15

Винт

Винт

16

Bearing, Lh

Bearing, Lh

17

Штифт

Штифт

18-1

Driveshaft

Driveshaft

18-2

Driveshaft

Driveshaft

19

Gear, 1st Driven (nt:36)

Gear, 1st Driven (nt:36)

20

Bush (22x27x0.5)

Bush (22x27x0.5)

21

Шайба

Шайба

22

Washer, Lh

Washer, Lh

23-1

Gear, 2nd Driven (nt:33)

Gear, 2nd Driven (nt:33)

24

Втулка

Втулка

25

.washer, Rr Final Dr Gr

.washer, Rr Final Dr Gr

26

Circlip Idle Drive Gear

Circlip Idle Drive Gear

27

Gear, 3rd Driven (nt:28)

Gear, 3rd Driven (nt:28)

28

Bush, 3dr Driven Gear

Bush, 3dr Driven Gear

29

Washer (28.1x38x1.0)

Washer (28.1x38x1.0)

30

Lock Washer, Lh

Lock Washer, Lh

31

Lock Washer, Rh

Lock Washer, Rh

32

Gear, 4th Driven (nt:28)

Gear, 4th Driven (nt:28)

35

Gear, 5th Driven (nt:27)

Gear, 5th Driven (nt:27)

36

Gear, 6th Driven (nt:23)

Gear, 6th Driven (nt:23)

37

Bearing, Drive Shaft Rh

Bearing, Drive Shaft Rh

38

Pin, Drive Shaft Brg Rh

Pin, Drive Shaft Brg Rh

41

Seal, Drive Shaft Oil

Seal, Drive Shaft Oil

42

Пластина

Пластина

43

Болт

Болт

44

Sprocket, Engine (nt:15)

Sprocket, Engine (nt:15)

45

Shim (25x36x1.5)

Shim (25x36x1.5)

46-1

Spacer, Engine Sprocket

Spacer, Engine Sprocket

46-2

Spacer (25x34x20.5)

Spacer (25x34x20.5)

47

Nut, Engine Sprocket

Nut, Engine Sprocket

48

Болт

Болт

49

Шайба

Шайба

50

27600-24F20-108

Chain Assy (rk50gsvz3, 108l)

Chain Assy (rk50gsvz3, 108l)
