Crankshaft (model k)

Suzuki RM125

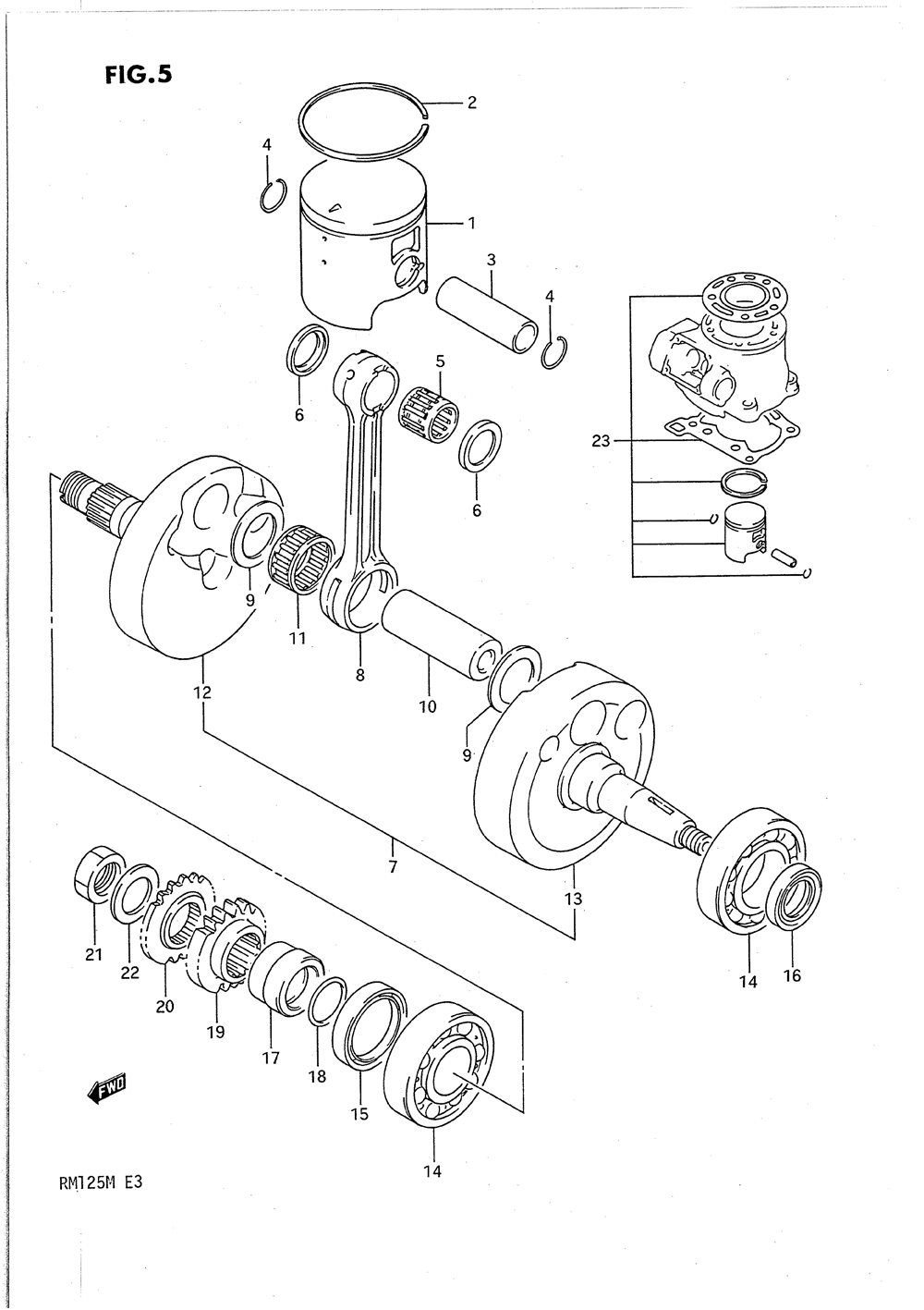

Crankshaft (model k)

#

oem код

название

цена

1-1

12110-27C06-0F0

ПОРШЕНЬ

ПОРШЕНЬ

1-2

12103-27810-025

Поршень

Поршень

1-3

12103-27810-050

Piston Set, Os:

Piston Set, Os:

2-1

Ring Piston

Ring Piston

2-2

12141-01B11-025

2-3

12141-01B11-050

3

.pin, Piston

.pin, Piston

4

.circlip

.circlip

5

.bearing

.bearing

6

Washer, Piston Pin

Washer, Piston Pin

7

Коленчатый вал в сборе

Коленчатый вал в сборе

8

12161-27C00-0D0

.rod, Connecting

.rod, Connecting

9

Washer, 22x27.5

Washer, 22x27.5

10

.pin, Crank

.pin, Crank

11

.bearing (22x28x16)

.bearing (22x28x16)

12

.crankshaft, Rh

.crankshaft, Rh

13

.crankshaft, Lh

.crankshaft, Lh

14

Bearing (22x56x16)

Bearing (22x56x16)

15

Oil Seal, Rh (30x40x7)

Oil Seal, Rh (30x40x7)

16

Oil Seal, Lh (18x30x6)

Oil Seal, Lh (18x30x6)

17

Spacer, Primary Drive Gear

Spacer, Primary Drive Gear

18

O Ring (d:2.4 Id:19.8)

O Ring (d:2.4 Id:19.8)

19

20

Gear, Governor Drive (nt:19)

Gear, Governor Drive (nt:19)

21

Гайка

Гайка

22

Washer, Clutch Housing

Washer, Clutch Housing

23-1

23-3

12100-27846-025
