Сцепление Запчасти для квадроциклов ATV Arctic Cat DVX 250 (2007)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

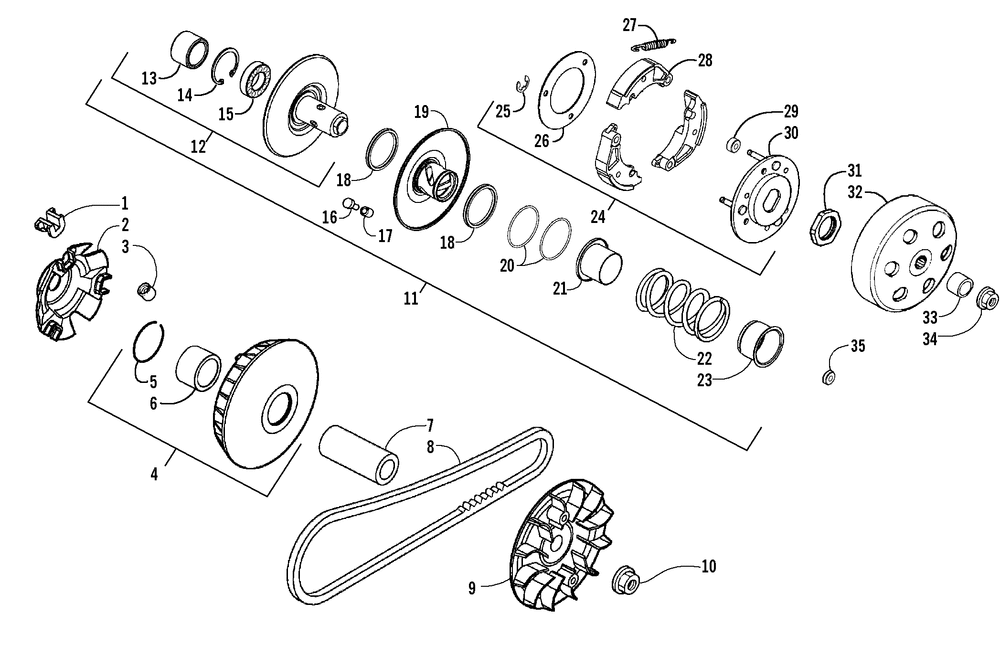

Сцепление

Arctic Cat DVX 250

Сцепление

#

oem код

название

цена

1

Piece Slide

Piece Slide

2

Plate Ramp

Plate Ramp

3

Roller Comp Weight

Roller Comp Weight

4

Face Comp Movable Drive (inc. 5-6)

Face Comp Movable Drive (inc. 5-6)

5

Clip Piston Pin 33mm

Clip Piston Pin 33mm

6

Bush 27*33*37

Bush 27*33*37

7

Boss Driven Face

Boss Driven Face

8

Belt Drive (mark:bando)

Belt Drive (mark:bando)

9

Face Drive

Face Drive

10

Nut;flange 14mm

Nut;flange 14mm

11

Pulley Sub Assy (inc. 12-31)

Pulley Sub Assy (inc. 12-31)

12

Face Assy Driven (inc. 13-15)

Face Assy Driven (inc. 13-15)

13

Brg Ndl 22*29*18

Brg Ndl 22*29*18

14

Cir Clip In 28mm

Cir Clip In 28mm

15

Brg Ball Radial 6902u 15*28*7

Brg Ball Radial 6902u 15*28*7

16

Pin Roller Guide

Pin Roller Guide

17

Roller Guide

Roller Guide

18

Seal Driven Face 40*47*4

Seal Driven Face 40*47*4

19

Face Comp Movable Driven

Face Comp Movable Driven

20

O-ring Pinion Cap

O-ring Pinion Cap

21

Collar Seal

Collar Seal

22

Spring Driven Face

Spring Driven Face

23

Collar Spg

Collar Spg

24

Plate Assy Drive (inc. 25-30)

Plate Assy Drive (inc. 25-30)

25

Cir Clip 7mm

Cir Clip 7mm

26

Plate Clutch Side

Plate Clutch Side

27

Spring Clutch

Spring Clutch

28

Weight Clutch

Weight Clutch

29

Rubber Clutch Damper

Rubber Clutch Damper

30

Plate Comp Drive

Plate Comp Drive

31

Special Nut 28mm

Special Nut 28mm

32

Outer Clutch

Outer Clutch

33

Yoss Driven Shaft

Yoss Driven Shaft

34

Nut C Flange M12

Nut C Flange M12

35

Washer Thrust 16mm

Washer Thrust 16mm
