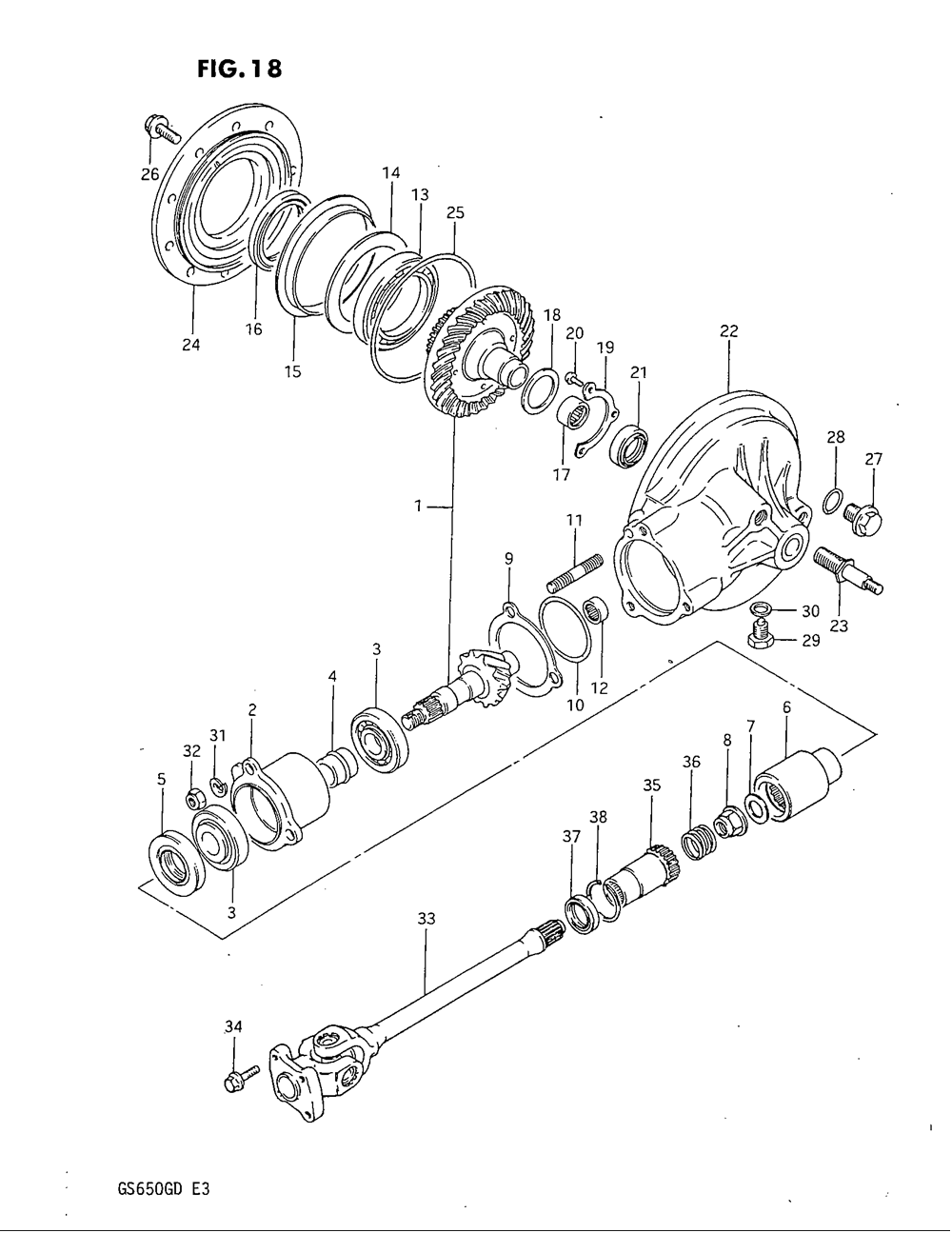

Карданный вал

Suzuki GS650G 1983

Карданный вал

#

oem код

название

цена

1

2

3

Bearing, Rear (25x52x16.25)

Bearing, Rear (25x52x16.25)

4

Распорка

Распорка

5

.oil Seal

.oil Seal

6

7

Washer, Rotor (14x29x4)

Washer, Rotor (14x29x4)

8

Nut, Rr Prop Shaft Coup

Nut, Rr Prop Shaft Coup

9-1

.shim (t:0.15)

.shim (t:0.15)

9-2

9-3

.shim (t:0.35)

.shim (t:0.35)

9-4

10

Кольцо

Кольцо

11

Шпилька

Шпилька

12

13

Bearing, Final Driven Rh

Bearing, Final Driven Rh

14-1

14-2

14-3

14-4

15

.plate

.plate

16

Seal, Final Driven Gear Oil R

Seal, Final Driven Gear Oil R

17

.bearing, Lh (32x46x17.7)

.bearing, Lh (32x46x17.7)

18-1

18-2

18-3

18-4

.shim (t:1.25)

.shim (t:1.25)

18-5

19

.retainer, Bearing

.retainer, Bearing

20

Винт

Винт

21

.oil Seal (30x42x7)

.oil Seal (30x42x7)

22

23

..stud Bolt

..stud Bolt

24

25

.o Ring (d:3.5, Id:131.6)

.o Ring (d:3.5, Id:131.6)

26

..bolt, Upper

..bolt, Upper

27

.plug, Oil Filler

.plug, Oil Filler

28

O Ring (d:2.4, Id:17.8)

O Ring (d:2.4, Id:17.8)

29

Plug, Oil Drain

Plug, Oil Drain

30

.gasket (14.1x18x1.5)

.gasket (14.1x18x1.5)

31

Гровер

Гровер

32

Nut, Rear Cushion Rod Rr

Nut, Rear Cushion Rod Rr

33

34

Болт

Болт

35

36

37

Seal, Coupling Oil

Seal, Coupling Oil

38

.circlip

.circlip
