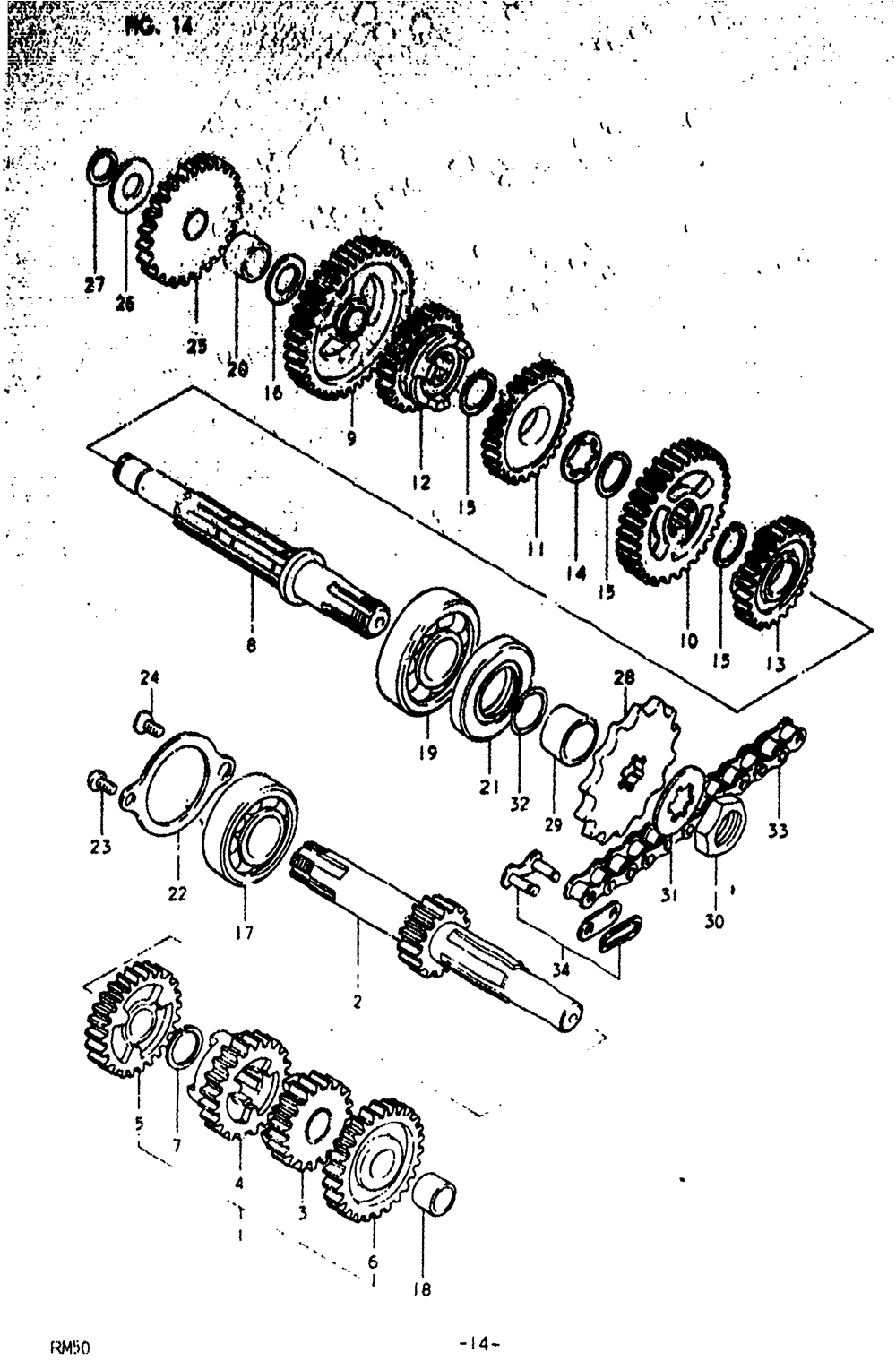

Transmission (rm50n

Suzuki RM50 1978-1980
Suzuki
#oem кодцена
1
24120-46002
2
24121-46001
Countershaft (nt:15)
4
24231-46001
Gear, 3rd Drive (nt:22)
3
24220-46000
Gear, 2nd Drive (nt:19)
5
24241-46000
Gear, 4th Drive (nt:24)
6
24251-46001
Gear, 5th Drive (nt:26)
7
09380-17007
СТОПОРНОЕ КОЛЬЦО
8
24131-46000
Drive Shaft
9
24310-46001
Gear, 1st Driven (nt:35)
10
24321-46001
Gear, 2nd Driven (nt:32)
11
24331-46000
Gear, 3rd Driven (nt:29)
12
24341-46000
Gear, 4th Driven (nt:26)
13
24351-46000
Gear, 5th Driven (nt:24)
14
09160-13006
Washer, Limiter Assy Thrust
16
09167-17003
Washer (17.1x23x1.0)
17
09262-17023
.bearing, Crankshaft Lower
18
09303-13001
Втулка
19
08113-63030
Bearing, R
21
09283-21003
Oil Seal (21x40x6)
22
24741-46000
Обойма подшипника
23
02112-06107
Винт
24
02122-0610A
Винт
25
26260-46001
Gear, Kick Idle (nt:26) (n,tn,t)
26
08211-12261
Шайба
27
08331-3112A
Circlip, Gear Shift Lever
28-1
27511-04000
Sprocket, Engine (nt:12)*
28-2
27511-01701
Sprocket, Engin
28-3
27511-19700
Engine Sprocket
28-4
27511-26000
Sprocket, Engine
29
09180-17008
Spacer (17x21x13)
30
09140-16002
Nut, Clutch Housing
31
09167-16001
Washer (16.1x33x0.8)
32
09280-17001
O Ring (d:1.0, Id:16.8)
33
27600-01011-130
Chain Assy, Driv (n, Tn, T)
34-1
27620-01012
Joint (did)
34-2
27620-01023
.joint (rk)
