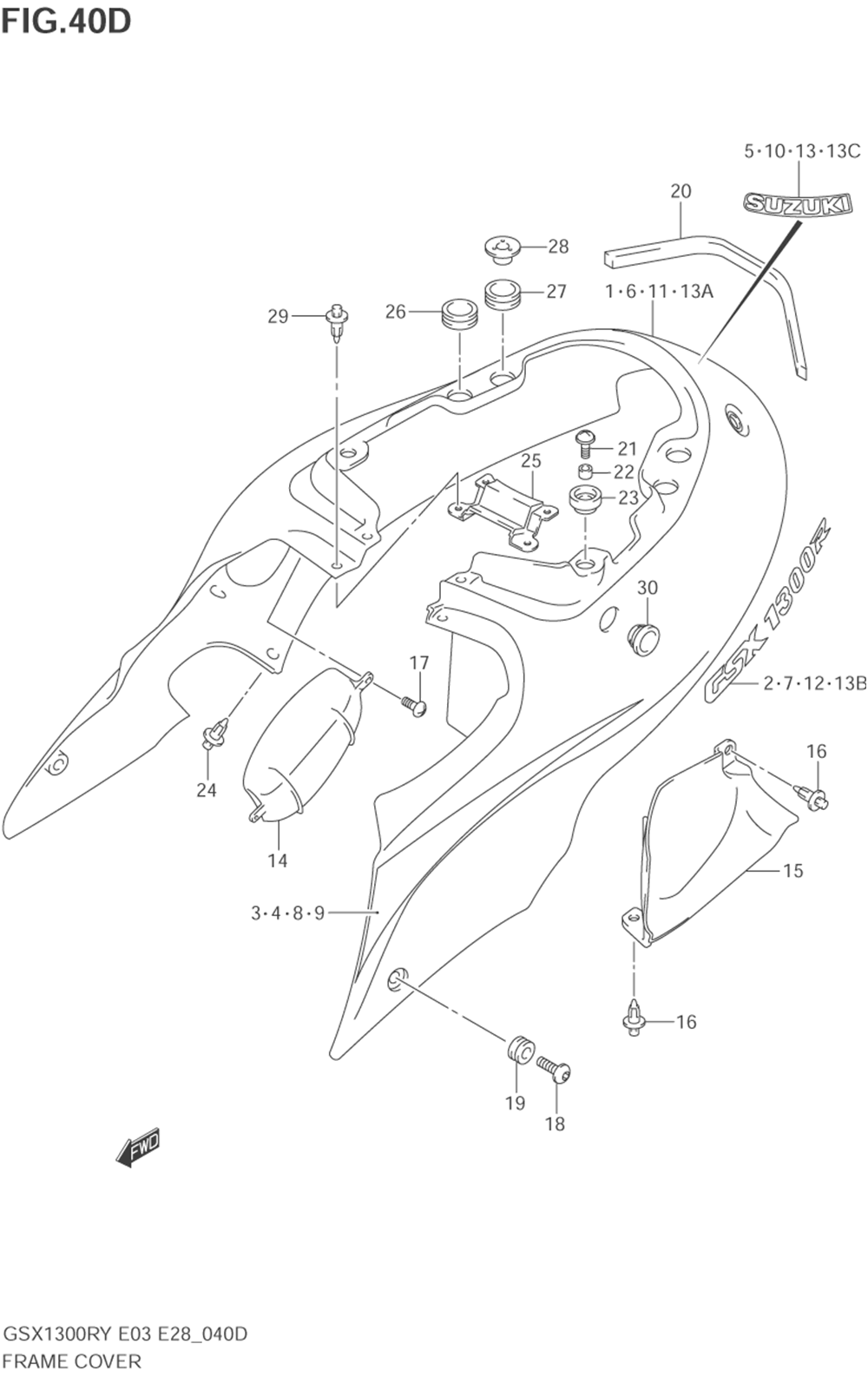

Frame cover (model k3) Оригинальные запчасти для мотоциклов Suzuki GSX1300R,Z HAYABUSA (2000)

Frame cover (model k3)

Suzuki GSX1300R,Z HAYABUSA

oem код

название

цена

1-1

47110-24F60-YD8

Cover, Frame (silver)

1-2

47110-24F60-YU8

Cover, Frame (gray)

2-2

68131-24F30-LK8

.emblem

3-2

68135-24F00-33J

.tape, Rh (black)

4-2

68145-24F00-33J

.tape, Lh (black)

5-2

68281-24F10-019

.emblem (black)

47110-24F70-YD8

Cover, Frame (silver)

.emblem

.tape, Rh (gray)

.tape, Lh (gray)

.emblem, Rear

Cover, Frame (black)

.emblem

.emblem

13A

47110-24F20-YAV

Cover, Frame (orange)

13B

68131-24F10-NH3

.emblem

13C

.emblem, Rear

Cover, Frame Head Rh

Cover, Frame Head Lh

Клипса (черн.)

Винт

Screw, Brace

Подушка

Cushion, Rear

Винт

Проставка

Подушка

25-1

47311-24F00-YD8

Cover, Center (silver)

25-2

47311-24F00-YU8

Cover, Center (gray)

25-3

47311-24F10-019

Cover, Center (black)

25-4

47311-24F00-YAV

Cover, Center (orange)

47191-24F00

Cushion, Upper Front

47191-24F30

Cushion, Pillion Handle Rear

47190-24F21

Washer, Frame Co

47191-24F20

Cushion, Center
