Рама

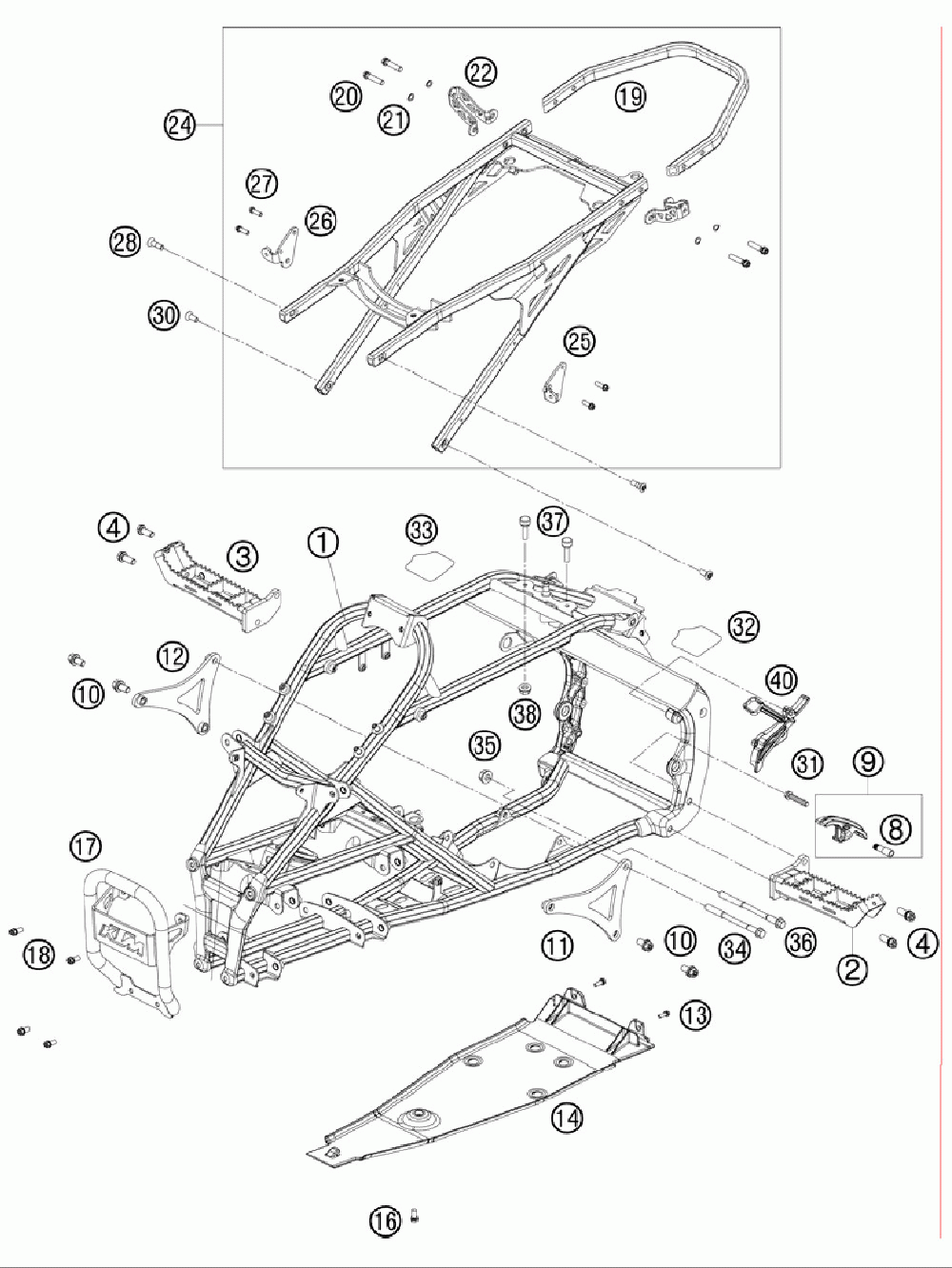

KTM 450 SX ATV CHASSIS

Рама

#

oem код

название

цена

1

Frame Atv-sx "nb09" 2009

Frame Atv-sx "nb09" 2009

2

Footrest L/s

Footrest L/s

3

Footrest R/s

Footrest R/s

4

Ah-collar Screw M10x24 Isa45

Ah-collar Screw M10x24 Isa45

8

Bush 8, 2x10x22

Bush 8, 2x10x22

9

Chain Sliding Piece Below

Chain Sliding Piece Below

11

Engine Support L/s Cpl.

Engine Support L/s Cpl.

12

Engine Support R/s Cpl.

Engine Support R/s Cpl.

13

Винт м6х16

Винт м6х16

14

Frame Protection Below

Frame Protection Below

16

Винт M8x20 Tx40

Винт M8x20 Tx40

17

Front Bumper Black

Front Bumper Black

18

Hh Collar Screw M8x16 Tx40

Hh Collar Screw M8x16 Tx40

19

Sub Frame-bracket 07

Sub Frame-bracket 07

20

Hh Collar Screw M8x35 Tx40

Hh Collar Screw M8x35 Tx40

21

Стопорная шайба 8 мм

Стопорная шайба 8 мм

22

Fender Mounting

Fender Mounting

24

Sub Frame Cpl. 08

Sub Frame Cpl. 08

25

Heelguard Fixing L/s

Heelguard Fixing L/s

26

Heelguard Fixing R/s

Heelguard Fixing R/s

27

Винт М6х20

Винт М6х20

28

Counter-sunk Screw Isa45 M8x26

Counter-sunk Screw Isa45 M8x26

30

Flat Head Screw M. Isa45 M8x20

Flat Head Screw M. Isa45 M8x20

31

Hh Collar Screw M8x45 Tx40

Hh Collar Screw M8x45 Tx40

32

Protect.film F. Frame L/s 2008

Protect.film F. Frame L/s 2008

33

Protect.film F. Frame R/s 2008

Protect.film F. Frame R/s 2008

34

Enginebrac.screw M10x123 Ws=13

Enginebrac.screw M10x123 Ws=13

35

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

36

Engine Brac.screw M10x146 10.9

Engine Brac.screw M10x146 10.9

37

Parabolic Bumper Tankbracket

Parabolic Bumper Tankbracket

38

Stop Nut M6 Din6926 A2-70

Stop Nut M6 Din6926 A2-70

40

Chain Guard Atv Sx

Chain Guard Atv Sx
