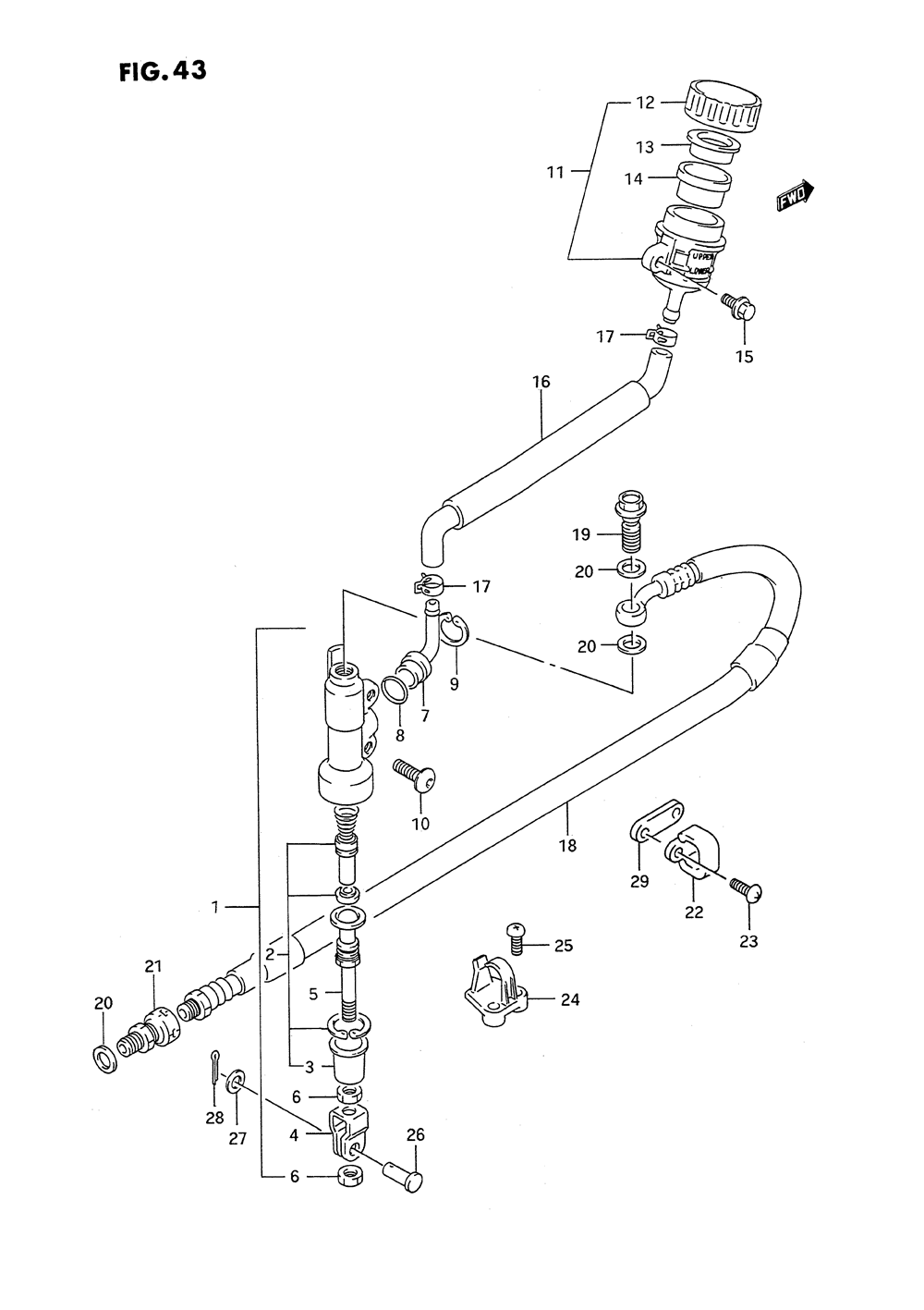

Rear master cylinder (model k)

Suzuki RMX250

Rear master cylinder (model k)

#

oem код

название

цена

1

Cylinder Assy, Rear Master

Cylinder Assy, Rear Master

2

.piston/cup Set

.piston/cup Set

3

..boot

..boot

4

.yoke

.yoke

5

.rod, Push

.rod, Push

6

Гайка

Гайка

7

.connector

.connector

8

Кольцо

Кольцо

9

.circlip

.circlip

10

Bolt, Seat

Bolt, Seat

11

Tank Assy, Reservoir

Tank Assy, Reservoir

12

Колпачек

Колпачек

13

.plate

.plate

14

.diaphragm

.diaphragm

15

Болт

Болт

16

Hose, Reservoir Tank

Hose, Reservoir Tank

17

Clamp, Reservoir Hose

Clamp, Reservoir Hose

18

Hose, Rear Brake

Hose, Rear Brake

19

Bolt (10x1.00x24)

Bolt (10x1.00x24)

20

Washer (10x15x1.5)

Washer (10x15x1.5)

21

Adapter, Brake Hose

Adapter, Brake Hose

22

Clamp, Rear Brake Hose

Clamp, Rear Brake Hose

23

.screw, Air Intk Guide No.2

.screw, Air Intk Guide No.2

24

Guide, Hose Rear

Guide, Hose Rear

25

Screw, Shift Position Sensor

Screw, Shift Position Sensor

26

Штифт

Штифт

27

Шайба

Шайба

28

Шплинт

Шплинт

29
