Fuel tank (model n/p) Оригинальные запчасти для мотоциклов Suzuki GS500E (1989)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

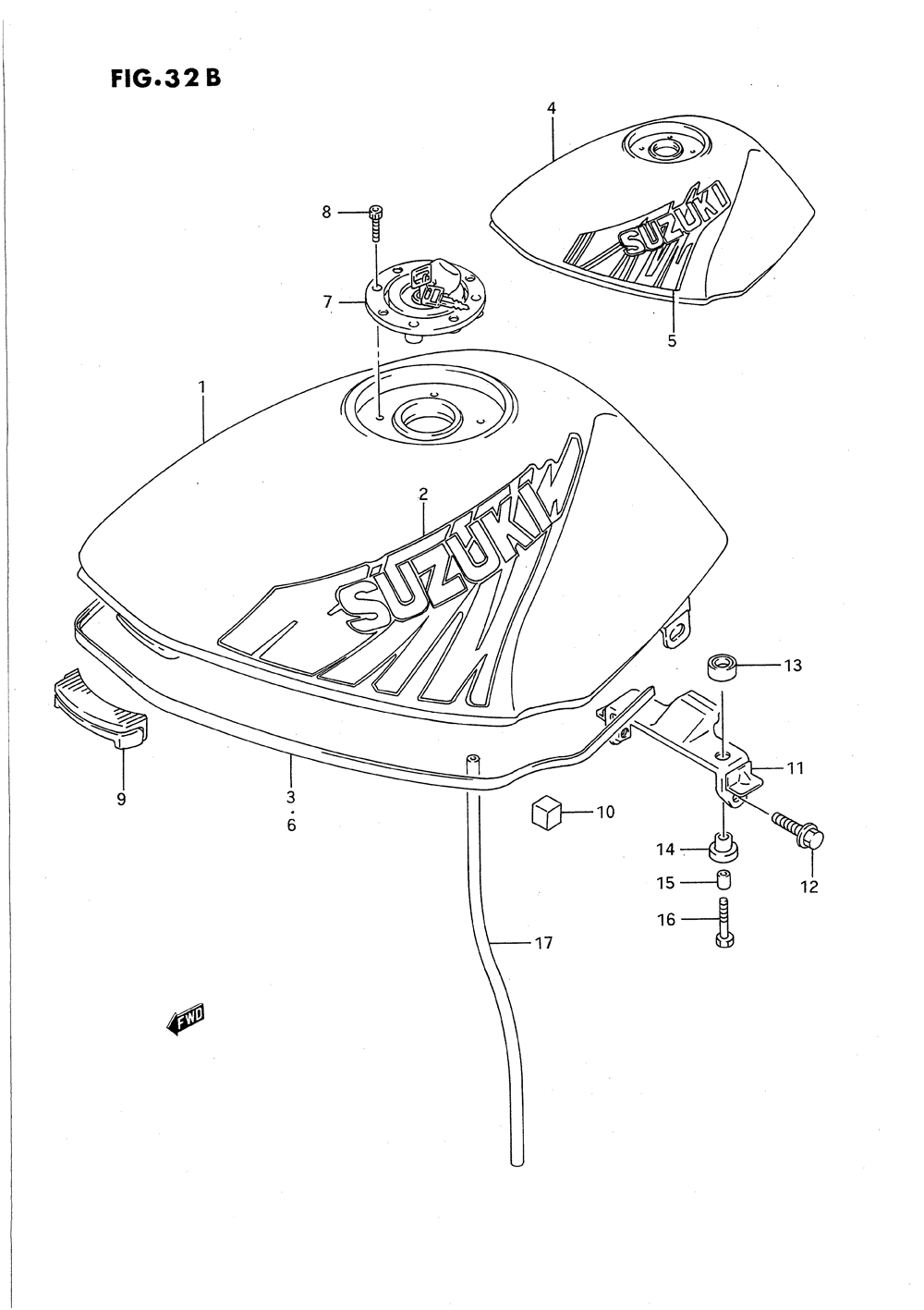

Fuel tank (model n/p)

Suzuki GS500E

Fuel tank (model n/p)

#

oem код

название

цена

1-1

44100-02D10-1HU

Tank Assy, Fuel

Tank Assy, Fuel

1-2

44100-02D10-28V

Tank Assy, Fuel

Tank Assy, Fuel

1-3

44100-02D10-33J

Tank Assy, Fuel

Tank Assy, Fuel

1-4

44100-02D20-1HU

Tank Assy, Fuel (purple)

Tank Assy, Fuel (purple)

1-5

44110-01D22-YD8

Tank Comp, Fuel

Tank Comp, Fuel

2-1

68110-01D30-L32

.tape Set, Fuel Tank

.tape Set, Fuel Tank

2-2

68110-01D30-L34

.tape Set, Fuel Tank

.tape Set, Fuel Tank

2-3

68110-01D30-L33

.tape Set, Fuel Tank

.tape Set, Fuel Tank

3

68241-04X50-00B

Molding

Molding

4-1

44100-02D51-1HU

Tank Assy, Fuel

Tank Assy, Fuel

4-2

44100-02D51-28V

Tank Assy, Fuel

Tank Assy, Fuel

4-3

44100-02D51-33J

Tank Assy, Fuel

Tank Assy, Fuel

4-4

44100-02D61-1HU

Tank Assy, Fuel

Tank Assy, Fuel

4-5

44100-02D61-28V

Tank Assy, Fuel

Tank Assy, Fuel

4-6

44100-02D61-33J

Tank Assy, Fuel

Tank Assy, Fuel

5-1

68110-01D40-A4M

.tape Set, Fuel Tank

.tape Set, Fuel Tank

5-2

68110-01D40-A4K

.tape Set, Fuel Tank

.tape Set, Fuel Tank

5-3

68110-01D40-A4L

.tape Set, Fuel Tank

.tape Set, Fuel Tank

7-1

Cap Set, Fuel Tank

Cap Set, Fuel Tank

7-2

Cap Set, Fuel Tank

Cap Set, Fuel Tank

8

Болт

Болт

9

Cushion, Fuel Tank Front

Cushion, Fuel Tank Front

10

Cushion, Fuel Tank Side

Cushion, Fuel Tank Side

11

Bracket, Rear

Bracket, Rear

12

Болт

Болт

13

Cushion, Rear Upper

Cushion, Rear Upper

14

Cushion, Rear Lower

Cushion, Rear Lower

15

Проставка

Проставка

16

Болт

Болт

17

Hose, Water Drain

Hose, Water Drain
