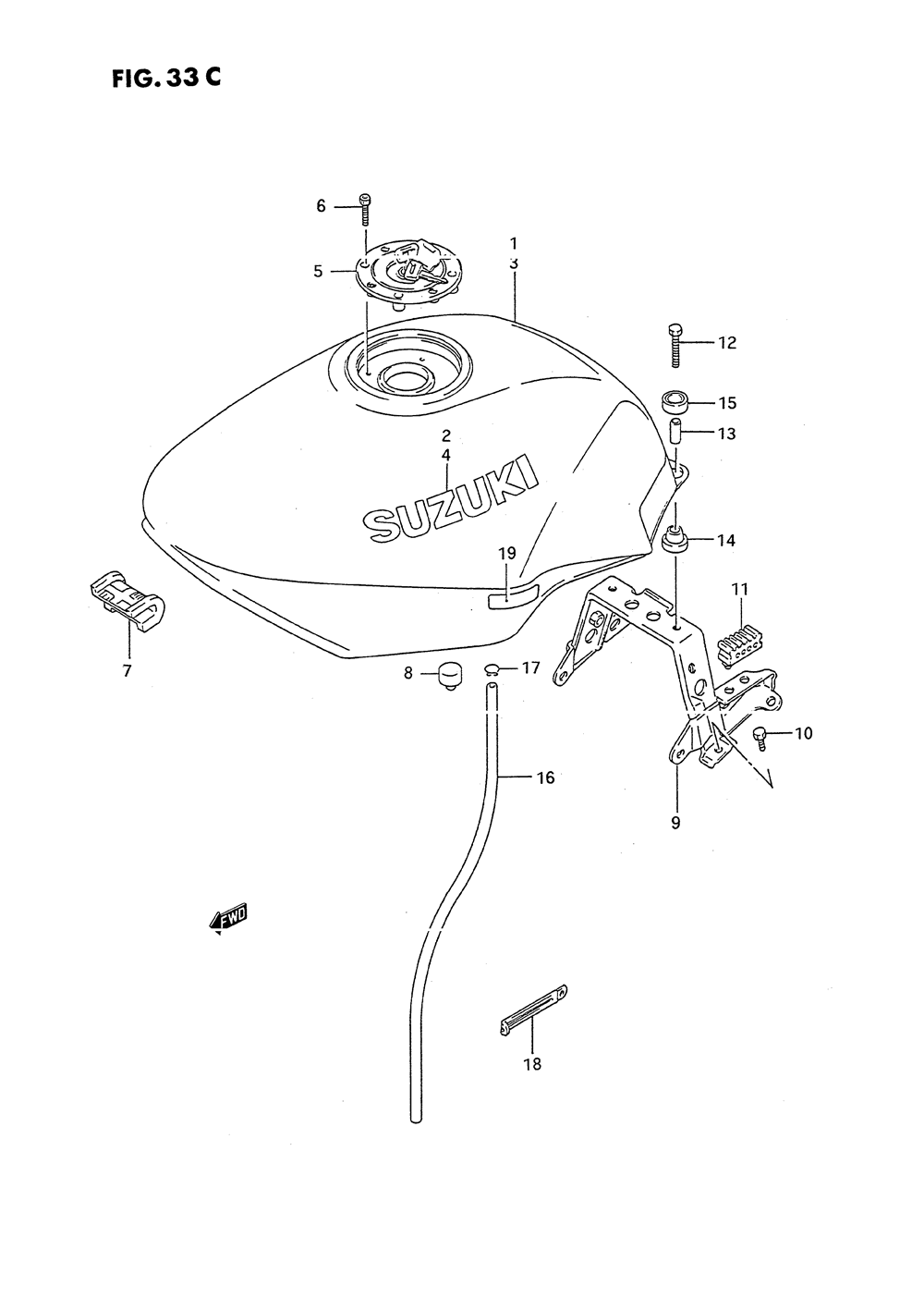

Fuel tank (model p/r/s/t)

Suzuki GSX600F KATANA

Fuel tank (model p/r/s/t)

#

oem код

название

цена

1-1

44100-43C31-1MW

Tank Assy, Fuel

Tank Assy, Fuel

1-2

44100-43C31-36X

Tank Assy, Fuel

Tank Assy, Fuel

2-1

68111-12C30-13L

Эмблема

Эмблема

2-2

68111-12C00-1AP

.emblem (purple)

.emblem (purple)

3-1

44100-21CF1-1TY

Tank Assy, Fuel

Tank Assy, Fuel

3-2

44100-21CF1-2AX

Tank Assy, Fuel

Tank Assy, Fuel

3-3

44100-21CF1-1ZV

Tank Assy, Fuel

Tank Assy, Fuel

3-4

44110-19C22-YD8

Tank Assy, Fuel

Tank Assy, Fuel

3-5

44100-21CE1-1NX

Tank Assy, Fuel

Tank Assy, Fuel

3-6

44100-21CE1-3CX

Tank Assy, Fuel

Tank Assy, Fuel

4-1

68111-01D20-C2Y

.emblem

.emblem

4-2

68111-01D20-C2Z

.emblem

.emblem

4-3

68111-01D20-D5B

.emblem

.emblem

4-4

68111-01D20-D5A

.emblem

.emblem

4-5

68111-01D20-F2U

.emblem

.emblem

5-1

Cap Set, Fuel Tank

Cap Set, Fuel Tank

6

Болт

Болт

7

Cushion, Fuel Tank Front

Cushion, Fuel Tank Front

8

.cushion, Front

.cushion, Front

9

Bracket, Rear

Bracket, Rear

10

Болт

Болт

11

.cushion, Center (40x20x15)

.cushion, Center (40x20x15)

12-1

Болт

Болт

13

Проставка

Проставка

14

Cushion, Rear Lower

Cushion, Rear Lower

15

Cushion, Rear Upper

Cushion, Rear Upper

16

Hose, Water Drain

Hose, Water Drain

17

Зажим

Зажим

18

Clamp, L:120

Clamp, L:120

19-1

19-2

19-3

Защитный элемент

Защитный элемент
