Fuel tank (model k/l) Оригинальные запчасти для мотоциклов Suzuki GSX750F KATANA (1989)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

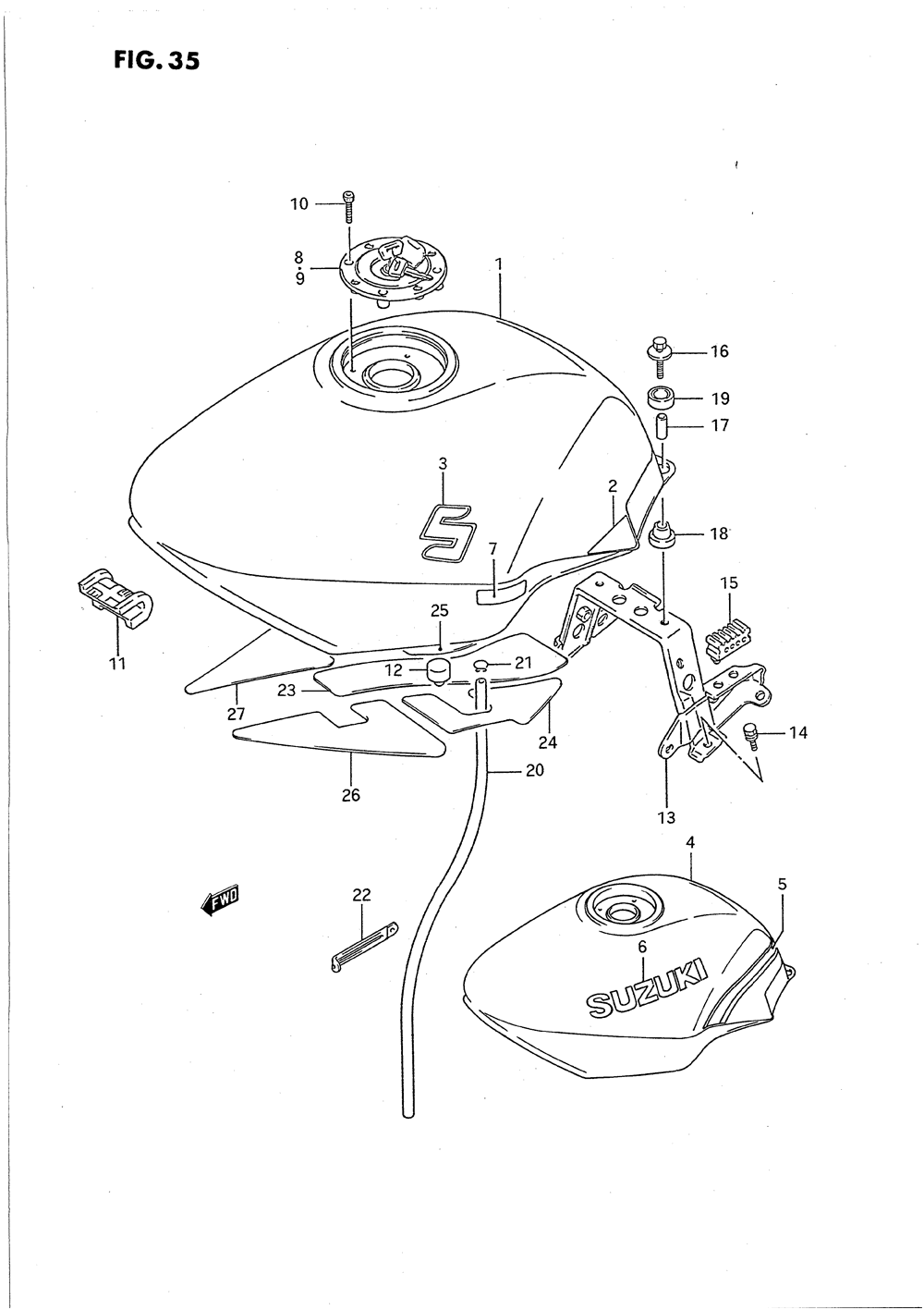

Fuel tank (model k/l)

Suzuki GSX750F KATANA

Fuel tank (model k/l)

#

oem код

название

цена

1-1

44110-19C22-YD8

Tank Assy, Fuel

Tank Assy, Fuel

1-2

44110-19C11-YD8

Топливный бак

Топливный бак

1-4

44100-20C30-0FP

2-1

68110-20C00-13L

2-2

68110-20C00-019

3-1

68111-19C00-742

.emblem (silver)

.emblem (silver)

3-2

68111-19C00-019

.emblem (black)

.emblem (black)

4-2

44100-20C70-3CH

4-4

44100-20C70-3WC

5-1

68115-20C01-3CG

Tape, Fuel Tank

Tape, Fuel Tank

5-2

68115-20C01-3VV

6-1

68111-43400-13L

Эмблема

Эмблема

6-2

68111-43400-17U

.emblem (gray)

.emblem (gray)

7-1

7-2

8-1

Cap Set, Fuel Tank

Cap Set, Fuel Tank

9-1

Cap Set, Fuel Tank

Cap Set, Fuel Tank

10

Болт

Болт

11

Cushion, Fuel Tank Front

Cushion, Fuel Tank Front

12

.cushion, Front

.cushion, Front

13

Bracket, Rear

Bracket, Rear

14

Болт

Болт

15

.cushion, Center (40x20x15)

.cushion, Center (40x20x15)

16

Болт

Болт

17

Проставка

Проставка

18

Cushion, Rear Lower

Cushion, Rear Lower

19

Cushion, Rear Upper

Cushion, Rear Upper

20

Hose, Water Drain

Hose, Water Drain

21

Зажим

Зажим

22

Clamp, L:120

Clamp, L:120

23

Heat Shield, Center

Heat Shield, Center

24

Heat Shield, Rear Lh

Heat Shield, Rear Lh

25

Heat Shield, Rear Rh

Heat Shield, Rear Rh

26

Heat Shield, Front Lh

Heat Shield, Front Lh

27

Heat Shield, Front Rh

Heat Shield, Front Rh
