ГОЛОВКА ЦИЛИНДРА Оригинальные запчасти для мотоциклов Suzuki GSX750F KATANA (1989)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

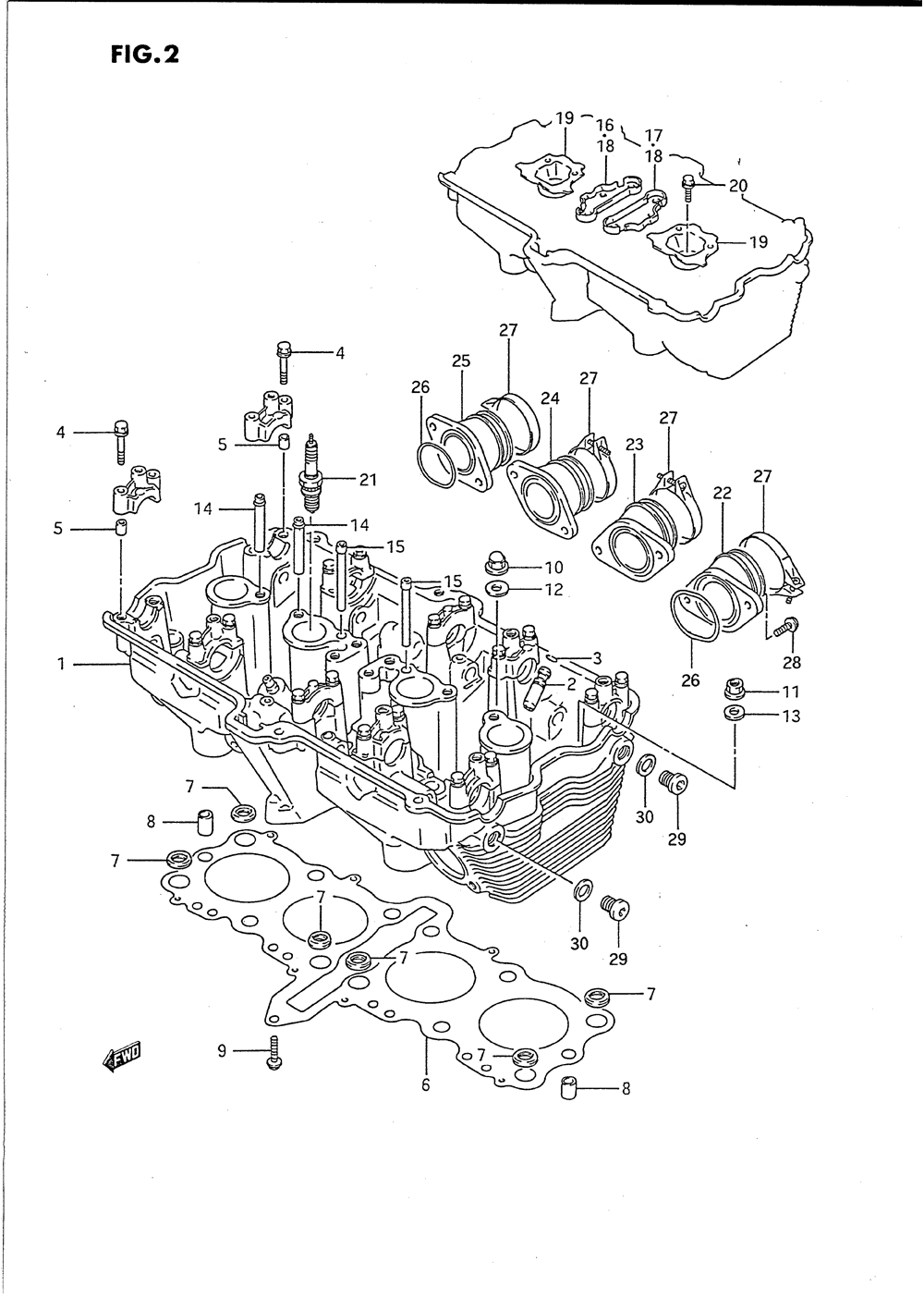

ГОЛОВКА ЦИЛИНДРА

Suzuki GSX750F KATANA

ГОЛОВКА ЦИЛИНДРА

#

oem код

название

цена

1-1

Head Assy, Cylinder

Head Assy, Cylinder

1-2

Head Assy, Cylinder

Head Assy, Cylinder

2

Guide, Valve (os:0.3)

Guide, Valve (os:0.3)

3

.snap Ring

.snap Ring

4

.bolt (6x39)

.bolt (6x39)

5

Штифт

Штифт

6

Прокладка цилиндра

Прокладка цилиндра

7

O Ring, Cylinder Head

O Ring, Cylinder Head

8

Штифт

Штифт

9-1

Болт

Болт

10

Гайка

Гайка

11-1

Гайка

Гайка

12

.gasket, Crankcase Bolt

.gasket, Crankcase Bolt

13

Washer (10.5x22x2.3)

Washer (10.5x22x2.3)

14

Pipe, Oil No.1, 2

Pipe, Oil No.1, 2

15

Pipe, Oil No.3

Pipe, Oil No.3

16

Plate, Oil Pipe No.1

Plate, Oil Pipe No.1

19

Plate, Oil Pipe,no.2

Plate, Oil Pipe,no.2

20-1

Bolt, Under Oil Seal Plate

Bolt, Under Oil Seal Plate

20-2

Болт 6x12

Болт 6x12

21-1

Spark Plug (ngk, Jr9c)

Spark Plug (ngk, Jr9c)

21-2

Spark Plug (ngk, Jr8c)

Spark Plug (ngk, Jr8c)

22

Pipe, Intake, Lh

Pipe, Intake, Lh

23

Pipe, Intake, Ml

Pipe, Intake, Ml

24

Pipe, Intake, Mr

Pipe, Intake, Mr

25

Pipe, Intake, Rh

Pipe, Intake, Rh

26

.o Ring, Intake Pipe

.o Ring, Intake Pipe

27

Clamp, Carb

Clamp, Carb

28-1

Винт

Винт

28-2

Винт

Винт

29

.plug, Oil Gallery

.plug, Oil Gallery

30

.gasket (14.1x18x1.5)

.gasket (14.1x18x1.5)
