ТРАНСМИССИЯ

Suzuki GSX-R1100 1986-1988

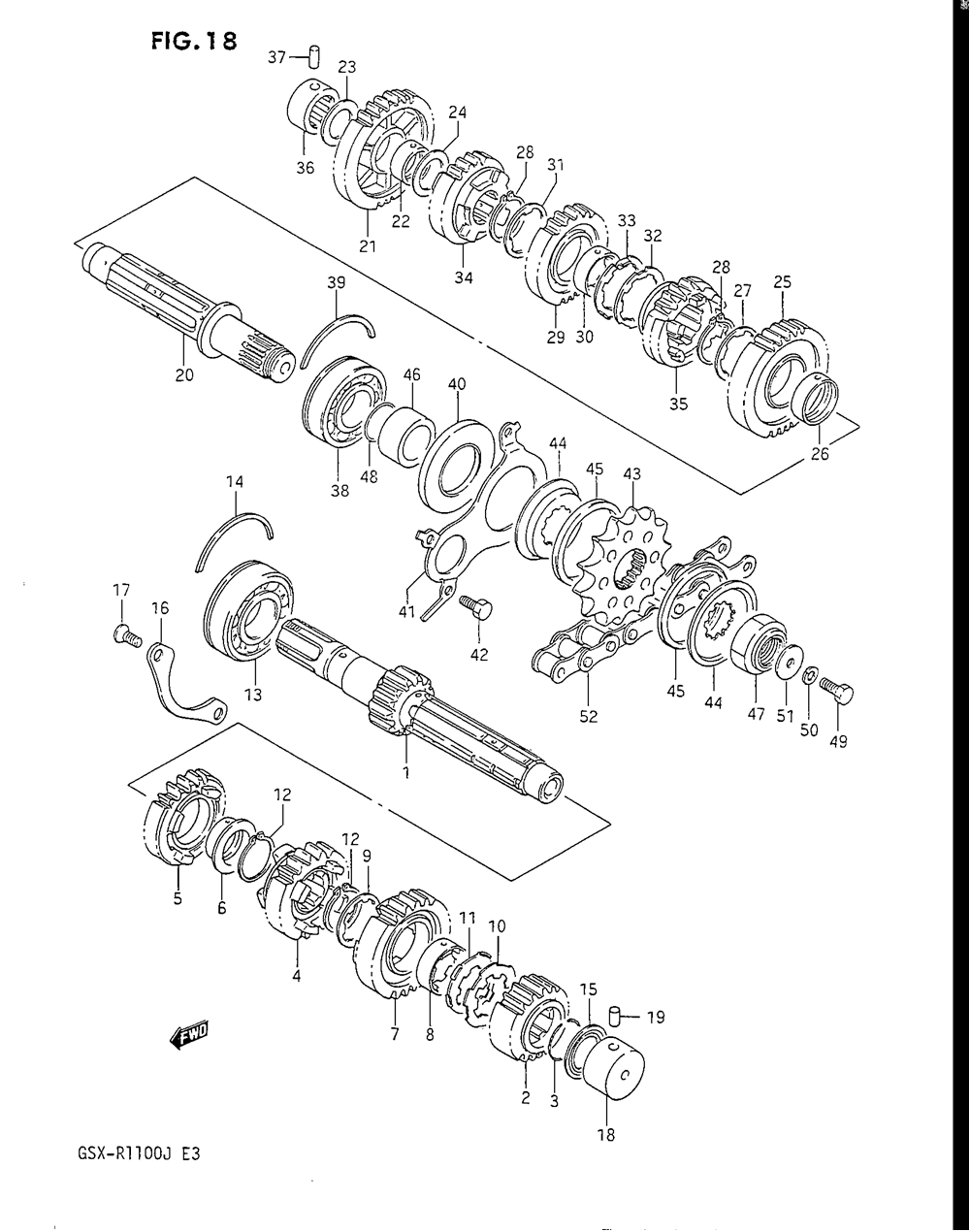

ТРАНСМИССИЯ

#

oem код

название

цена

1-1

2

Gear, 2nd Drive (nt:19)

Gear, 2nd Drive (nt:19)

3

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

4-1

Gear, 3rd Drive,

Gear, 3rd Drive,

5

Gear, 4th Drive,

Gear, 4th Drive,

6

Bush, 2nd Driven

Bush, 2nd Driven

7

Gear, 5th Drive (nt:23)

Gear, 5th Drive (nt:23)

8

Bush, 6th Drive

Bush, 6th Drive

9

Washer, 3rd Driven

Washer, 3rd Driven

10

Lock Washer, 3rd Driven

Lock Washer, 3rd Driven

11

Washer, 3rd Driven Lock

Washer, 3rd Driven Lock

12

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

13

Bearing, Lh (25x62x17)

Bearing, Lh (25x62x17)

14

C Ring, Cntr Shaft Brg Rh

C Ring, Cntr Shaft Brg Rh

15

Сальник

Сальник

16

Retainer, Cntr Shaft

Retainer, Cntr Shaft

17

Винт

Винт

18

Bearing, Cntr Shaft, Lh

Bearing, Cntr Shaft, Lh

19

Штифт

Штифт

20-1

Driveshaft

Driveshaft

21

Gear, 1st Driven (nt:31)

Gear, 1st Driven (nt:31)

22

Bush, 1st Driven

Bush, 1st Driven

23

Шайба

Шайба

24

Washer, Lh

Washer, Lh

25

Gear, 2nd Driven (nt:31)

Gear, 2nd Driven (nt:31)

26

Bush, 2nd Driven

Bush, 2nd Driven

27

Шайба

Шайба

28

Circlip Idle Drive Gear

Circlip Idle Drive Gear

29-1

Gear, 3rd Driven (nt:25)

Gear, 3rd Driven (nt:25)

30

Втулка

Втулка

31

Washer (28.1x38x1.0)

Washer (28.1x38x1.0)

32

Lock Washer, Lh

Lock Washer, Lh

33

Lock Washer, Rh

Lock Washer, Rh

34

Gear, 4th Driven

Gear, 4th Driven

35

Gear, 5th Driven (nt:21)

Gear, 5th Driven (nt:21)

36

Bearing, Drive Shaft Rh

Bearing, Drive Shaft Rh

37

Pin, Drive Shaft Brg Rh

Pin, Drive Shaft Brg Rh

38

Bearing, Lh

Bearing, Lh

40

Seal, Drive Shaft Oil

Seal, Drive Shaft Oil

41

Пластина

Пластина

42

Болт

Болт

43-1

Sprocket, Engine (nt:14)

Sprocket, Engine (nt:14)

44

Держатель

Держатель

45

Damper, Engine Sprocket

Damper, Engine Sprocket

46

Spacer (25x34x19)

Spacer (25x34x19)

47

Nut, Engine Sprocket

Nut, Engine Sprocket

48

.o Ring (d:1.0, Id:24.5)

.o Ring (d:1.0, Id:24.5)

49

Bolt, Fuel Cooler

Bolt, Fuel Cooler

50

.lock Washer

.lock Washer

51

Шайба

Шайба

52

27600-46E20-116

Chain, Drive (rk532gsv2x116le

Chain, Drive (rk532gsv2x116le
