Fuel tank (model n/p) Оригинальные запчасти для мотоциклов Suzuki GSX1100F 1988-1993 (1988)

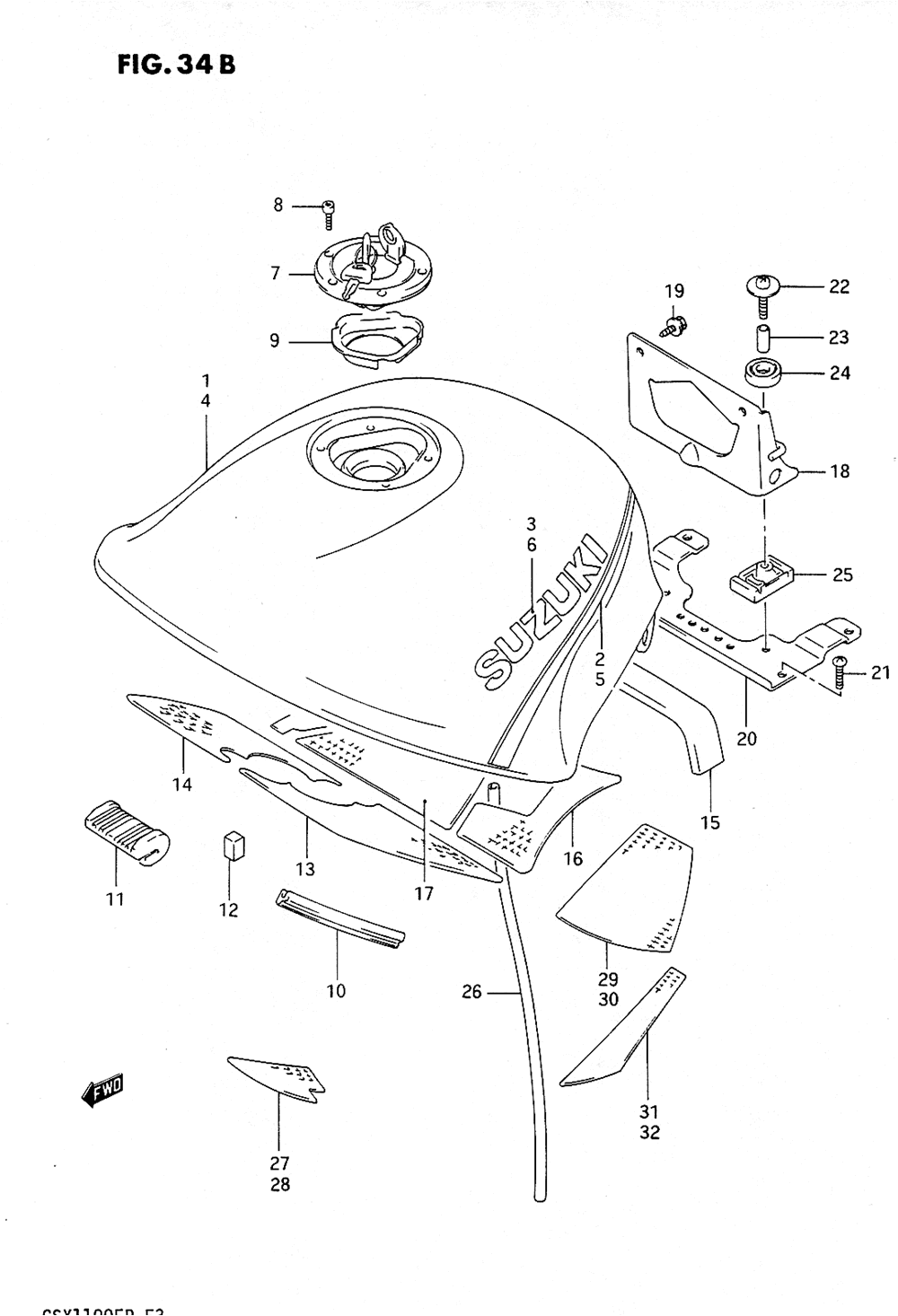

Fuel tank (model n/p)

Suzuki GSX1100F 1988-1993

oem код

название

цена

1-1

44100-48D21-32X

Tank Assy, Fuel

1-2

.tape, Fuel Tank

4-1

Tank Assy, Fuel

4-2

44100-48D72-K31

Tank Assy, Fuel

68115-48C00-L21

68111-24D00-23S

.emblem

7-1

44200-48810

Cap Set, Fuel Tank

7-2

Болт

Cover, Inlet

Molding, Cover

Cushion, Fuel Tank Front

44545-48B10

Cushion, Fuel Tank Side

44196-48B00

Heat Shield, Front Lh

44197-48B00

Heat Shield, Front Rh

44193-48B01

Heat Shield, Lower Rear

44198-48B00

Heat Shield, Rear Lh

44199-48B00

Heat Shield, Rear Rh

44550-48B10

Кронштейн, задний верхний

09138-06038

Bolt, Rear Upper

44570-48B00

Кронштейн, задний нижний

Винт

Bolt, Fuel Tank Rear

Проставка

Cushion, Rear Upper

Cushion, Rear Lower

Hose, Water Drain (l:2000->670
