КОЛЕНЧАТЫЙ ВАЛ Оригинальные запчасти для мотоциклов Suzuki GSX600F KATANA 1988-1996 (1988)

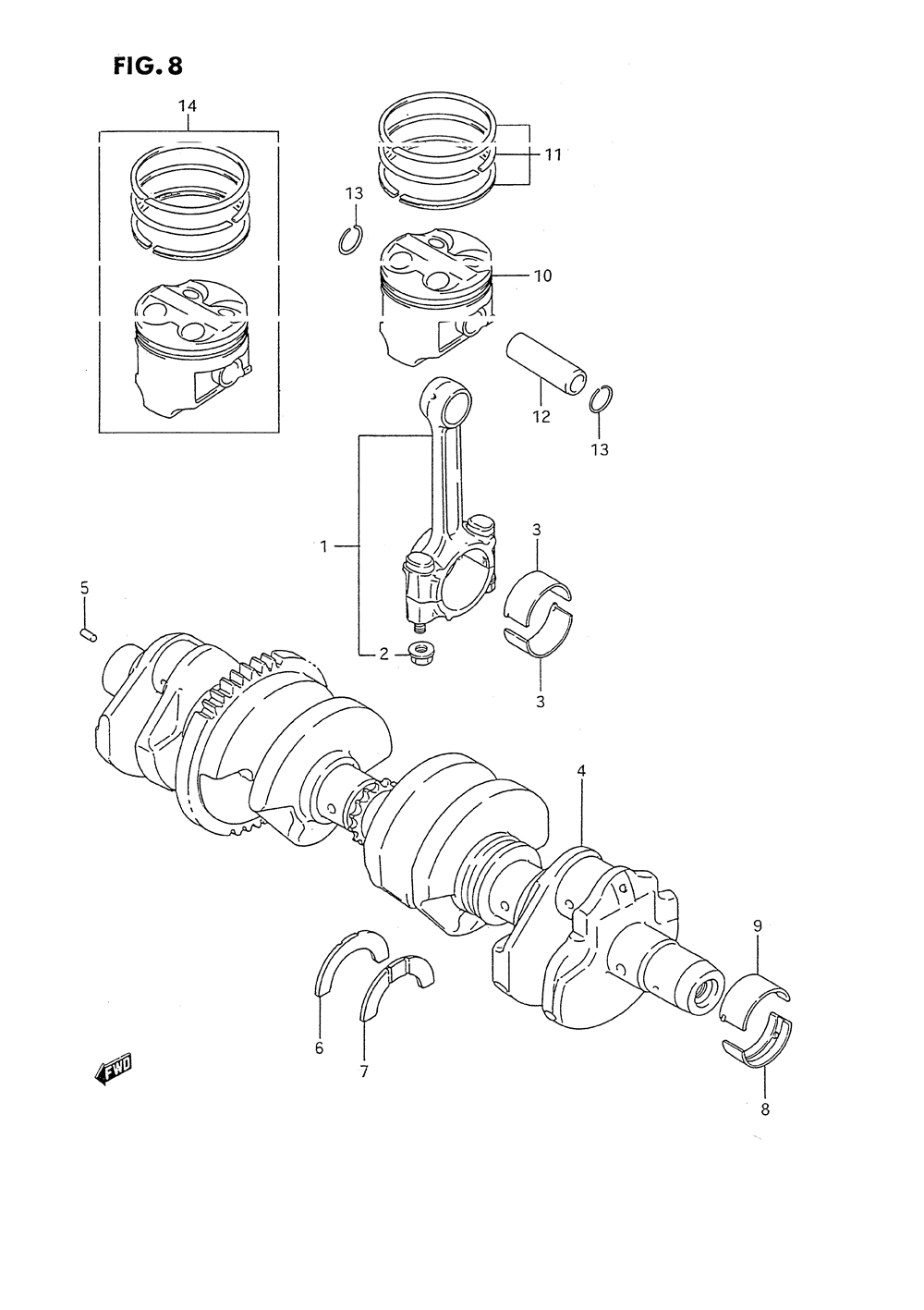

КОЛЕНЧАТЫЙ ВАЛ

Suzuki GSX600F KATANA 1988-1996

oem код

название

цена

12160-27A14

Rod Assy, Connecting

09159-08033

Гайка

3-1

12164-17E01-0A0

Вкладыш шатуна (зеленый)

3-2

12164-17E01-0B0

Вкладыш шатуна (черный)

3-3

12164-17E01-0C0

Bearing, Crank Pin (brown)

3-4

12164-17E01-0D0

Bearing, Crank Pin (yellow)

4-1

12000-47811

(model J/k/l/m<-12220-47b02)

4-2

12000-47831

Crankshaft Set (model N/p~e No.149892)

4-3

12000-47841

(model P/r/se No.149893~)

4-4

12000-26831

Crankshaft Set

04221-04089

Штифт

12228-43414

.bearing, Thrust Lh (green)

7-1

12228-43411

.bearing, Thrust Lh (red)

7-2

12228-43412

.bearing, Thrust Lh (black)

7-3

12228-43413

.bearing, Thrust Lh (blue)

7-5

12228-43415

.bearing, Thrust Lh (yellow)

7-6

12228-43416

.bearing, Thrust Lh (white)

8-1

12229-27A00-0A0

Bearing, Crankshaft (green)

8-2

12229-27A00-0B0

Bearing, Crankshaft (black)

8-3

12229-27A00-0C0

Bearing, Crankshaft (brown)

8-4

12229-27A00-0D0

Bearing, Crankshaft (yellow)

9-1

12229-27A10-0A0

Bearing, Crankshaft (green)

9-2

12229-27A10-0B0

Bearing, Crankshaft (black)

9-3

12229-27A10-0C0

Bearing, Crankshaft (brown)

9-4

12229-27A10-0D0

Bearing, Crankshaft (yellow)

10-1

ПОРШЕНЬ

КОЛЬЦА ПОРШНЕВЫЕ

ПАЛЕЦ ПОРШНЕВОЙ

Зажим

14-1

12100-19C20-050

Piston Set(os:0.5)

14-2

12100-19C20-100

Piston Set(os:1.0)
