Frame cover (model n/p/r) Оригинальные запчасти для мотоциклов Suzuki VS1400GLP 1987-1995 (1988)

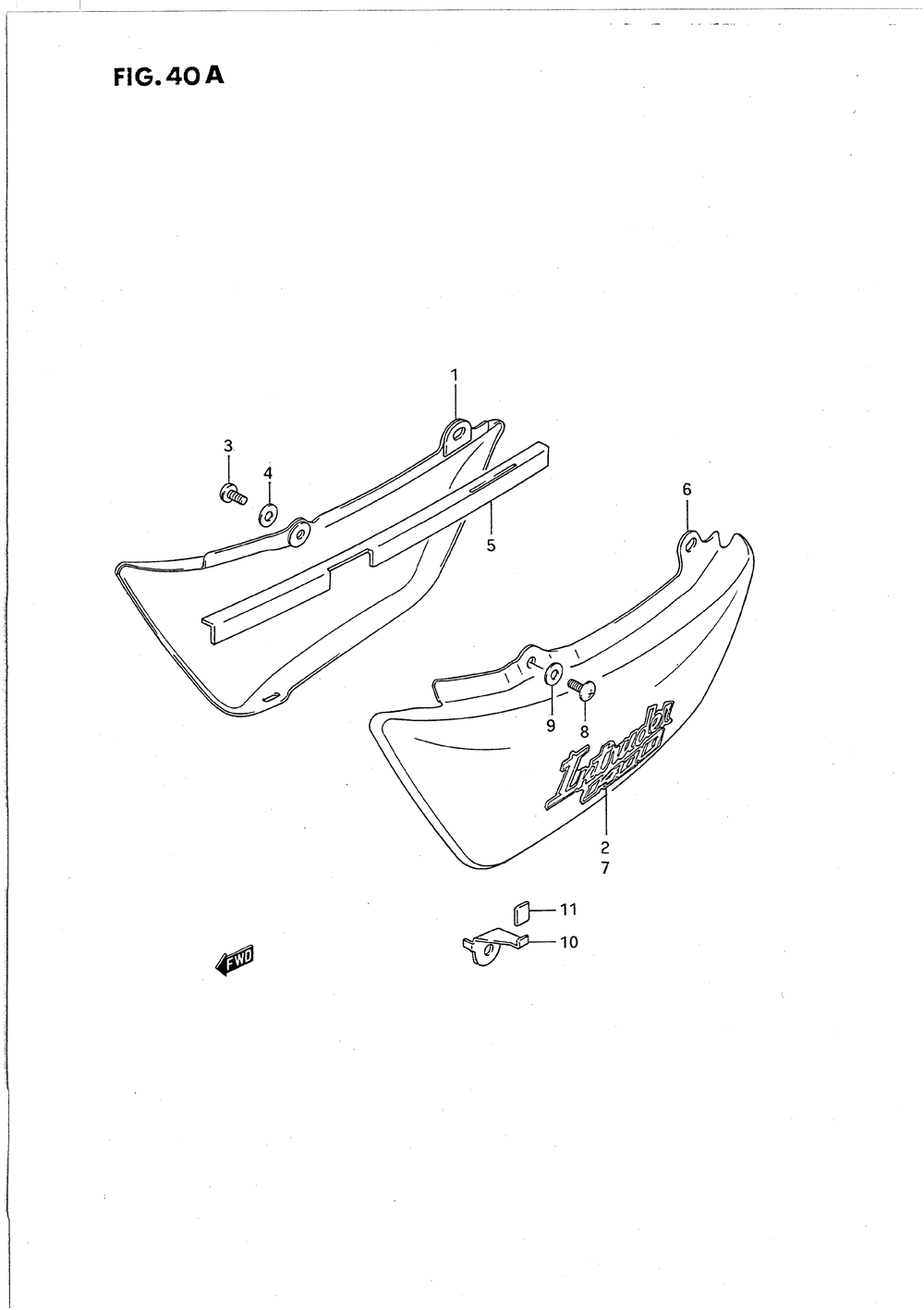

Frame cover (model n/p/r)

Suzuki VS1400GLP 1987-1995

oem код

название

цена

1-1

47100-38B11-33J

Cover, Frame Rh (black)

1-2

47100-38B10-37X

Cover, Frame Rh (black)

1-4

47100-38B11-26X

Cover Assy, Fram

1-5

47110-38B00-20F

Cover, Frame Rh (maroon)

1-6

47100-38B11-2BX

Cover, Frame Rh (maroon)

2-1

68131-38B11-1KP

Emblem Frame, Co

2-2

68131-38B11-A2R

2-3

68131-38B11-C1M

.emblem

2-4

68131-38B11-1KR

Emblem, Frame C

2-5

68131-38B11-A6R

Emblem, Frame C

2-6

68131-38B11-C1L

.emblem

3-1

02142-0612A

Винт

09160-06084

Шайба (6.5x18x1.6)

47165-38B00

Протектор

6-1

47210-38B00-YAY

Cover, Frame Lh (black)

6-2

47200-38B11-37X

Cover Assy, Fram

6-4

47200-38B11-26X

Cover Assy, Fra

6-5

47210-38B00-20F

Cover, Frame Lh (maroon)

6-6

47200-38B11-2BX

Cover, Frame Lh (maroon)

47171-38B00

Hook, Frame Cover Lh

47175-38B00

Cushion, Hook
