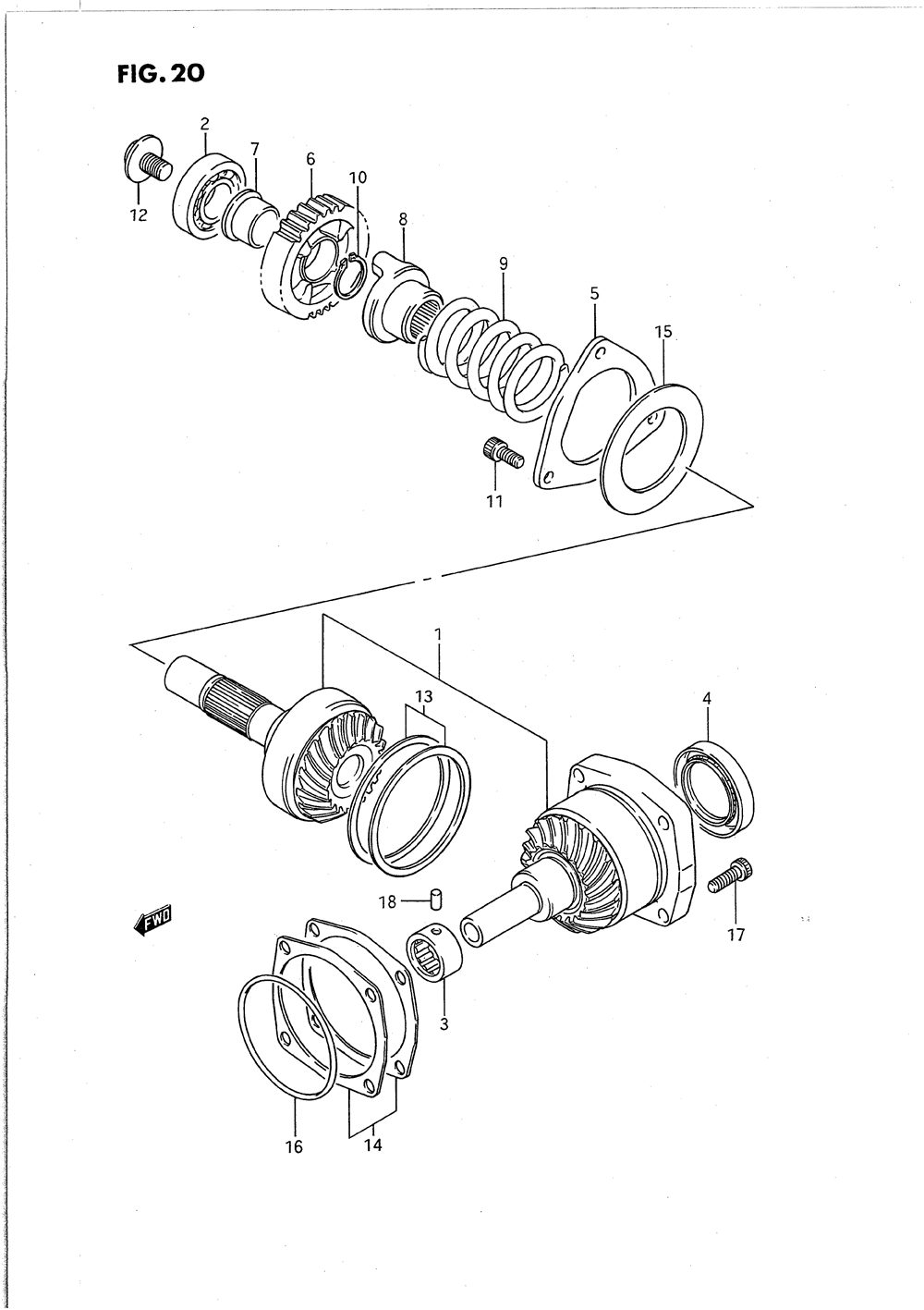

Secondary drive gear

Suzuki VS1400GLP 1987-1995

Secondary drive gear

#

oem код

название

цена

1

Gear & Housing Set, Secondary

Gear & Housing Set, Secondary

2

Bearing, Rh (25x62x17)

Bearing, Rh (25x62x17)

3

.bearing (20x34x16)

.bearing (20x34x16)

4

.oil Seal (44x68x8)

.oil Seal (44x68x8)

5

Stopper, Bearing

Stopper, Bearing

6

Gear, Over Driving Driven

Gear, Over Driving Driven

7

Втулка

Втулка

8

Dog, Output Cam

Dog, Output Cam

9

10

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

11-1

11-2

Болт

Болт

12

Болт

Болт

13

Shim Set, Sec Drive (t:1.1/1.15/1.2/1.25/1.3/1.35/1.4)

Shim Set, Sec Drive (t:1.1/1.15/1.2/1.25/1.3/1.35/1.4)

14

Shim Set, Sec Drive

Shim Set, Sec Drive

15

16

O Ring, Bearing Housing

O Ring, Bearing Housing

17-1

Bolt, Speed Rotor

Bolt, Speed Rotor

18

Штифт

Штифт
