Frame cover (model g/h) Оригинальные запчасти для мотоциклов Suzuki GSX-R1100 1986-1988 (1986)

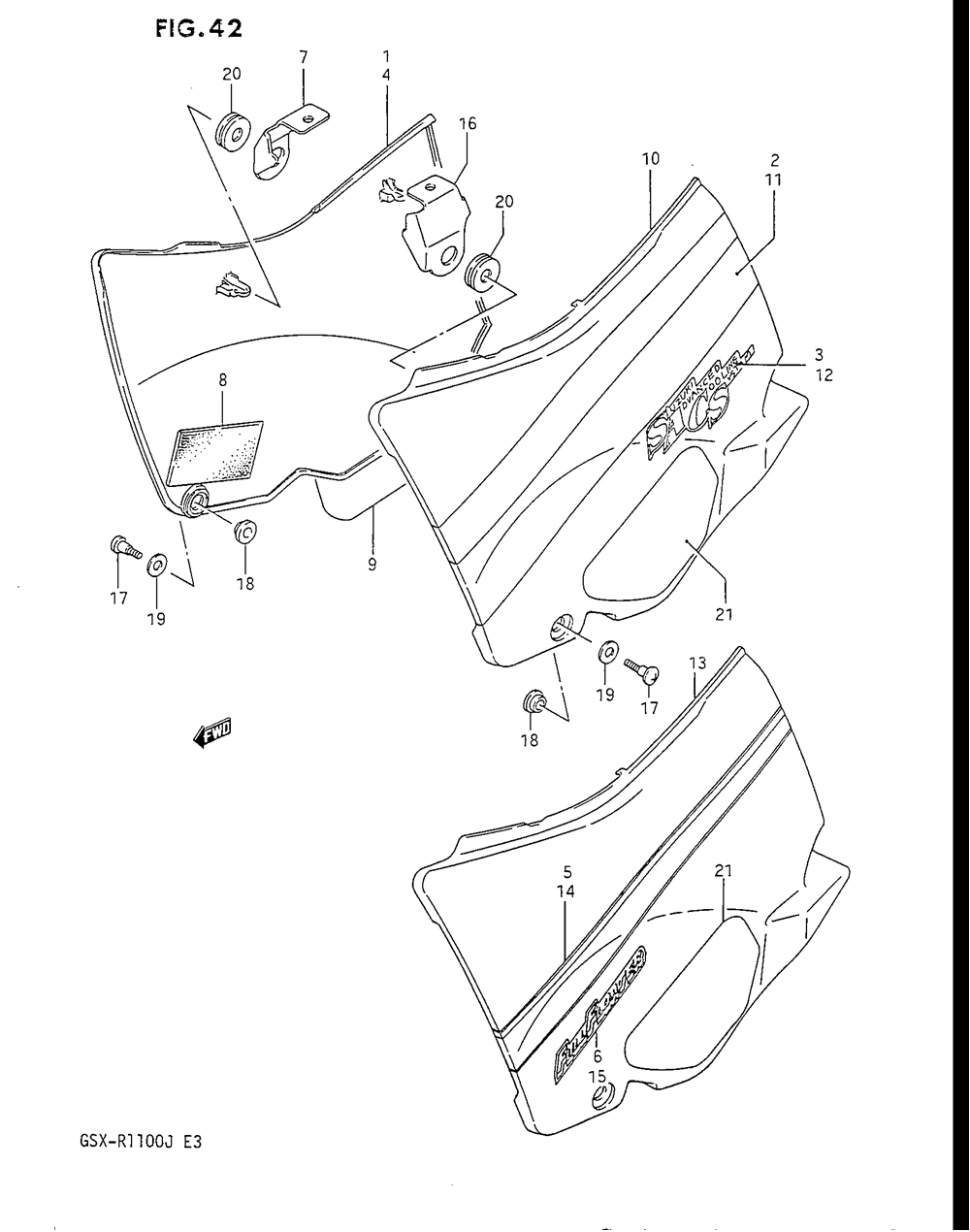

Frame cover (model g/h)

Suzuki GSX-R1100 1986-1988

oem код

название

цена

1-1

47110-06B00-8JV

1-2

47110-06B00-8JW

2-1

68130-06B00-8KA

.tape Set, Frame Cover Rh

2-2

68130-06B00-8KB

.tape Set, Frame Cover Rh

68131-27A00-7VR

.emblem

4-1

47110-06B10-9HD

Cover, Frame Rh (black/red)

4-2

47110-06B10-9HJ

5-1

68130-27A30-9HU

.tape Set, Frame Cover Rh

5-2

68130-27A30-9HT

.tape Set, Frame Cover Rh

6-1

68235-40A10-60K

6-2

68235-40A10-95K

7-1

47141-06B01

Holder, Frame Cover Rh

47161-27A00

Опора

47261-27A00

Protector, Lh

10-1

47210-06B00-8JV

10-2

47210-06B00-8JW

Cover, Frame Lh (red/blue)

11-1

68140-06B00-8KA

11-2

68140-06B00-8KB

13-1

47210-06B10-9HD

Cover, Frame Lh (black/red)

13-2

47210-06B10-9HJ

14-1

68140-27A30-9HU

14-2

68140-27A30-9HT

.tape Set, Frame Cover Lh

16-1

47171-06B01

Holder, Frame Cover Lh

09139-06044

Винт

08322-0108A

Washer, Seat Damper Upper

09320-08043

Подушка

09320-08018

Cushion, Brace
