Secondary drive gear Оригинальные запчасти для мотоциклов Suzuki GV1400GD, GT, GC, 1986-1988 (1986)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

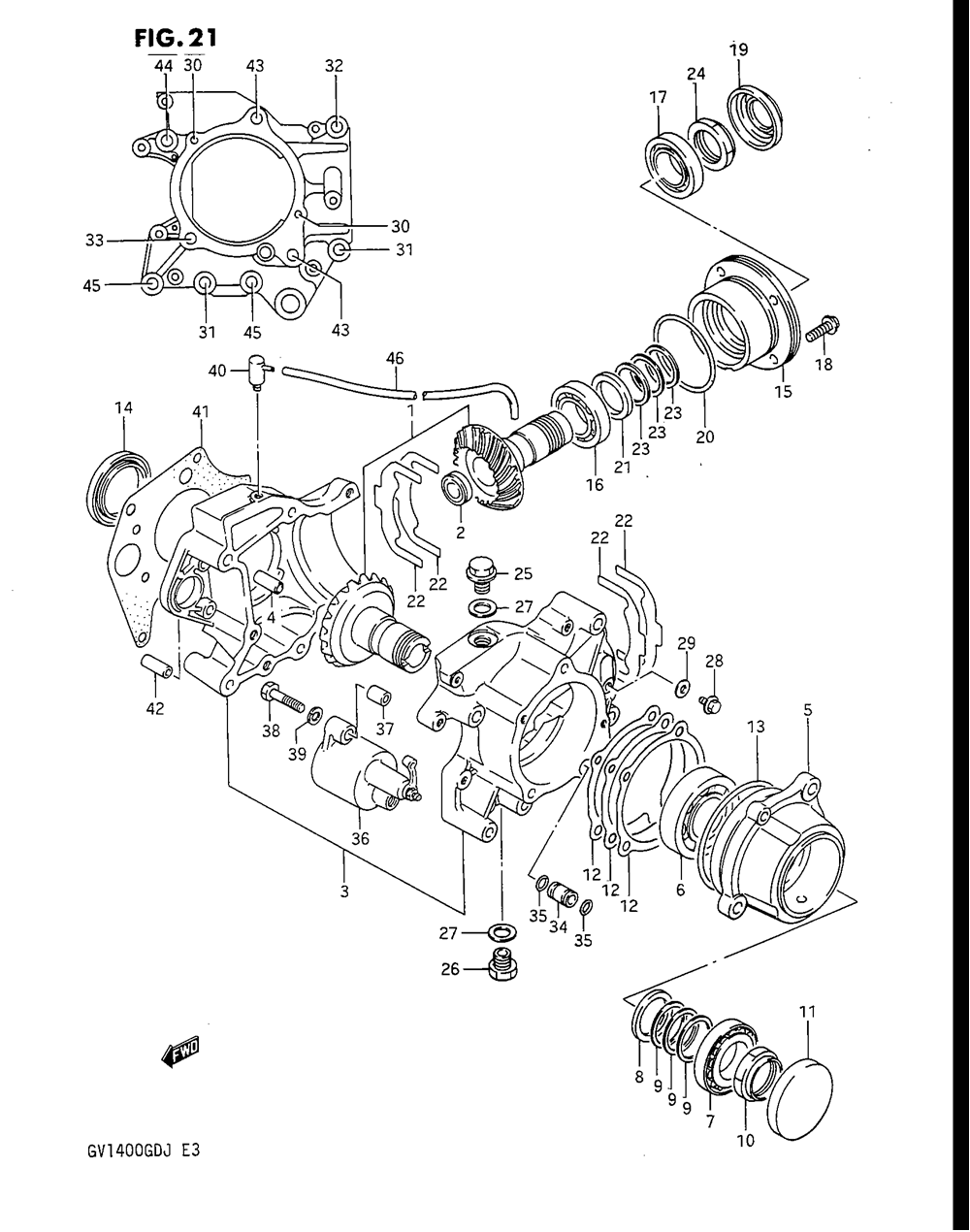

Secondary drive gear

Suzuki GV1400GD, GT, GC, 1986-1988

Secondary drive gear

#

oem код

название

цена

1

Gear, Secondary

Gear, Secondary

2

Plug, Secondary

Plug, Secondary

3

4

.pin (11x20)

.pin (11x20)

5

6

.bearing, Rh

.bearing, Rh

7

.bearing, Rear

.bearing, Rear

8

.spacer (32x40x3)

.spacer (32x40x3)

9-1

9-2

.shim (t:1.62)

.shim (t:1.62)

9-3

.shim (t:1.64)

.shim (t:1.64)

9-4

.shim (t:1.66)

.shim (t:1.66)

9-5

.shim (t:1.68)

.shim (t:1.68)

9-6

.shim (t:1.70)

.shim (t:1.70)

9-7

.shim (t:1.80)

.shim (t:1.80)

9-8

.shim (t:1.90)

.shim (t:1.90)

9-9

.shim (t:2.00)

.shim (t:2.00)

10

11

Заглушка

Заглушка

12-1

24934-24A02-030

12-2

24934-24A02-035

12-3

24934-24A02-040

12-4

24934-24A02-050

12-5

24934-24A02-060

13

.o Ring (d:3.5, Id:73.5)

.o Ring (d:3.5, Id:73.5)

14

.oil Seal

.oil Seal

15

16

.bearing, Front

.bearing, Front

18

..bolt, Upper

..bolt, Upper

19

Oil Seal, Second

Oil Seal, Second

20

O Ring, Rr Axle Housing Rear

O Ring, Rr Axle Housing Rear

21

22-1

24945-24A00-030

22-2

24945-24A00-035

22-3

24945-24A00-040

22-4

24945-24A00-050

22-5

24945-24A00-060

24

25

Plug, Oil Drain

Plug, Oil Drain

26

Plug, Oil Drain

Plug, Oil Drain

27

.gasket (14.1x18x1.5)

.gasket (14.1x18x1.5)

28

Болт

Болт

29

Шайба

Шайба

30

Болт

Болт

31

Болт

Болт

32

33

.bolt (l:95)

.bolt (l:95)

34

35

Кольцо

Кольцо

36

.cylinder, Clutch Release

.cylinder, Clutch Release

37

Pin, Cl Rlse Cyl

Pin, Cl Rlse Cyl

38

Болт

Болт

39

Шайба-замок

Шайба-замок

40

Plug, Breather

Plug, Breather

41

24936-24A01-H17

Gasket, 2ndry Ge

Gasket, 2ndry Ge

42

Палец

Палец

43

.bolt (8x145)

.bolt (8x145)

44

.bolt (l:105)

.bolt (l:105)

45

Bolt, Upper

Bolt, Upper

46

09352-20503-600

Hose, Breather (l:600)

Hose, Breather (l:600)
