Carburetor (marked : 34013) Оригинальные запчасти для мотоциклов Suzuki GT550 1972 (1972)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

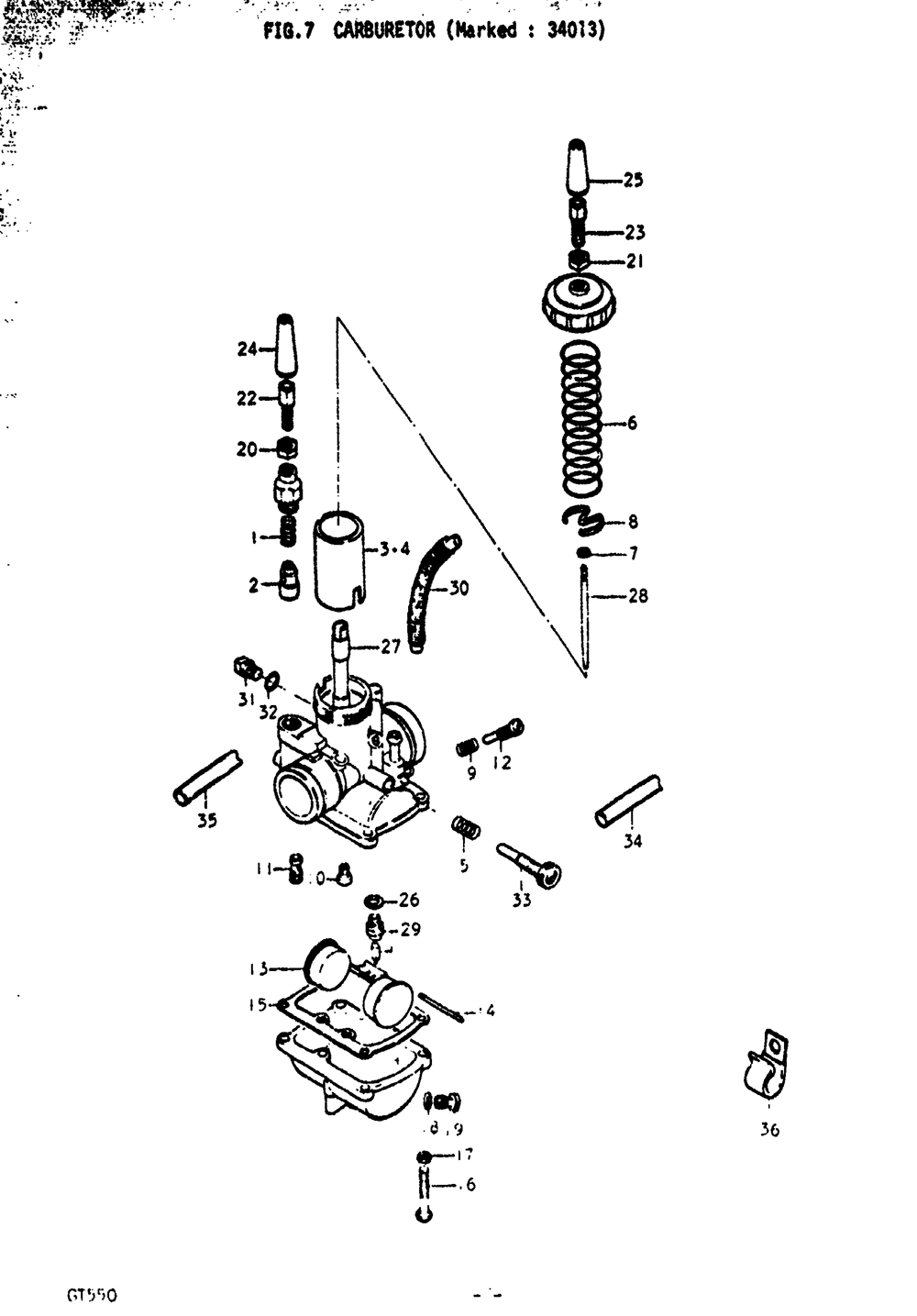

Carburetor (marked : 34013)

Suzuki GT550 1972

Carburetor (marked : 34013)

#

oem код

название

цена

1

Пружина

Пружина

2

.valve, Starter

.valve, Starter

3

4

5

Пружина

Пружина

6

7

.clip, Needle

.clip, Needle

8

.seat, Throttle Valve Spring

.seat, Throttle Valve Spring

9

Пружина

Пружина

10-1

.jet, Main (92.5)

.jet, Main (92.5)

10-2

..jet, Main

..jet, Main

11

.jet, Pilot (27.5)

.jet, Pilot (27.5)

12

.screw, Pilot Air Adjusting

.screw, Pilot Air Adjusting

13

.float

.float

14

Палец

Палец

15

.gasket, Float Chamber

.gasket, Float Chamber

16

Винт

Винт

17

Шайба-замок

Шайба-замок

18

.gasket, Drain Plug

.gasket, Drain Plug

19

.plug, Drain

.plug, Drain

20

21

..nut, Cable Adjuster Lock

..nut, Cable Adjuster Lock

22

..adjuster

..adjuster

23

24

..cap, Rubber

..cap, Rubber

25

26

..gasket

..gasket

27

28

29

.valve, Needle

.valve, Needle

30

31

.plug, Primary Main Jet

.plug, Primary Main Jet

32

.gasket, Valve Seat

.gasket, Valve Seat

33

.adjuster, Throttle Valve

.adjuster, Throttle Valve

36

Clamp, L:120

Clamp, L:120
