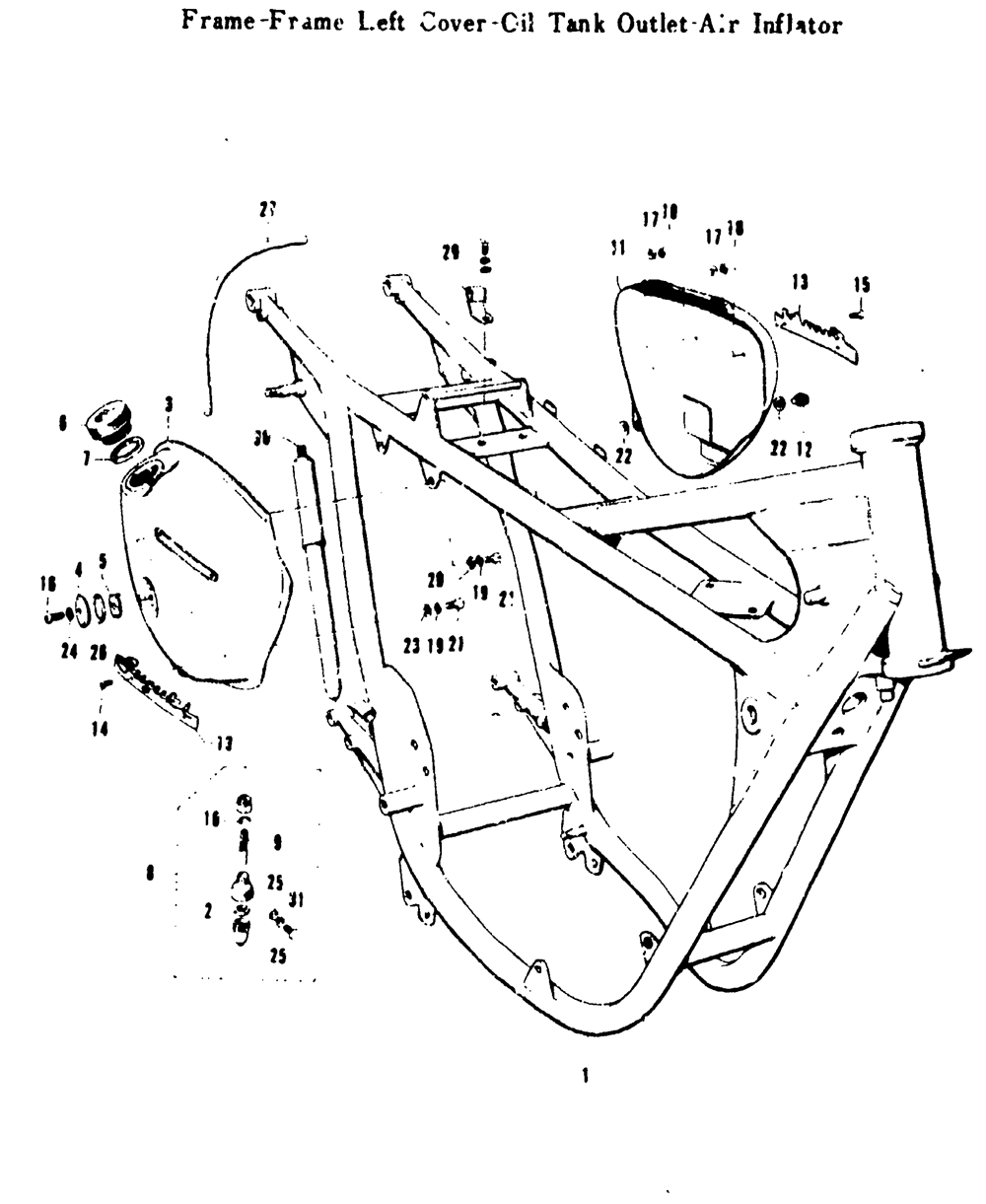

Frame - frame left cover - oil tank - oil tank outlet - air inflator

Suzuki T20 TC250 1969
Suzuki
#oem кодцена
1
41100-11002-019
3
44610-11004
4
44641-11000
5
44640-11843
Lens Set, Oil Level Inspection
6
44651-11040
Cap, Oil Tank
7
44661-11000
Gasket (tc250; I.d.=35(1.38).o.d.=46(1.81)t.=3.5(0.14))
8
44700-11827
9
44720-11030
Трубка
10
44733-11030
Gasket (tc250; I.d.=8.2(0.32).o.d.=13.5(0.53) T=2.5(0.10))
12
47230-11000
13
68131-11001
14
02112-03047
Винт
14-1
02111-03041
15-1
02111-03082
17
08310-00033
Гайка
17-1
08311-11031
18
09162-03001
Шайба-замок
19
08321-01067
.lock Washer
20
08322-01067
.washer, Throttle Rod
21
09100-06067
Болт
22
09152-06001
Гайка
23
09180-06007
24
09168-05001
.gasket (tc250; I.d.=5.0(0.20).o.d.=9.5(0.37tc250; I.d.=5.0(0.20).o.d.=9.5(0.37) T.=1.0(0.04))
25
09168-06004
Gasket (6.2x11x1.2) (tc250; I.d.=6.2(0.24), O.d.=1.2(0.47) T.=1.5(0.06))
26
09280-23001
.o Ring (tc250; I.d.=23(0.91), D.=3.0(0.12)tc250; I.d.=23(0.91), D.=3.0(0.12))
27
09351-50803-00B
Hose, Overflow
28
09360-06003
.union Bolt
