Transmission - drive chain Оригинальные запчасти для мотоциклов Suzuki T20 TC250 1969 (1969)

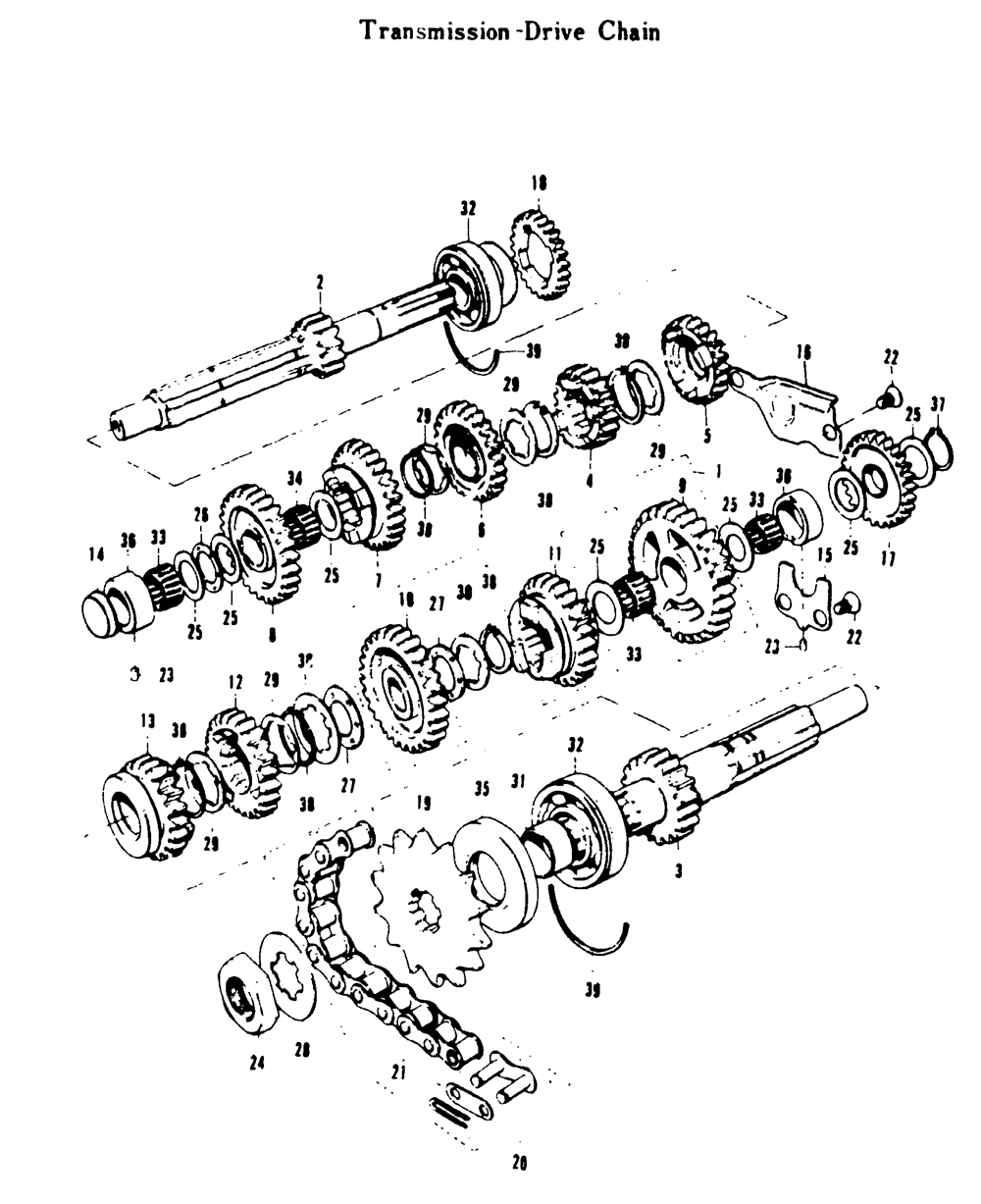

Transmission - drive chain

Suzuki T20 TC250 1969

oem код

название

цена

Engine Sprocket

19-1

19-2

19-3

19-4

.joint

Штифт

Гайка

.washer (tc250; I.d. =17(0.67). O.d. =29(1.14) T =1.0(0.04))

09160-22003

(tc250; I.d. =22(0.87), O.d. =34(1.3tc250; I.d. =22(0.87), O.d. =34(1.34) T =1.0(0.04))

09167-20009

Шайба

09167-22007

Washer (tc250; O.d. =29(1.14). T. =1.0(0.04tc250; O.d. =29(1.14). T. =1.0(0.04))

09167-22002

2nd Driven Gear Outer Thrust W (tc250; O.d. =34(1.34), T =1.0(0.04)tc250; O.d. =34(1.34), T =1.0(0.04))

09180-20003

(tc250; I D =20(0.79), O D =25(0.98)w =14.4(0.57))

09262-20003

Lh Cranksnaft Inner Bearing (tc250; I D =20(0.79), O D =52(2.05)tc250; I D =20(0.79), O D =52(2.05)w =15(0.59))

09263-17001

Bearing (tc250; I D =17(0.67), O D =21(0.83)tc250; I D =17(0.67), O D =21(0.83)w =12.8(0.50))

09263-17004

Bearing (17x21x9.8) (tc250; I D =17(0.67), O D =21(0.83)w =9.8(0.39))

09283-25002

Drive Shaft Oil Seal (tc250; I.d. =25(0.98), O.d. =52(2.05) W =7(0.28))

09300-21001

Bushing, Transmission Shaft (tc250; I.d. =21(0.83), O D =30(1.18) W =13(0.51))

09380-17001

Circlip, Lh

08331-3122A

Circlip, Final Driven

09390-52001

(tc250tc250)
