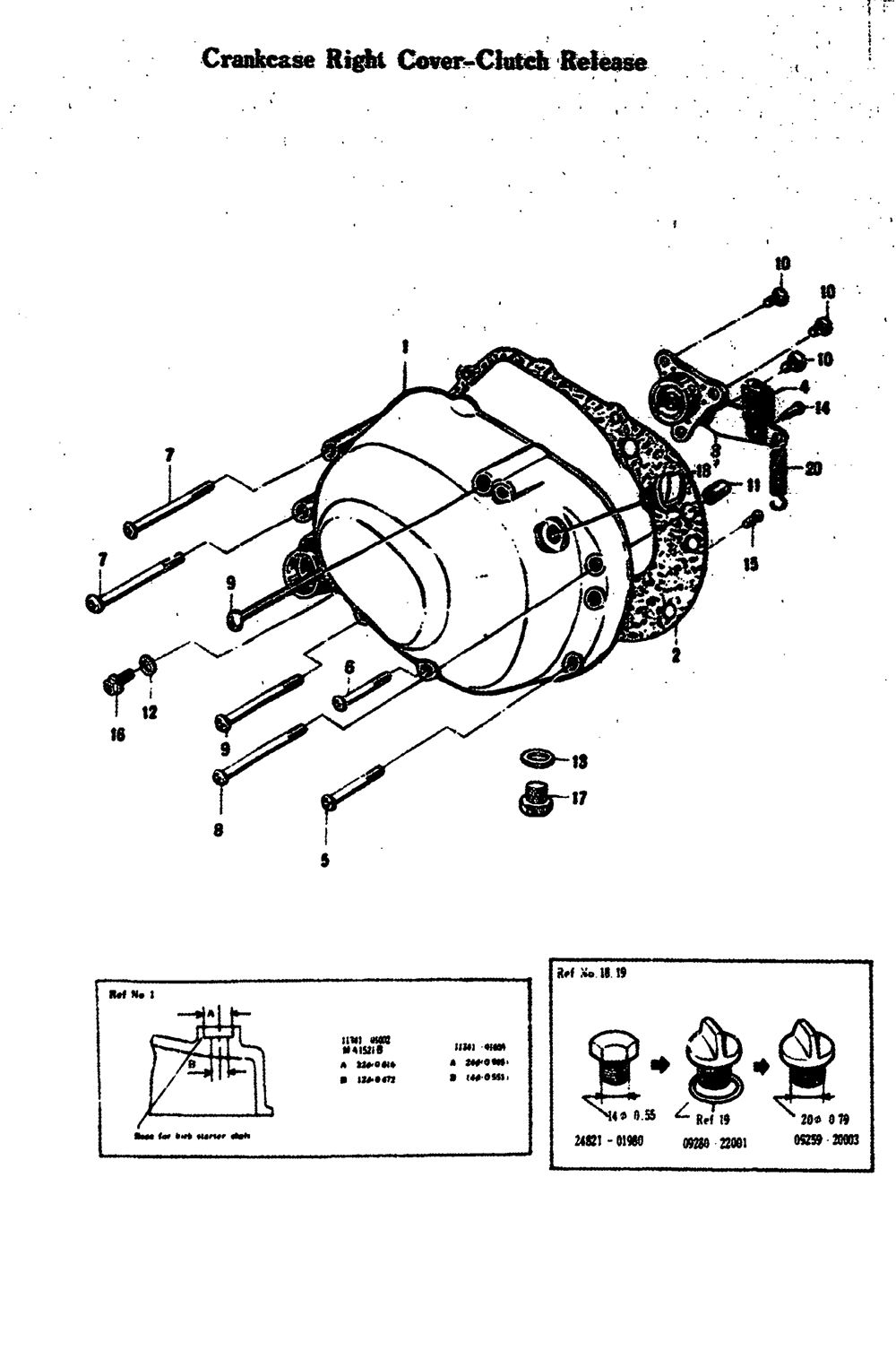

Crankcase right cover-clutch release

Suzuki 50 M15 M15D M12 1968

Crankcase right cover-clutch release

#

oem код

название

цена

2

Crankcase Right Cover Gasket

Crankcase Right Cover Gasket

3

(m12mark2, M15d, M12 Incluos 4 & 14)

(m12mark2, M15d, M12 Incluos 4 & 14)

5

Винт

Винт

6

Винт

Винт

7

Screw (6x55)

Screw (6x55)

8

Винт

Винт

9

Винт

Винт

10-1

12

Gasket (m12mark2, M15d, M12 Od=11=6.2(0.24) T=1.0(0.04))

Gasket (m12mark2, M15d, M12 Od=11=6.2(0.24) T=1.0(0.04))

13

.gasket (14.1x18x1.5) (m12mark2, M15d, M12 2 Pcso.m10-152331)

.gasket (14.1x18x1.5) (m12mark2, M15d, M12 2 Pcso.m10-152331)

14

15

Hook (m12mark2, M15d, M12 Od=4(0(040))

Hook (m12mark2, M15d, M12 Od=4(0(040))

17

.plug, Oil Drain

.plug, Oil Drain

18

Крышка заливная

Крышка заливная

19

O Ring, D:2.4, Id:21.8 (m12mark2,m15d,m12 Od=26.05) Id=21.8(0.86) T=2.rom E.no.m10-281163)

O Ring, D:2.4, Id:21.8 (m12mark2,m15d,m12 Od=26.05) Id=21.8(0.86) T=2.rom E.no.m10-281163)

20

Пружина

Пружина
