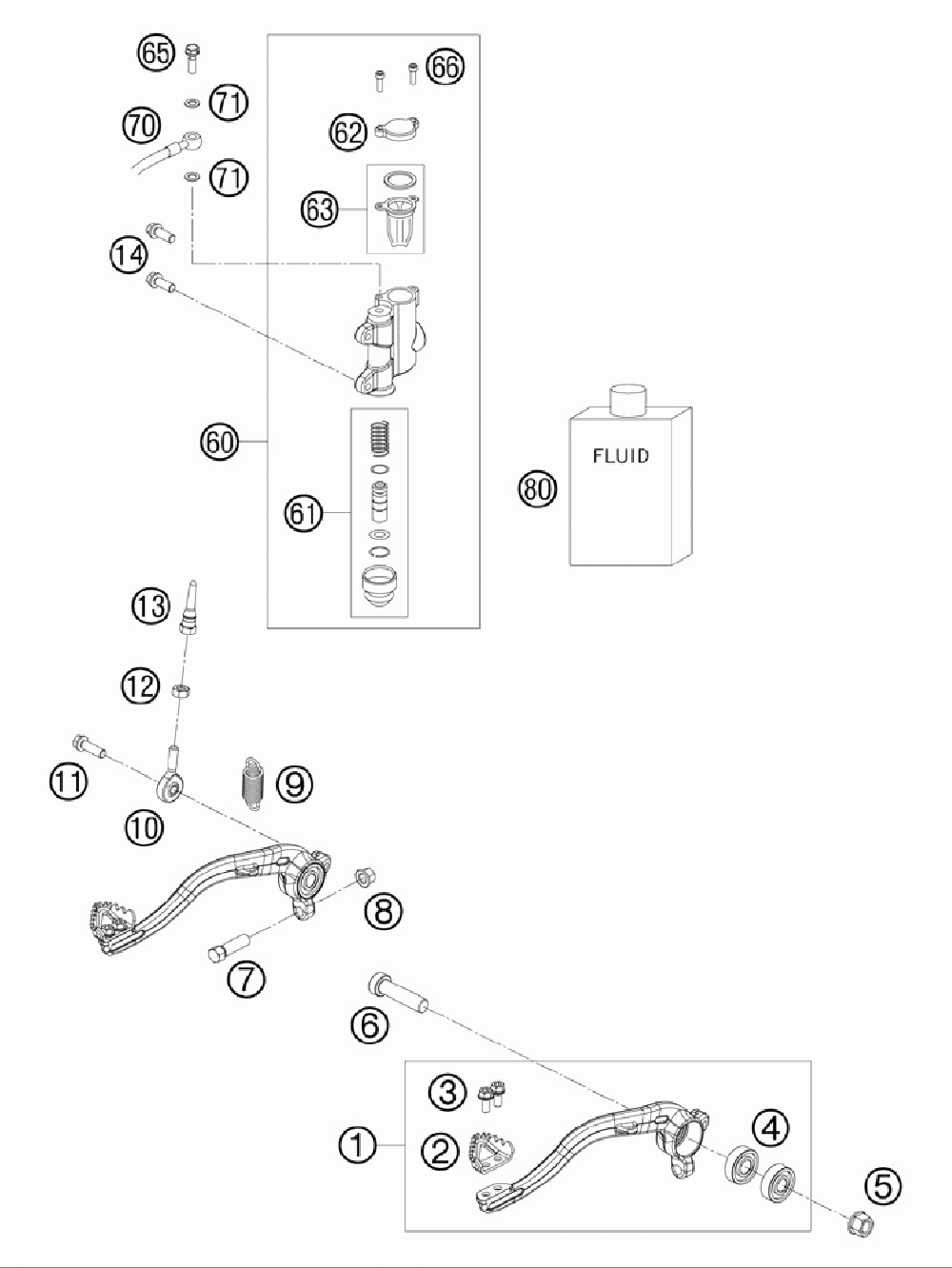

Тормозной цилиндр задний

KTM 65 SX CHASSIS
KTM
#oem кодцена
1
46213050044
Foot Brake Lever 65sx Cpl.
2
54813051000
Step Plate For Brake Lever
3
0025050126
Hh Collar Screw M5x12 Tx30
4
0625060001
Ball Bearing 6000/c3
5
54630044000
Collar Nut M10 Ws=13
6
0912100406
Ah Screw Din6912 M10x40 10.9
7
59001037000
Special Screw M8x26 Ws=10
8
46030045000
Collar Nut M8 Ws=10
9
54603062000
Return Spring For Brake Lever
10
54813055000
Swivel Head Ka6 03
11
0015060203
Hh Collar Screw M 6x20 Ws=8
12
0934060003
Hexagon Nut Din0934-m 6
13
47013056100
Pressure Rod 85 Sx 06
14
0025060166
Винт м6х16
60
47013060300
Foot Brake Cyl.r. Cpl. D=12 05
61
47013061100
Rep. Set Piston Rear D=12 2004
62
47013062000
Cylinder Cover Rear 85 Sx 03
63
47013063000
Gasket Cylinder Cover Rear 03
65
47013025000
Hollow Screw Brake Cylinder 03
66
0912040103
Ah.screw Din0912-m 4x10
70
46213070000
Brake Hose Rear 65 Sx 09
71
0770080019
O-ring 8, 00x1, 00 Formula
80
00062030000
Тормозная жидкость Dot5 0,25 ml
