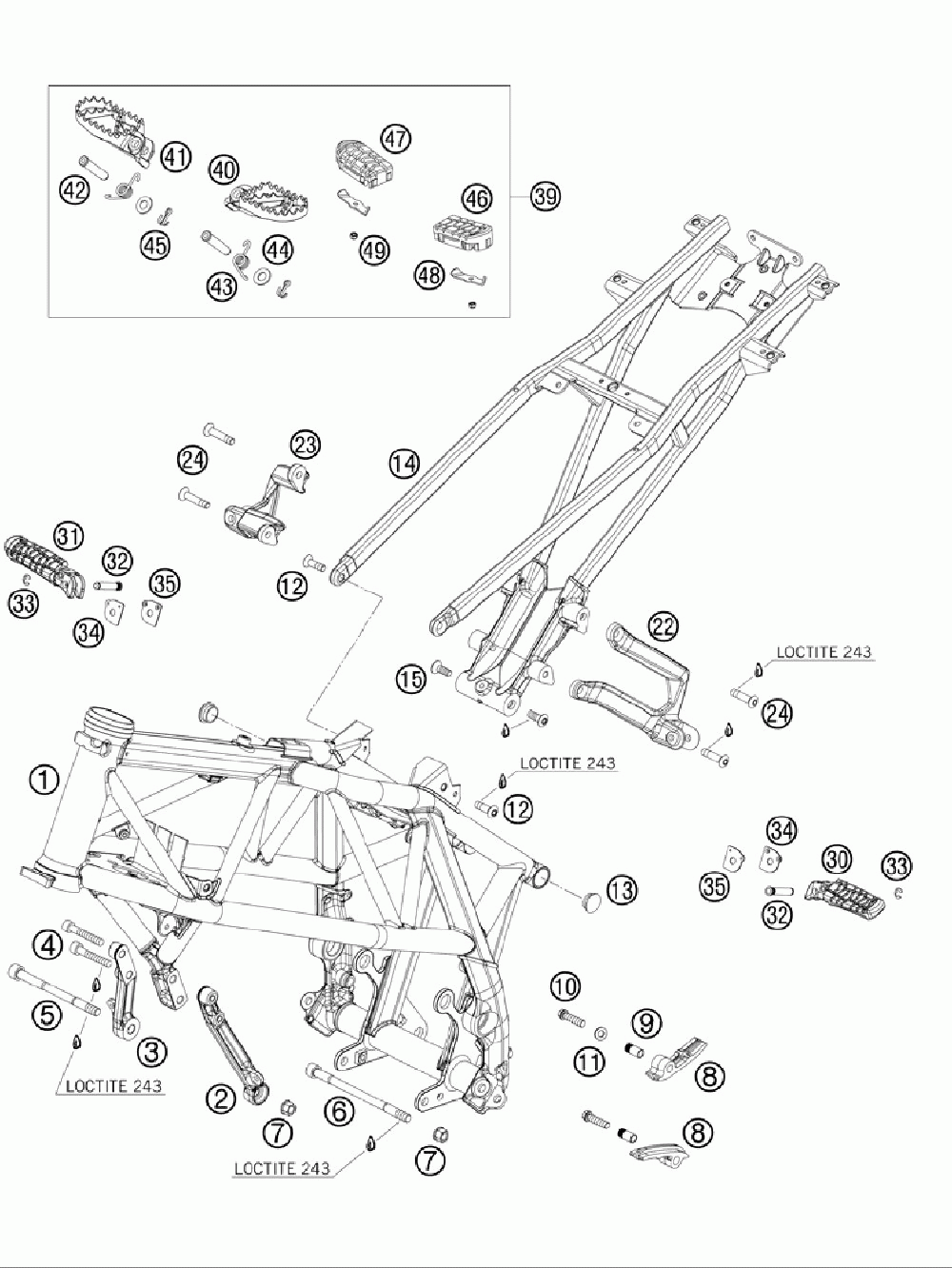

Рама

KTM 690 DUKE CHASSIS ORG

Рама

#

oem код

название

цена

2

Connection Bracket Eng. L/s 07

Connection Bracket Eng. L/s 07

3

Connection Bracket Eng. R/s 07

Connection Bracket Eng. R/s 07

4*

Cyl. Screw Din14579 M8x50 Ss

Cyl. Screw Din14579 M8x50 Ss

5

Special Screw M10x129 Hex8 08

Special Screw M10x129 Hex8 08

6

Винт

Винт

7

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

8

Chain Sliding Piece 03

Chain Sliding Piece 03

9

Bushing 8, 2x10x20

Bushing 8, 2x10x20

10

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

11

Washer Din0125-a 8, 4

Washer Din0125-a 8, 4

12

Flat Head Screw M. Isa45 M8x20

Flat Head Screw M. Isa45 M8x20

13

Plug Sfl28 05

Plug Sfl28 05

14

Sub Frame Black Matt

Sub Frame Black Matt

15

Countersunk Screw Isa45 M10x28

Countersunk Screw Isa45 M10x28

22

Footrest Bracket Rear L/s

Footrest Bracket Rear L/s

23

Footrest Bracket Rear R/s

Footrest Bracket Rear R/s

24

Counter-sunk Screw Isa45 M8x30

Counter-sunk Screw Isa45 M8x30

30

Footrest Cpl. L/s Rear 03

Footrest Cpl. L/s Rear 03

31

Footrest Cpl. R/s Rear 03

Footrest Cpl. R/s Rear 03

32

Bolt For Footrest Rear 03

Bolt For Footrest Rear 03

33

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

34

Engage Panel Footrest R/s 03

Engage Panel Footrest R/s 03

35

Engage Panel Footrest L/s 03

Engage Panel Footrest L/s 03

39

Footpeg L/s+r/s Cpl. 03

Footpeg L/s+r/s Cpl. 03

40

Foot Peg L/s Silver 02

Foot Peg L/s Silver 02

41

Foot Peg R/s Silver 02

Foot Peg R/s Silver 02

42

Bolt For Foot Ped 03

Bolt For Foot Ped 03

43

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

44

Washer Din0125-a10, 5

Washer Din0125-a10, 5

45

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

46

Footrest Rubber Front L/s 03

Footrest Rubber Front L/s 03

47

Footrest Rubber Front R/s 03

Footrest Rubber Front R/s 03

48

Closing Panel Front L/s R/s 03

Closing Panel Front L/s R/s 03

49

Самоконтрящаяся Гайка 0985-м DIN 5

Самоконтрящаяся Гайка 0985-м DIN 5
