Газо-распределительный механизм Оригинальные запчасти для мотоциклов KTM 990 ADVENTURE ENGINE (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

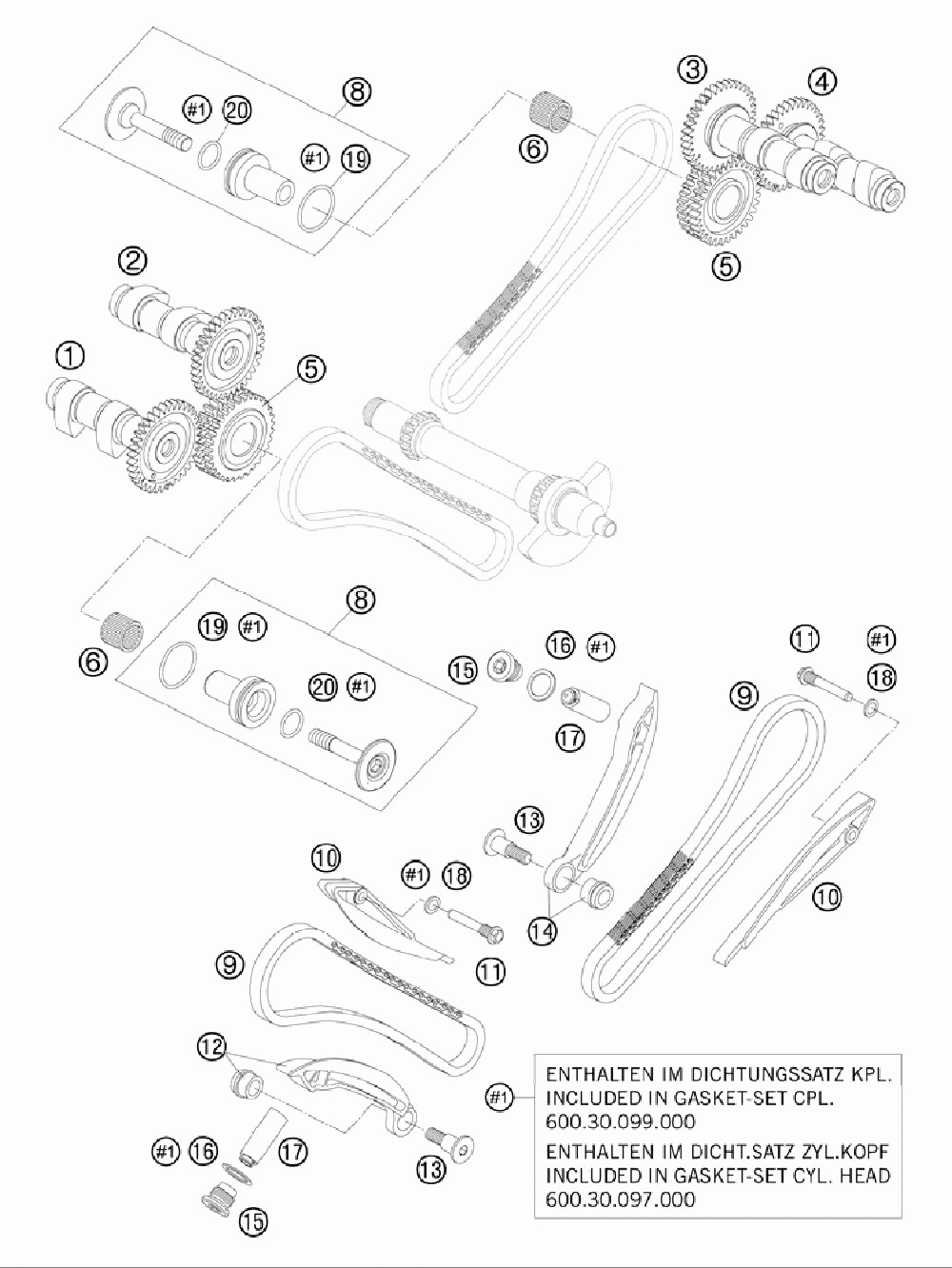

Газо-распределительный механизм

KTM 990 ADVENTURE ENGINE

Газо-распределительный механизм

#

oem код

название

цена

1*

Camshaft Outlet Front

Camshaft Outlet Front

2*

Camshaft Intake Front

Camshaft Intake Front

3*

Camshaft Intake Rear

Camshaft Intake Rear

4*

Camshaft Outlet Rear

Camshaft Outlet Rear

5

Timing Gears 32-t Cpl. 03

Timing Gears 32-t Cpl. 03

8

Bearing Bolt

Bearing Bolt

9

Tooth Chain 88 Link 6, 35pitch

Tooth Chain 88 Link 6, 35pitch

10

Guide Rail 03

Guide Rail 03

11*

Special Screw M8x29 Ws=8

Special Screw M8x29 Ws=8

12

Tensioner Rail Cpl. Front 03

Tensioner Rail Cpl. Front 03

13*

Special Screw M8x29 Ws=6

Special Screw M8x29 Ws=6

14

Tensioner Rail Cpl. Rear 03

Tensioner Rail Cpl. Rear 03

15

Screw Plug M16x1, 5 03

Screw Plug M16x1, 5 03

16

Cu Seal-ring Din7603 16x20x1, 3

Cu Seal-ring Din7603 16x20x1, 3

17

Timing-ch.tens. Hydr.(75ym) 03

Timing-ch.tens. Hydr.(75ym) 03

18

Seal Ring Cu Din7603- 8x12x1

Seal Ring Cu Din7603- 8x12x1

19

O-ring 29x2 Viton

O-ring 29x2 Viton

20

O-ring 16, 00x2, 00 Viton

O-ring 16, 00x2, 00 Viton

6

Needle Bearing K18/24/20

Needle Bearing K18/24/20
