Цилиндр,головка цилиндров Оригинальные запчасти для мотоциклов KTM 250 XC USA ENGINE (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

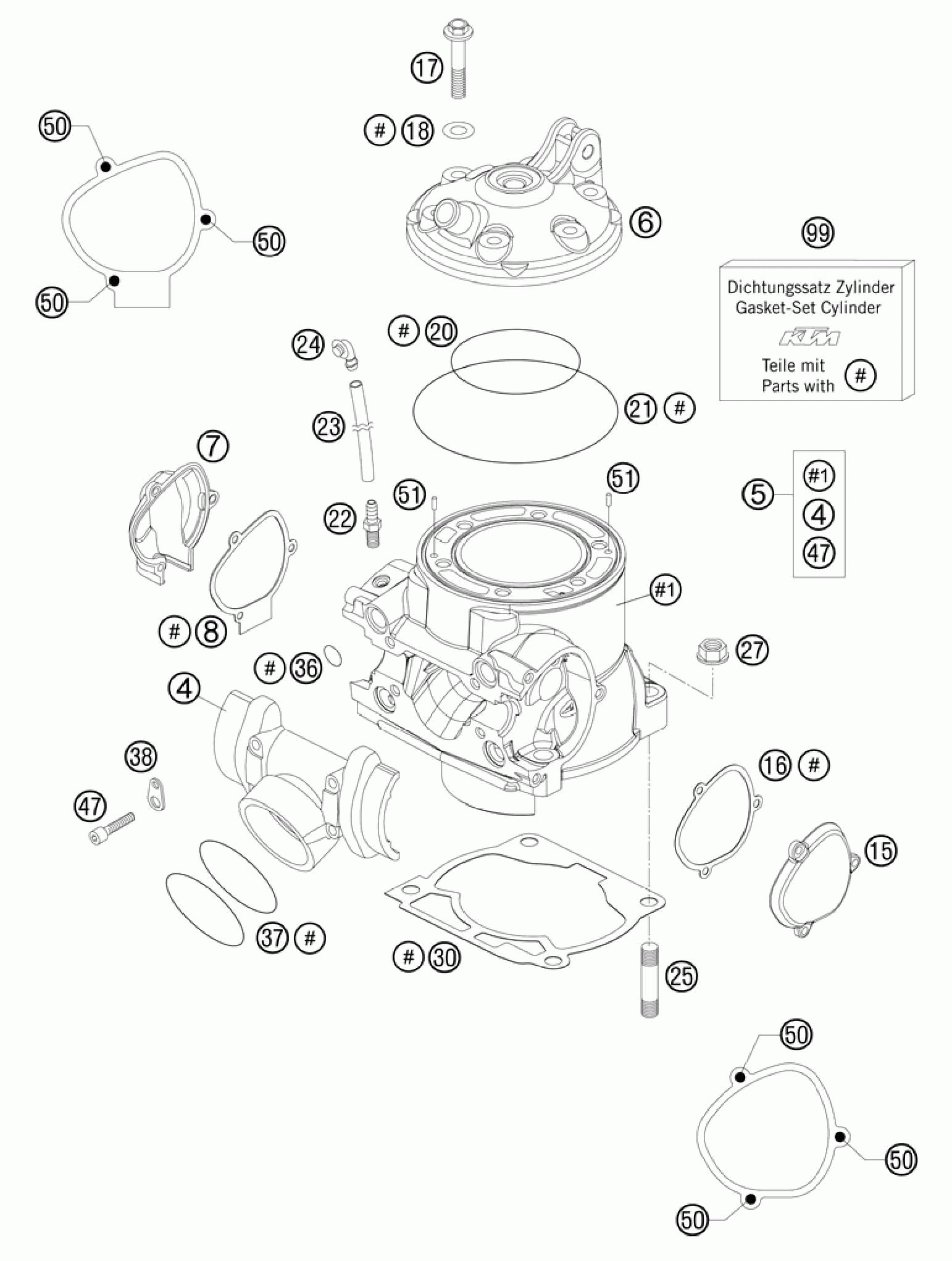

Цилиндр,головка цилиндров

KTM 250 XC USA ENGINE

Цилиндр,головка цилиндров

#

oem код

название

цена

4

Intermediate Flange 250/300 07

Intermediate Flange 250/300 07

5

Cylinder Cpl. W. Flange 250 07

Cylinder Cpl. W. Flange 250 07

6

Cylinder Head 250 Ccm

Cylinder Head 250 Ccm

7

Control Cover R/s 07

Control Cover R/s 07

8

Gasket For Control Cover R/s

Gasket For Control Cover R/s

15

Control Cover L/s 07

Control Cover L/s 07

16

Gasket For Control Cover L/s

Gasket For Control Cover L/s

17

Collar Screw M 8x35 Ws=13

Collar Screw M 8x35 Ws=13

18

Cu-seal Ring 8 X 16 X 1

Cu-seal Ring 8 X 16 X 1

20

O-ring 73, 00x2, 00 Viton

O-ring 73, 00x2, 00 Viton

21

O-ring 105, 00x2, 00 07

O-ring 105, 00x2, 00 07

22

Vacuum Connection M 6x1

Vacuum Connection M 6x1

24

Angle Piece '97

Angle Piece '97

25

Stud Din0835-m10x35

Stud Din0835-m10x35

27

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

36

O-ring 11, 3 X2, 4 Silicon

O-ring 11, 3 X2, 4 Silicon

37

O-ring 44, 00x3, 00 Viton

O-ring 44, 00x3, 00 Viton

38

Retaining Plate

Retaining Plate

47

Ah Screw Din0912-m 6x30

Ah Screw Din0912-m 6x30

50

Винт M5x14

Винт M5x14

51

Needle Rol.din5402 Nrb 4x9, 8

Needle Rol.din5402 Nrb 4x9, 8
