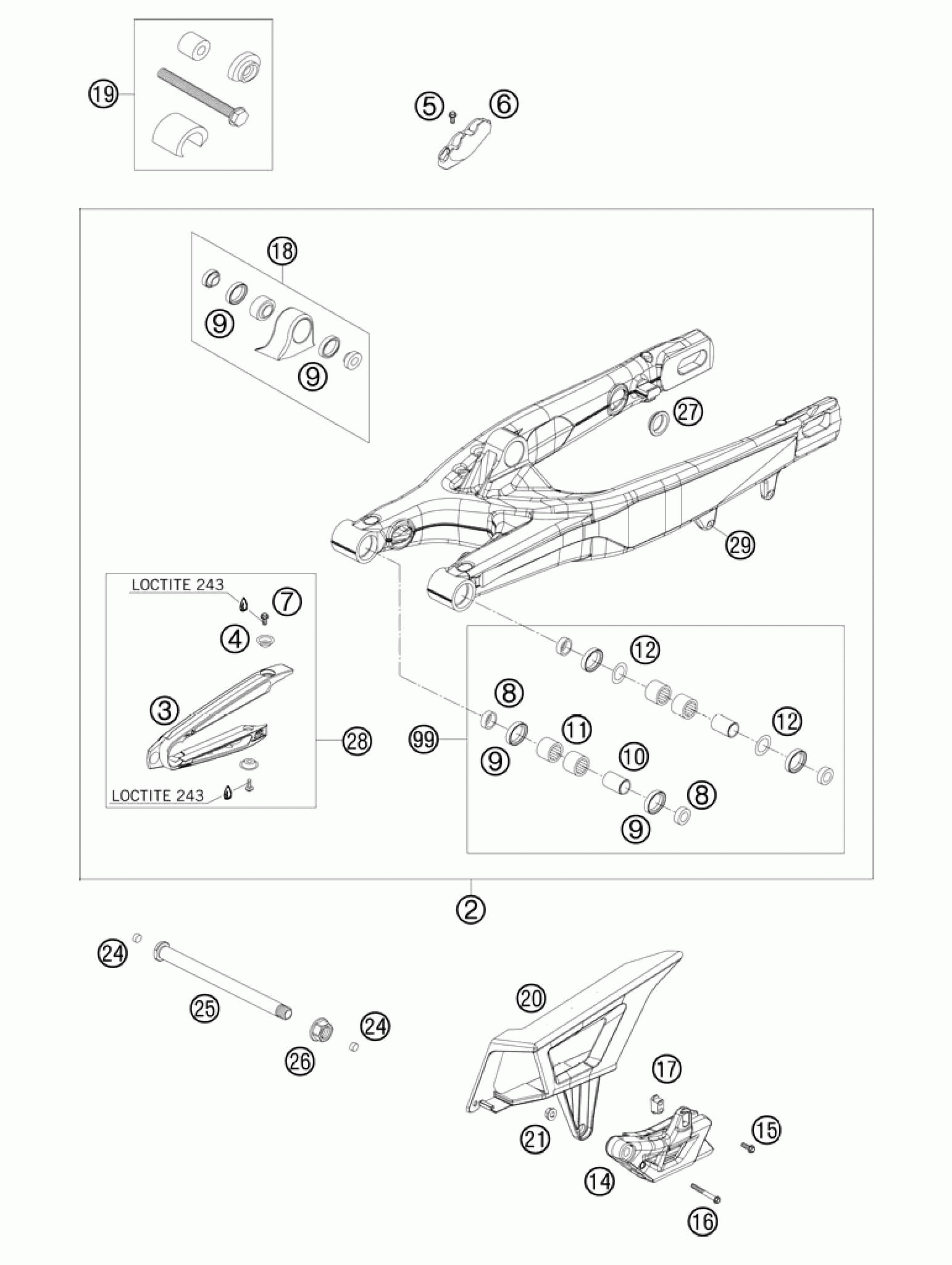

Бугель

KTM 450 EXC-R USA CHASSIS
KTM
#oem кодцена
2
78004030144
Swing Arm Cpl. 08
3
77304066000
Chain Sliding Protection
4
77304066050
Bushing F. Chain Sliding Pr.07
5
0009050103
Special Screw M 5, 0x10
6
77313047000
Brake Hose Guide Lower 07
7
0025060106
Hh Collar Screw M6x10 Tx30
8
54804034000
Bucket F. Shaft Seal Ring 03
9
0760253270
Shaft Seal Ring 25x32x7
10
59404032000
Bearing Sleeve 17x22x38, 7 03
11
59004031100
Needle Bearing Hk2212v
12
54603036000
Stop Disk 22, 2x31, 7x1
14
78004070000
Chain Guide Cpl.
15
0025060166
Винт м6х16
16
0025060506
Hh Collar Screw M6x50 Tx30
17
77304070030
Insertion Nut F. Chain Guide
18
50304090044
Pivot Bearing+bushes Pds '99
19
50329000044
Tool Bearing Mounting Pds
20
78004060000
Chain Guard 08
21
56509064100
Self Locking Nut M6 10.9
24
55009086000
Plug Sfl13
25
77304037000
Swingarm Bolt M16x1, 5 07
26
54804038000
Self Lock.nut M16x1, 5 Ws=19 03
27
58404041100
Closing Cover Round 03
28
77304066010
Chain Guard Cpl. 06
29
54603055051
Press In Nut M6 Steel Zinc
99
59404230110
Swingarm-repair Kit 05-07
11
59004031200
Needle Bush Hk2212v
14
78004070100
Chain Guide Cpl.
