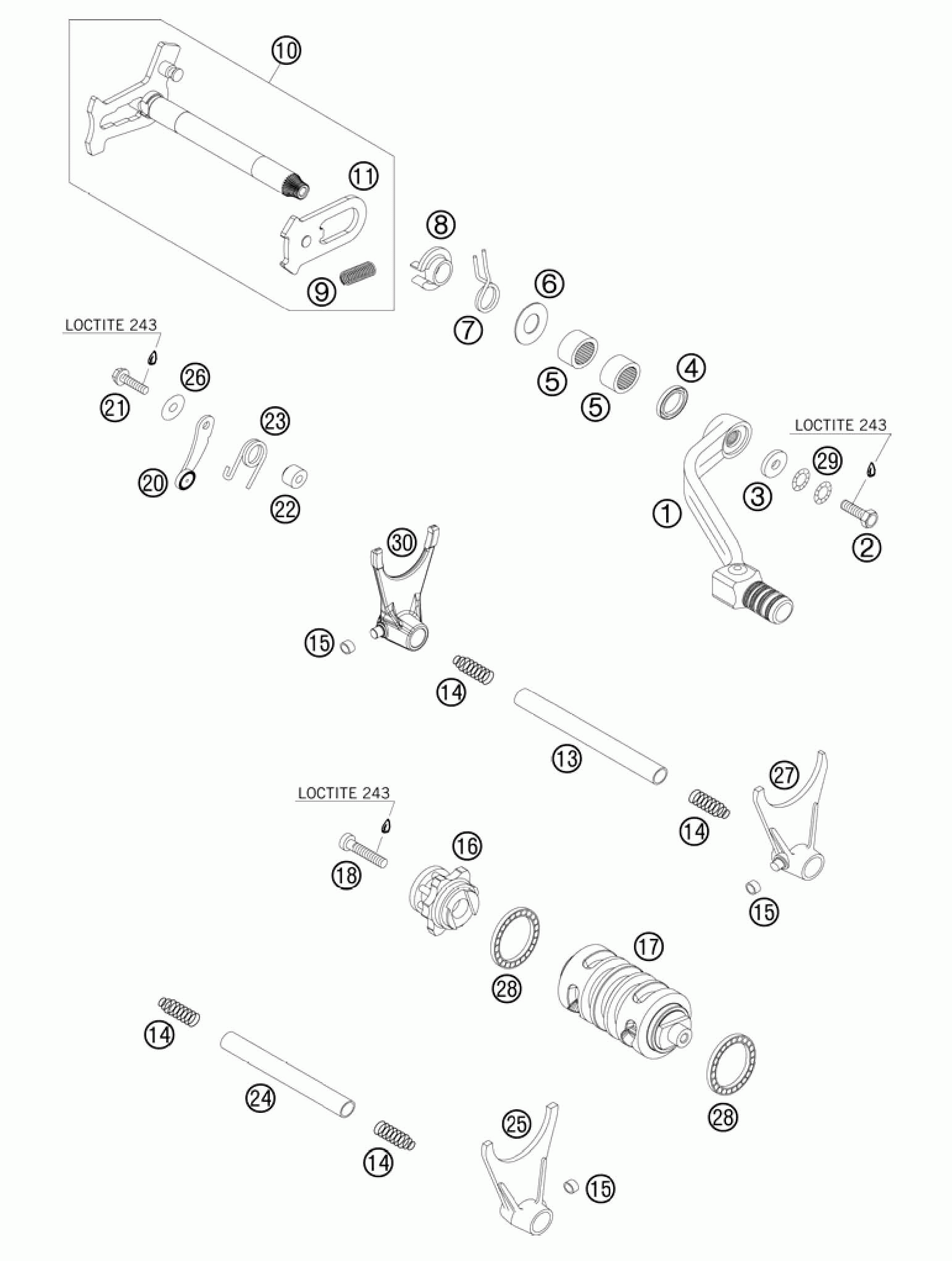

Механизм переключения

KTM 450 EXC-R USA ENGINE
KTM
#oem кодцена
1
59034031000
Shift Lever Cpl.racing 2000
2
59009062016
Special Screw M6x16 Ws=8 10.9
3
50232050001
Steel Washer 6, 4x17x3
4
0760142460
Shaft Seal Ring 14x24x6 B
5
54632095000
Needle Bear.hk 1412 14x20x12
6
54634050000
Stop Disk 14x30x1
7
54634014100
Return Spring 2, 2mm '95
8
54634020000
Spring Guide
9
56534013100
Tensioning Spring 0, 8mm
10
78034005044
Shift Shaft Cpl.
11
54634008044
Sliding Plate Cpl.
13
78034020000
Shift Rail 11, 8x101, 5
14
58038023200
Pressure Spring 0, 9mm
15
50334018100
Shifting Roller 6x8x5, 2
16
78034015144
Shift Drum Locating Alu Cpl.
17
78034012000
Shift Roller
18
0984060302
Ah Screw Din6912 M 6x30
20
77034024044
Locking Lever Cpl. 08
21
0015050203
Hh Collar Screw M 5x20 Ws=8
22
54634052300
Sleeve For Locking Lever
23
60034023000
Arresting Lever Spring 03
24
78034019000
Shift Rail 11, 8x85
25
59034001000
Shift Fork 5./6.gear 2000
26
0349000050
Washer Din7349-5x15x2
27
59034002000
Shift Fork 2./4.gear 2000
28
0625618050
Ball Bearing 61805 C3
29
50233041000
Pair Of Washers M 6 Nordlock
30
78034003000
Shifting Fork 1st/3rd Gear
