Сцепление Оригинальные запчасти для мотоциклов KTM 300 XC ENGINE (2006)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

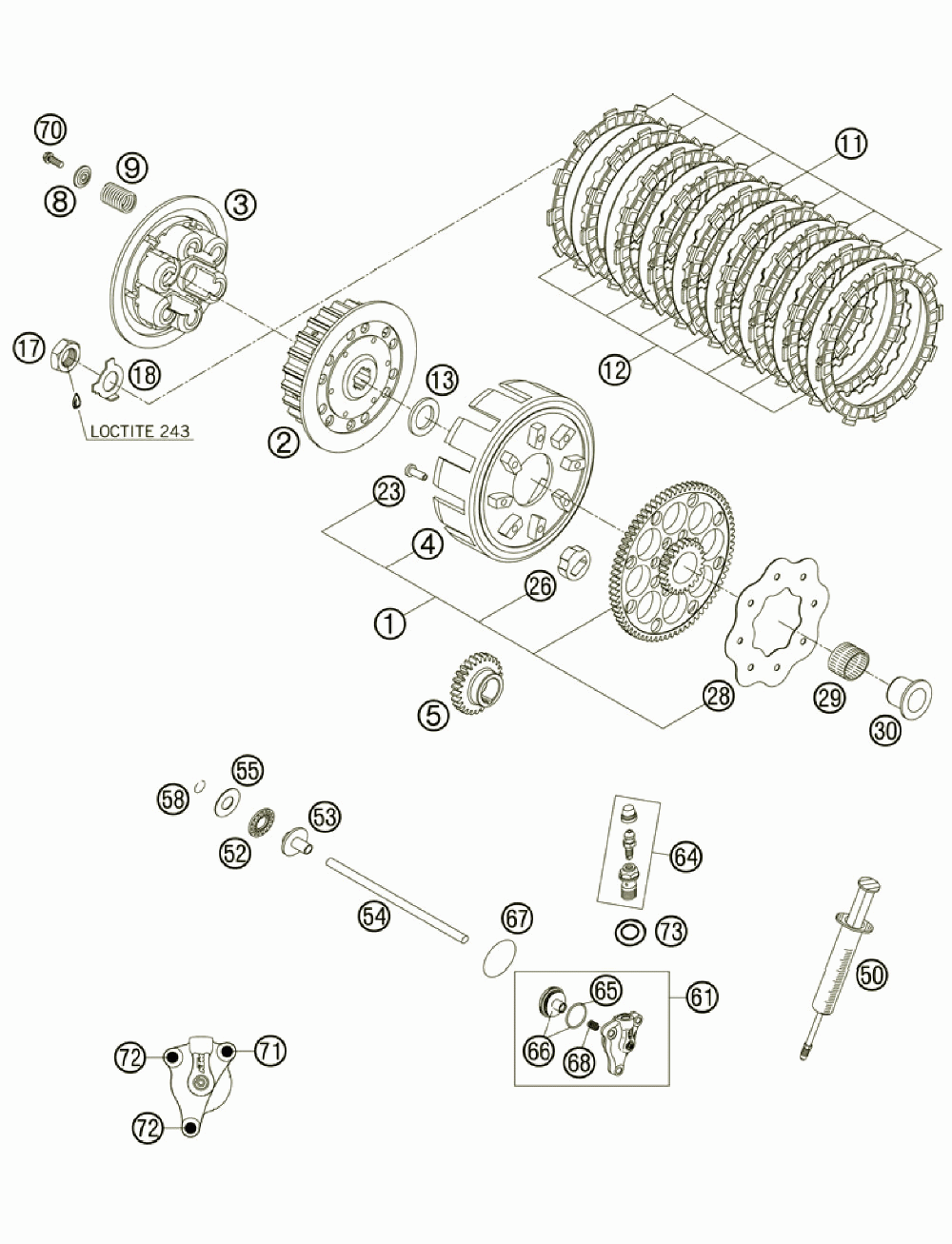

Сцепление

KTM 300 XC ENGINE

Сцепление

#

oem код

название

цена

1

Outer Clutch Hub 72-t Cpl. 03

Outer Clutch Hub 72-t Cpl. 03

2

Inner Clutch Hub 546/548 2003

Inner Clutch Hub 546/548 2003

3

Pressure Cap 250-380 '98

Pressure Cap 250-380 '98

4

Outer Clutch Hub Loose 2003

Outer Clutch Hub Loose 2003

5

Primary Gear 26t 2003

Primary Gear 26t 2003

8

Spring Retainer 6, 2 X 20 X 3, 2

Spring Retainer 6, 2 X 20 X 3, 2

9

Clutch Spring 2, 5x43 8, 75t

Clutch Spring 2, 5x43 8, 75t

11

Lining Disc Fcc 04

Lining Disc Fcc 04

12

Стальной Диск

Стальной Диск

13

Supportwasher 22, 2x35x3 Harde.

Supportwasher 22, 2x35x3 Harde.

17

Hexagon Nut Din0936-m18x1, 5 R.

Hexagon Nut Din0936-m18x1, 5 R.

18

Гровер

Гровер

23

Clutch Rivet Din7338- 6x15

Clutch Rivet Din7338- 6x15

26

Damping Element

Damping Element

28

Retaining Plate

Retaining Plate

29

Needle Bearing K26x30x22zw.kse

Needle Bearing K26x30x22zw.kse

30

Inner Ring With Collar

Inner Ring With Collar

50

Vent Injektion Hydr. Clutch

Vent Injektion Hydr. Clutch

52

Axial Needle Bearing Axk 1226

Axial Needle Bearing Axk 1226

53

Pressure Piece 125-380 '98

Pressure Piece 125-380 '98

54

Push Rod 250 2003

Push Rod 250 2003

55

Axial Washer As1226 12x26x1

Axial Washer As1226 12x26x1

58

Circlip Din7993-rw12

Circlip Din7993-rw12

61

Output Cylinder Cpl. 06

Output Cylinder Cpl. 06

64

Штуцер

Штуцер

65

Кольцо уплотнительное

Кольцо уплотнительное

66

Piston Cpl.

Piston Cpl.

67

O-ring 30, 00x1, 50 Nbr 70

O-ring 30, 00x1, 50 Nbr 70

68

Pressure Spring

Pressure Spring

70

Hh Collar Screw M 6x16 Ws=8

Hh Collar Screw M 6x16 Ws=8

71

Hh Collar Screw M 6x35 Ws=8

Hh Collar Screw M 6x35 Ws=8

72

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

73

Cu-seal Ring Din7603-10x16x1

Cu-seal Ring Din7603-10x16x1
