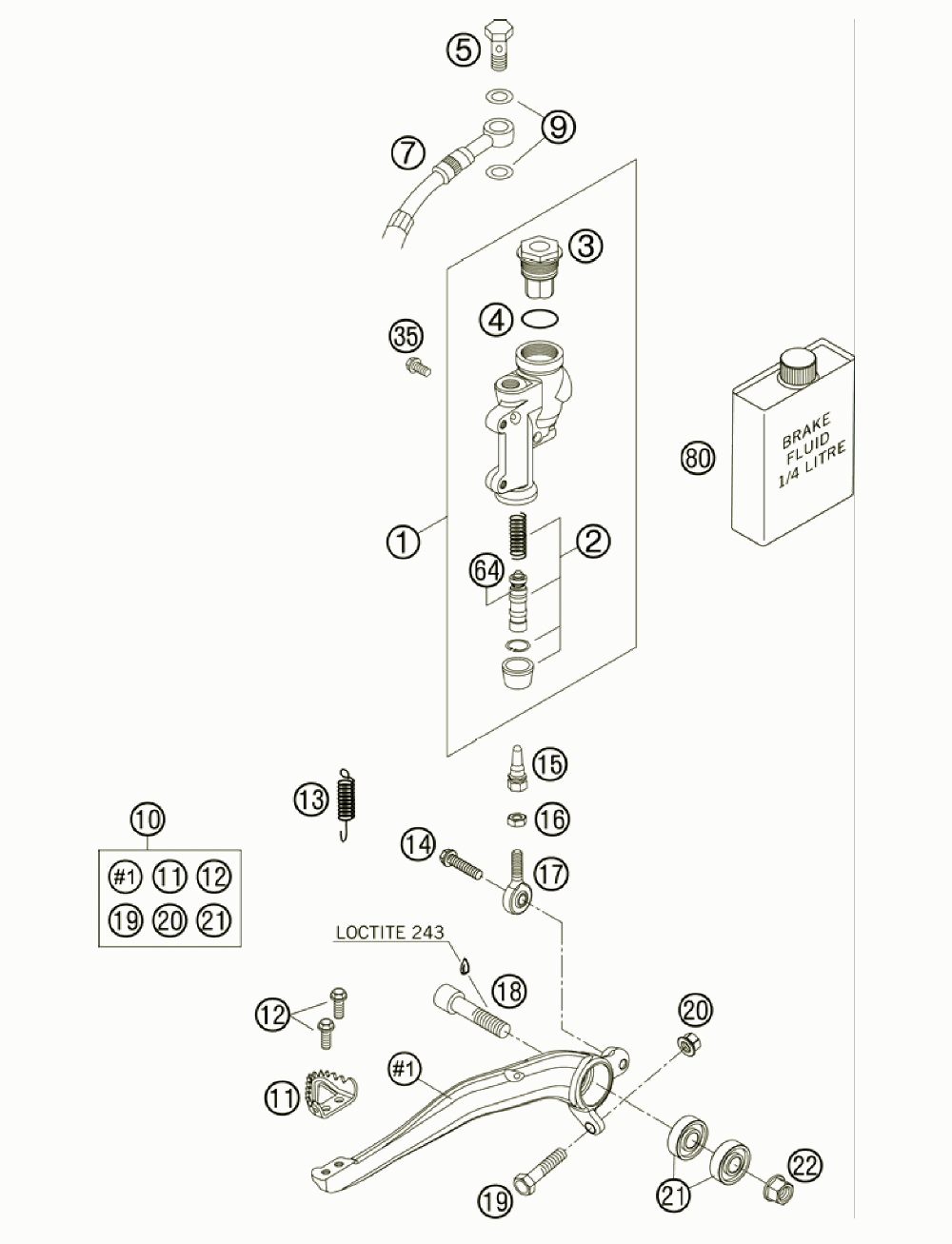

Тормозной цилиндр задний

KTM 300 XC-W USA CHASSIS
KTM
#oem кодцена
1
54813060100
Rear Brake Cylinder Cpl. 2004
2
54813061200
Repair Kit Piston 13mm 06
3
54813062100
Rear Brake Cyl. Cover Cpl. 04
4
54813063000
Foot-brake Cyl. Gasket Sx 03
5
54813020100
Hollow Screw Black M10x1x19
7
54813070000
Brake Hose Rear 655mm 03
9
42013226000
Cu-seal Ring Din7603-10x16x1
10
54813050044
Foot Brake Lever Cpl. 03
11
54813051000
Step Plate For Brake Lever
12
0015050123
Hh Collar Screw M 5x12 Ws=8
13
54603062000
Return Spring For Brake Lever
14
0015060203
Hh Collar Screw M 6x20 Ws=8
15
54813056000
Push Rod L=28mm 03
16
0934060003
Hexagon Nut Din0934-m 6
17
54813055000
Swivel Head Ka6 03
18
0912100406
Ah Screw Din6912 M10x40 10.9
19
59001037000
Special Screw M8x26 Ws=10
20
46030045000
Collar Nut M8 Ws=10
21
0625060002
Ball Bearing Skf 6000-2rs1
22
54630044000
Collar Nut M10 Ws=13
35
0015060123
Hh Collar Screw M 6x12 Ws=8
64
54813064200
Bellows For Repair Kit 06
