Цилиндр

KTM 300 XC-W USA ENGINE

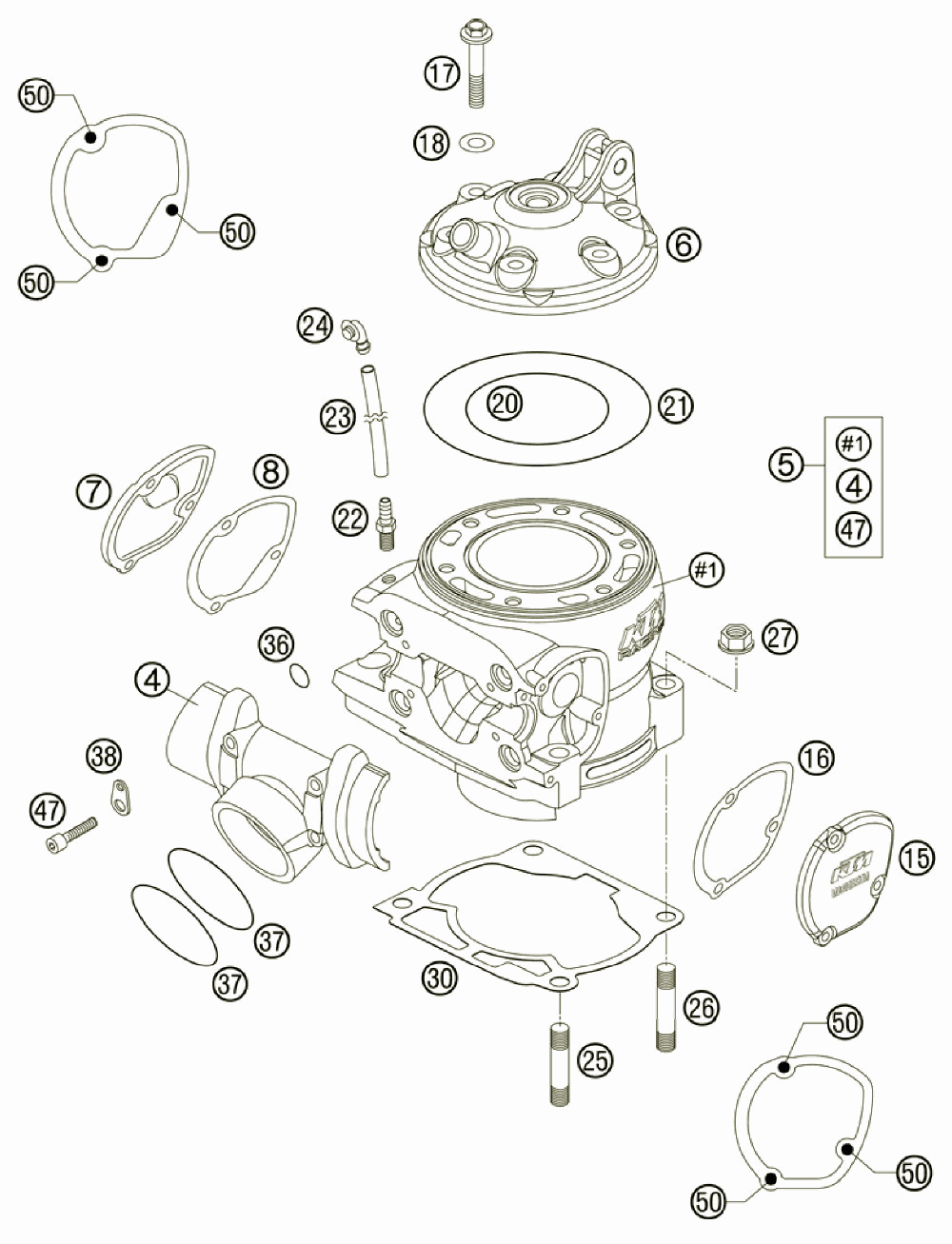

Цилиндр

#

oem код

название

цена

4

Intermediate Flange 250/300

Intermediate Flange 250/300

5

Cylinder Cpl. W. Flange 300 04

Cylinder Cpl. W. Flange 300 04

6

Cylinder Head 300 "3003" 04

Cylinder Head 300 "3003" 04

7

Control Cover R/s 2001

Control Cover R/s 2001

8

Gasket For Control Cover R/s

Gasket For Control Cover R/s

15

Control Cover L/s 2001

Control Cover L/s 2001

16

Gasket For Control Cover L/s

Gasket For Control Cover L/s

17

Collar Screw M 8x35 Ws=13

Collar Screw M 8x35 Ws=13

18

Cu-seal Ring 8 X 16 X 1

Cu-seal Ring 8 X 16 X 1

20

O-ring 80, 00x2, 00 Viton

O-ring 80, 00x2, 00 Viton

21

O-ring 114, 00x2, 00 Silicone

O-ring 114, 00x2, 00 Silicone

22

Vacuum Connection M 6x1

Vacuum Connection M 6x1

24

Angle Piece '97

Angle Piece '97

25

Stud Din0835-m10x35

Stud Din0835-m10x35

26

Stud Din0835-m10x40

Stud Din0835-m10x40

27

Collar Nut M10 Ws=13

Collar Nut M10 Ws=13

36

O-ring 11, 3 X2, 4 Silicon

O-ring 11, 3 X2, 4 Silicon

37

O-ring 44, 00x3, 00 Viton

O-ring 44, 00x3, 00 Viton

38

Retaining Plate

Retaining Plate

47

Ah Screw Din0912-m 6x30

Ah Screw Din0912-m 6x30

50

Hh Collar Screw M 5x12 Ws=6

Hh Collar Screw M 5x12 Ws=6
