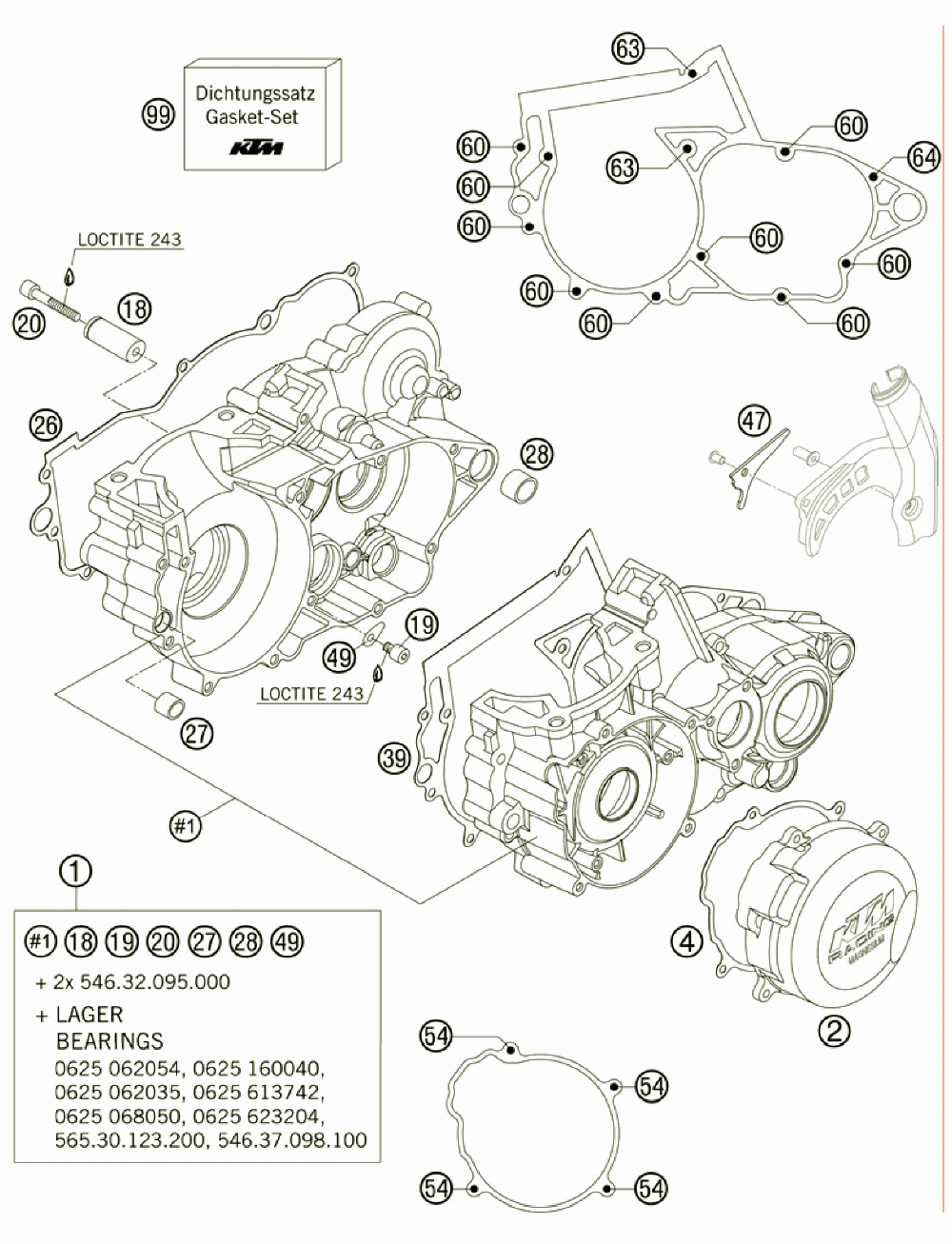

Картер двигателя

KTM 300 XC-W USA ENGINE

Картер двигателя

#

oem код

название

цена

1

Engine Case Cpl. With Bear. 08

Engine Case Cpl. With Bear. 08

2

Ignition Cover Grey

Ignition Cover Grey

4

Igniti.cover Gasket 250/300 03

Igniti.cover Gasket 250/300 03

18

Bushing Pin 2000

Bushing Pin 2000

19

Ah Screw Din0912-m 6x 8

Ah Screw Din0912-m 6x 8

20

Ah Screw Din0912-m 6x40 A2

Ah Screw Din0912-m 6x40 A2

26

Clutch Cover Gasket 2003

Clutch Cover Gasket 2003

27

Dowel Bushing 13, 8x11x12

Dowel Bushing 13, 8x11x12

28

Dowel 21x12 03

Dowel 21x12 03

39

Engine Case Gasket 2003

Engine Case Gasket 2003

47

Chain Fail. Protection 06

Chain Fail. Protection 06

49

Retaining Plate

Retaining Plate

54

Hh Collar Screw M 5x16 Ws=6

Hh Collar Screw M 5x16 Ws=6

60

Hh Collar Screw M 6x40 Ws=8

Hh Collar Screw M 6x40 Ws=8

63

Hh Collar Screw M 6x55 Ws=8

Hh Collar Screw M 6x55 Ws=8

64

Hh Collar Screw M 6x60 Ws=8

Hh Collar Screw M 6x60 Ws=8

99

Gasket Set 250/300 2003

Gasket Set 250/300 2003

60

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30
