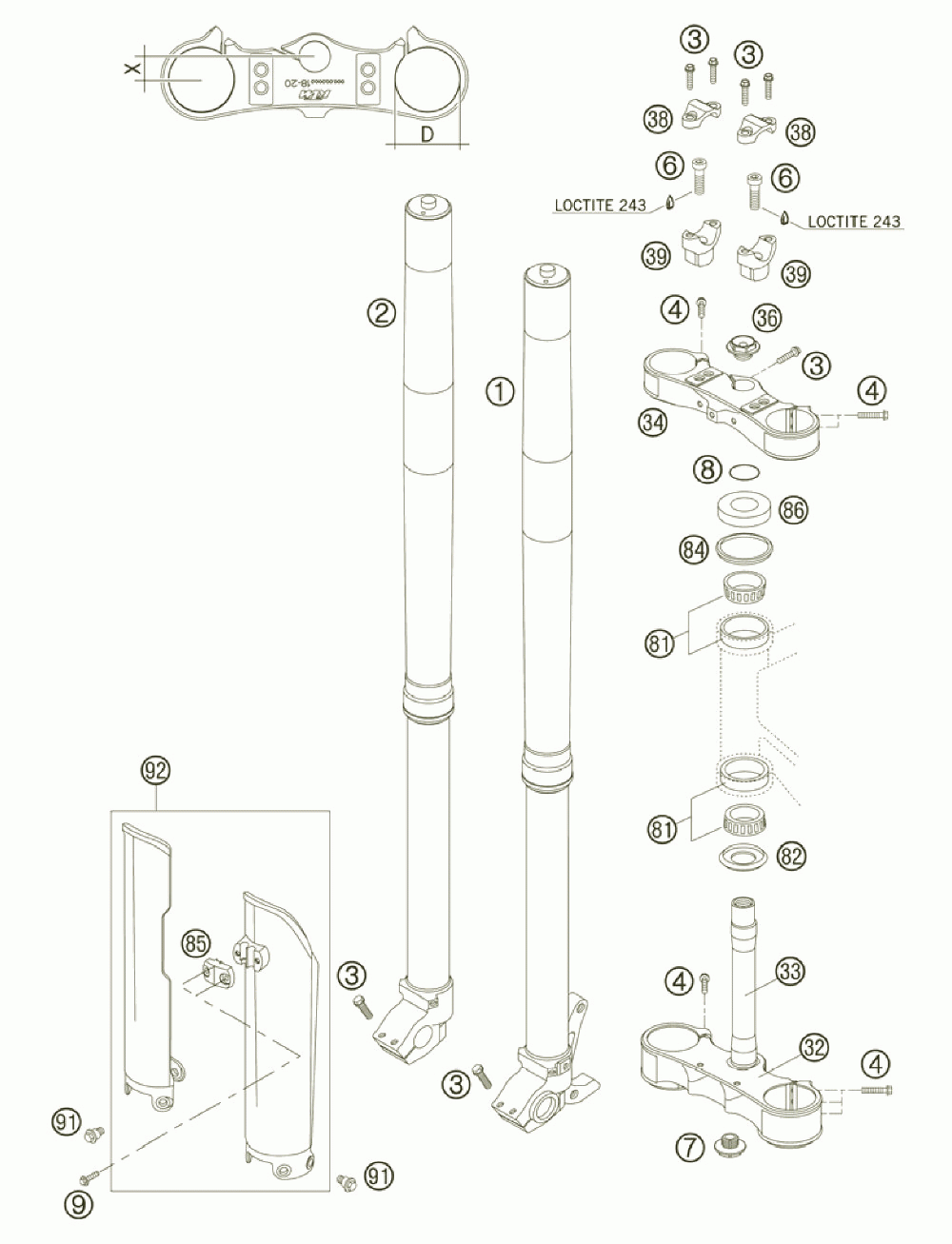

Telescopic fork

KTM 450 XC-G RACING USA CHASSIS
KTM
#oem кодцена
1
14187B29LS
Fork Leg L/s Wp48 450 Xc 06
2
14187B29RS
Fork Leg R/s Wp48 450 Xc 06
3
0015080256S
Hh Collar Screw M8x25 Ws=10 06
4
0015080353
Hh Collar Screw M 8x35 Ws=10
6
0912100356
Ah Screw Din6912-m10x35 10.9
7
54801036100
Ste.head Scr. M20x1, 5 Ws=27 Sl
8
0770025035
O-ring 25x3, 55 Nbr70 05
9
0017060204
Ejot Pt Screw K60x20 Alu Ws=6
32
59401031019
Bottom Triple Clamp D=60mm 05
33
59401033000
Fork Tube L=237mm 05
34
59401034019
Top Triple Clamp D=54mm 05
36
54801036000
Рукоятка винта M20x1, 5
38
59401038000
Handlebar Clamp 28mm 05
39
59401039037
Handleb.supp. D=28mm H=37mm 05
81
54201081100
Tapered Roller Bearing Cpl. 06
82
54601084200
O-ring Support W. Sealing Lip
84
54601184000
Stearing Head Gasket Top
85
5900108510004
Clamp F.speed.cable Orange 06
86
54201086000
Steering Head Cover
91
59001092050
винт M6x12, 5 Вт = 8
92
5900109400004
Fork Prot. L/s +r/s Org 02
82
54601084100
O-ring Support W. Sealing Lip
