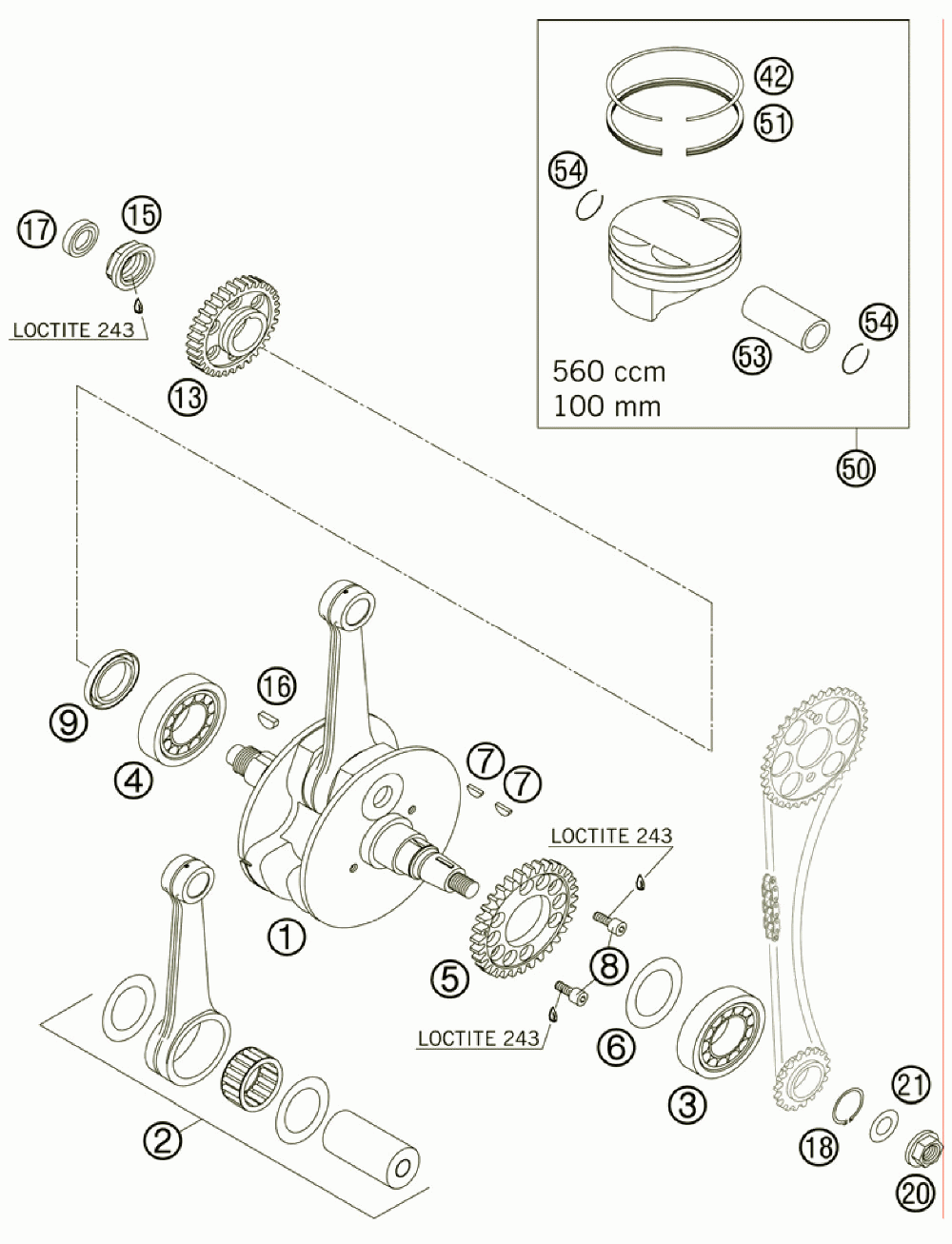

Коленвал и поршень

KTM 560 SMR

Коленвал и поршень

#

oem код

название

цена

1

Crankshaft 560 Smr 2006

Crankshaft 560 Smr 2006

3

Ball Bearing Tmb 206 Jr2 C3

Ball Bearing Tmb 206 Jr2 C3

4

Cyl.rollbear.nj206ecp/c3hvc058

Cyl.rollbear.nj206ecp/c3hvc058

5

Drive Gear 32-t F.balanc.shaft

Drive Gear 32-t F.balanc.shaft

7

Шпонка 3x5x13

Шпонка 3x5x13

8

Ah Screw Din7984-m 6x16

Ah Screw Din7984-m 6x16

9

Sh.seal Ring 30x47x7 Bsl Viton

Sh.seal Ring 30x47x7 Bsl Viton

13

Primary Gear 33-t

Primary Gear 33-t

15

Hh Nur M20x1, 5 Ws=27 Left

Hh Nur M20x1, 5 Ws=27 Left

16

Шпонка 5x6

Шпонка 5x6

17

Shaft Seal Ring 14x24x6 B

Shaft Seal Ring 14x24x6 B

18

Circlip Din0471-25x1, 2

Circlip Din0471-25x1, 2

20

Гайка M12x1

Гайка M12x1

21

Spring Washer Din0137-b12

Spring Washer Din0137-b12

42

Rectangular Ring 100x1, 25

Rectangular Ring 100x1, 25

50

Piston 100mm Cpl.

Piston 100mm Cpl.

50

Piston 100mm Cpl.

Piston 100mm Cpl.

51

Oil Scraper Ring D=100mm

Oil Scraper Ring D=100mm

53

Piston Pin Bolt 20x15, 8/12x50

Piston Pin Bolt 20x15, 8/12x50

54

Circlip C20x1, 5

Circlip C20x1, 5
