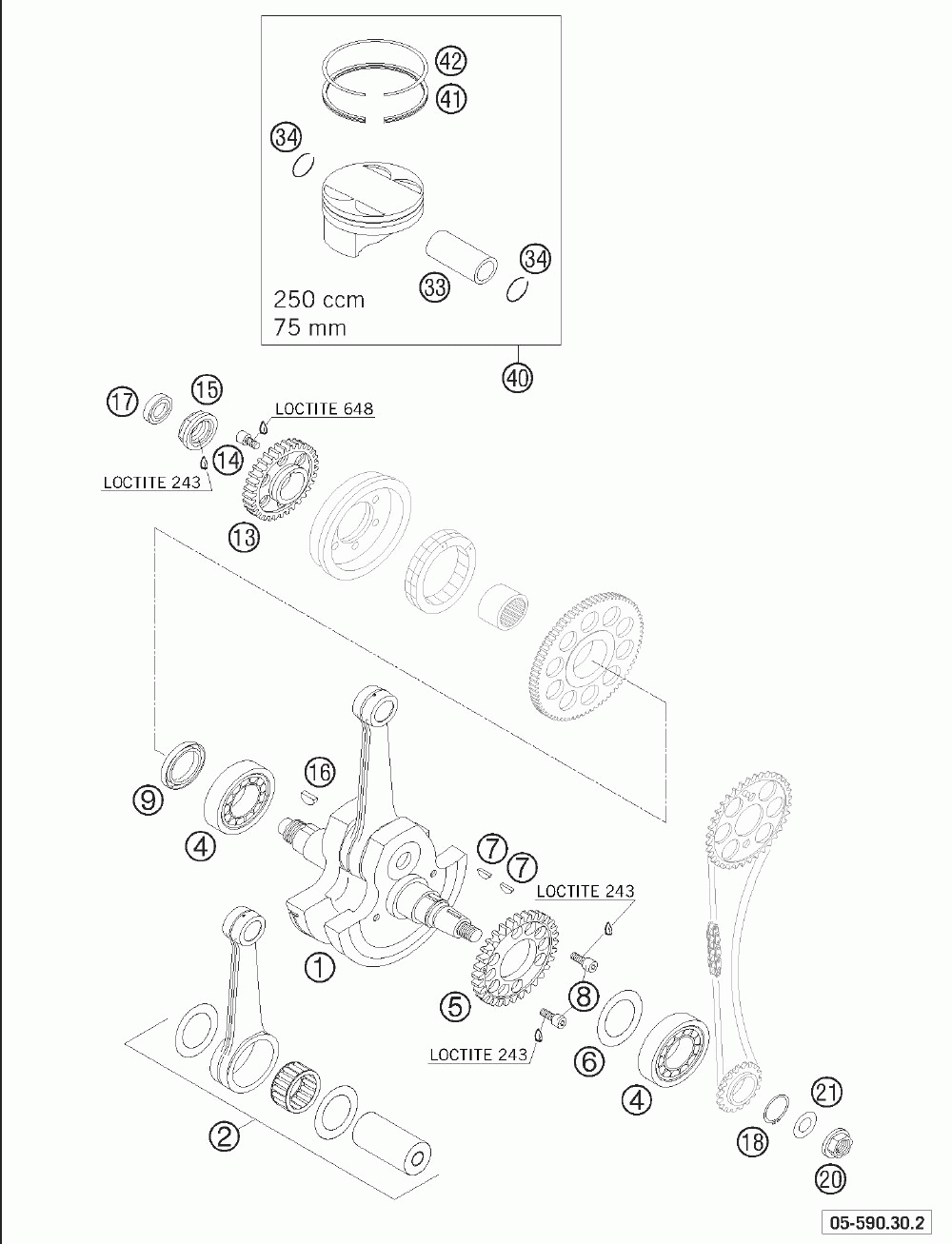

Crankshaft · piston 250 exc / 2005

KTM 250/400/450/525 EXC RACING

Crankshaft · piston 250 exc / 2005

#

oem код

название

цена

1

Crankshaft Cpl.250 Rac. 2002

Crankshaft Cpl.250 Rac. 2002

2

Con.rod Rep.set 250/520 Rac.00

Con.rod Rep.set 250/520 Rac.00

4

Подшипник

Подшипник

5

Drive Gear 32-t F.balanc.shaft

Drive Gear 32-t F.balanc.shaft

7

Шпонка 3x5x13

Шпонка 3x5x13

8

Ah Screw Din7984-m 6x16

Ah Screw Din7984-m 6x16

9

Sh.seal Ring 30x47x7 Bsl Viton

Sh.seal Ring 30x47x7 Bsl Viton

13

Primary Gear 33-t

Primary Gear 33-t

14

винт 0912-м 6х10 10.9

винт 0912-м 6х10 10.9

15

Hh Nur M20x1, 5 Ws=27 Left

Hh Nur M20x1, 5 Ws=27 Left

16

Шпонка 5x6

Шпонка 5x6

17

Shaft Seal Ring 14x24x6 B

Shaft Seal Ring 14x24x6 B

18

Circlip Din0471-25x1, 2

Circlip Din0471-25x1, 2

20

Гайка M12x1

Гайка M12x1

21

Spring Washer Din0137-b12

Spring Washer Din0137-b12

33

Piston Pin Bolt 20x15, 8/12x50

Piston Pin Bolt 20x15, 8/12x50

34

Circlip C20x1, 5

Circlip C20x1, 5

40

Piston I Kpl. 250 Racing 2001

Piston I Kpl. 250 Racing 2001

40

Piston Ii Kpl. 250 Racing 2001

Piston Ii Kpl. 250 Racing 2001

41

Oil Scraper Ring 75mm

Oil Scraper Ring 75mm

42

Rectangular Ring 75/68, 7x1, 25

Rectangular Ring 75/68, 7x1, 25
