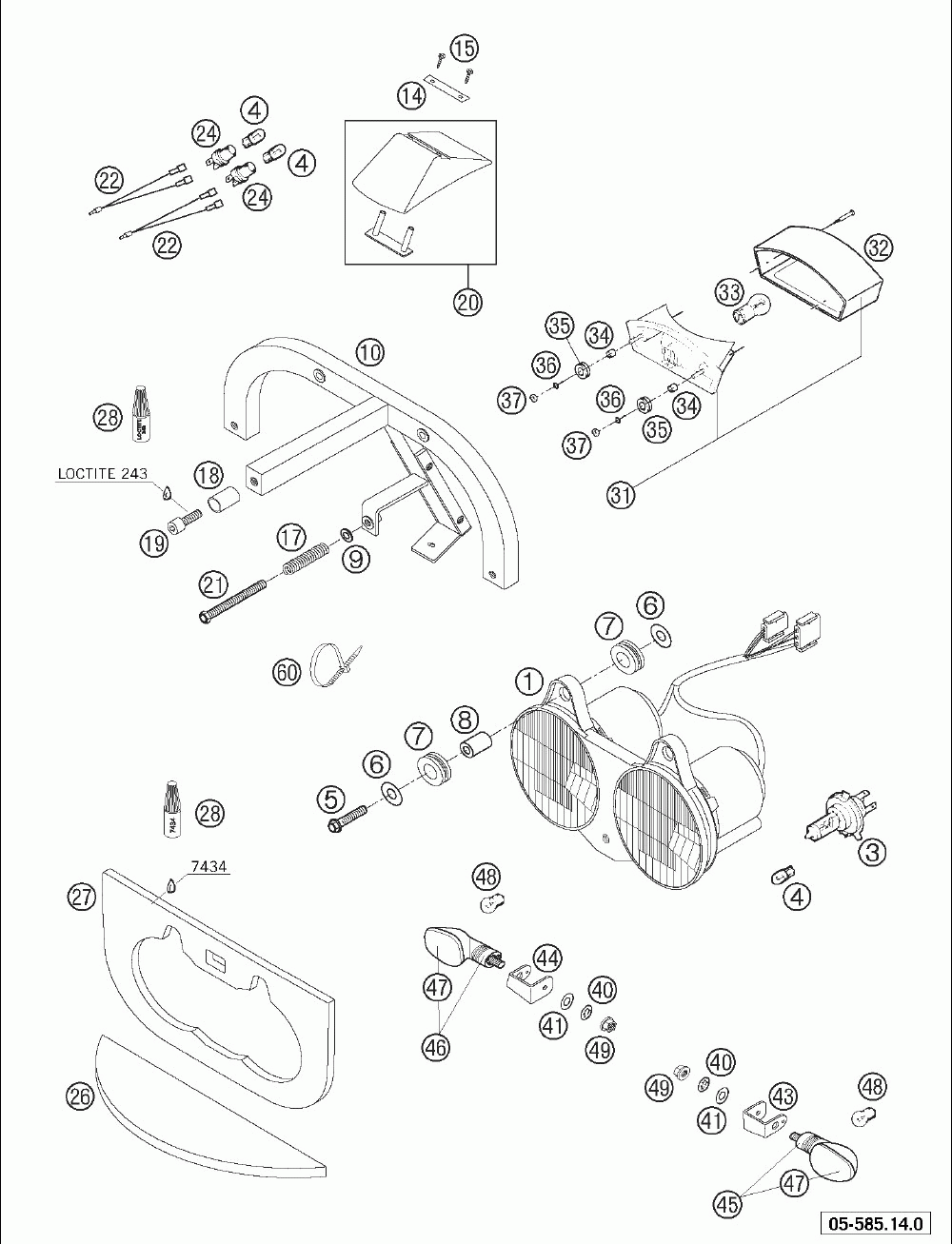

Head light · lights 450-660/2005

KTM 450 RALLYE
KTM
#oem кодцена
1
58414001000
Head Light Triom Cpl. '96
3
54611038012
Bulb Hs1 12v 35/35w White
4
49011435100
Светодиод 12v 5w (w2,1x9,5d)
5
0015060303
Hh Collar Screw M 6x30 Sw=8
6
0021060003
Washer Din9021-a 6, 4
7
41001052000
Rubber Sleeve D=12mm
8
56530060050
Spacer Bushing 6x12x20 Alu
10
58512091200
Carrier For Triom Head L. 2001
15
0981350133
Sheet Met.scr.din7981-3, 5x13
17
58311049007
Tensioning Spring 1 X 12 X 35
19
0738060301
Cou.sunk Scr. Ah Iso7380 M6x30
21
0933050603
Hh Screw Din0933-m 5x60
31
58311040000
Rear Light Cpl. Cev 358 '93
32
58311041000
Lens '93
33
58414042000
Bulb 12v 21/5w (bay15s)reinfo.
34
58011039000
Spacer Bushing 6, 5 X 8 X 7
35
31008060000
Rubber Sleeve D=8mm Open
37
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
40
0797100003
Lock Washer Din6797-j10, 5 Zi
41
0125100003
Washer Din0125-a10, 5
45
5841402500030
Flasher Cpl.front L/s Rear R/s
46
5841402600030
Flasher Cpl.front R/s Rear L/s
47
58414028000
Flasher Lens L/s & R/s '98
48
44111015100
Bulb 12v 10w (ba15s)
49
58414030000
Hh Collar Nut M10x1, 25 Ws=13
