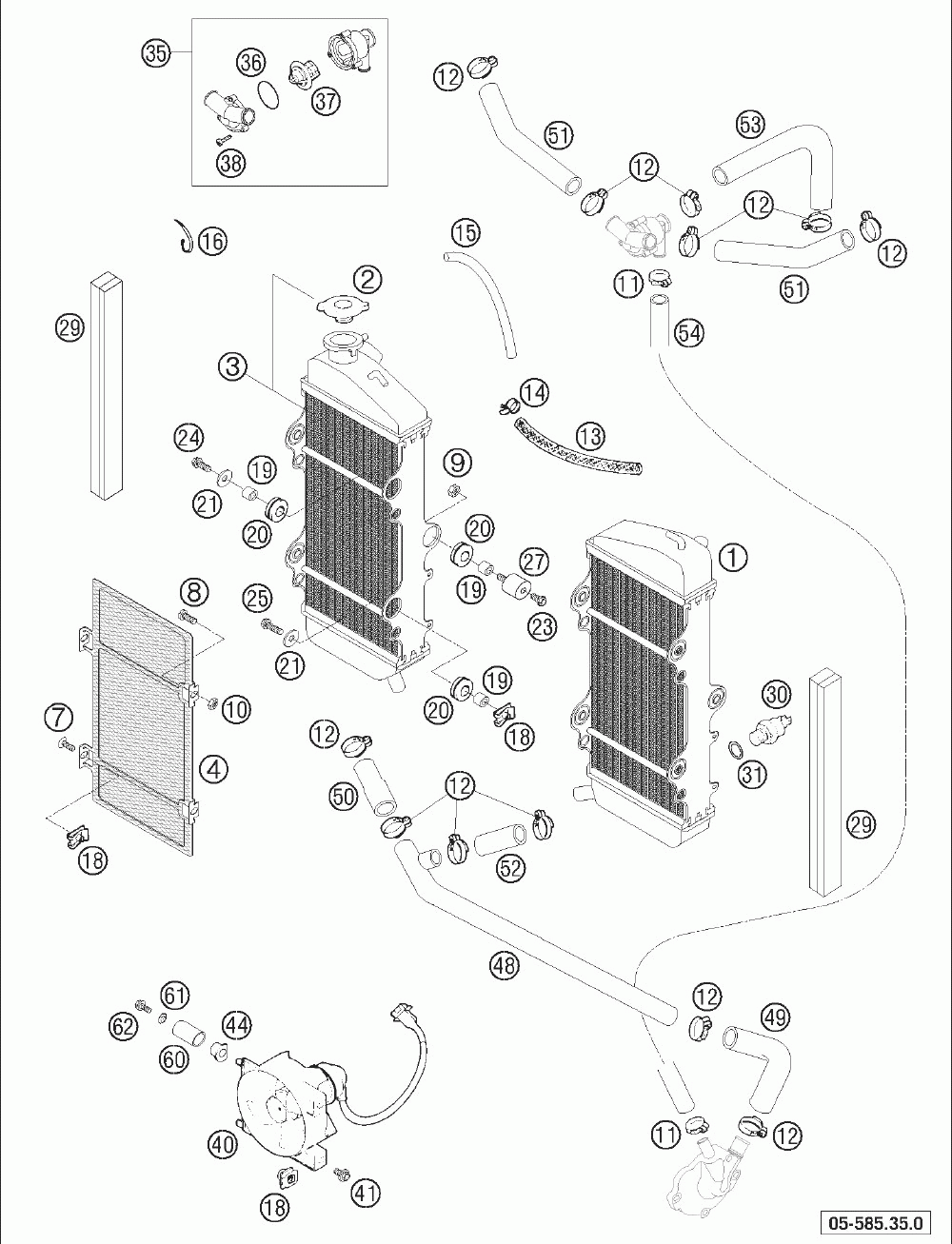

Cooling system 450/2005

KTM 450 RALLYE
KTM
#oem кодцена
2
58035016000
Radiator Cap Small 20, 3 Psi
7
0991060163
Flat Head Scr. Din7991-m 6x16
9
0985060003
Self Lock. Nut Din0985-m 6
10
0934060003
Hexagon Nut Din0934-m 6
11
58335099000
Hose Clamp Gemi 10-16
12
10001020000
Защим 16-27
14
58031005000
Хомут 12мм
18
50235033300
Snap-nut Holder M6 Kp142
20
41001052000
Rubber Sleeve D=12mm
21
0021060003
Washer Din9021-a 6, 4
23
0015060123
Hh Collar Screw M 6x12 Ws=8
24
0015060163
Hh Collar Screw M 6x16 Ws=8
25
0015060203
Hh Collar Screw M 6x20 Ws=8
27
43205062100
Rubber Grommet 20x15-m6x10 (1)
29
58107011000
Foam Rubber Strip
30
58035045000
Thermoswitch 80-85 Dg
31
0603142015
Alu Sealring Din7603-14x20x1, 5
36
0770320020
O-ring 32, 00x2, 00
37
54635017000
Thermostat 55 Degrees '94
38
0016040183
Screw For Plastic D=4x18
40
58535041044
Fan Cpl. With Housing L/s 05
41
0024060106
Hh Collar Screw M6x10 Tx30
44
44106018000
Plastic Cap
53
58535020002
Preformed H. 90curve 18x26 01
61
0797050003
Tooth Lock Wash. Din6797-j 5, 3
62
0015050123
Hh Collar Screw M 5x12 Ws=8
